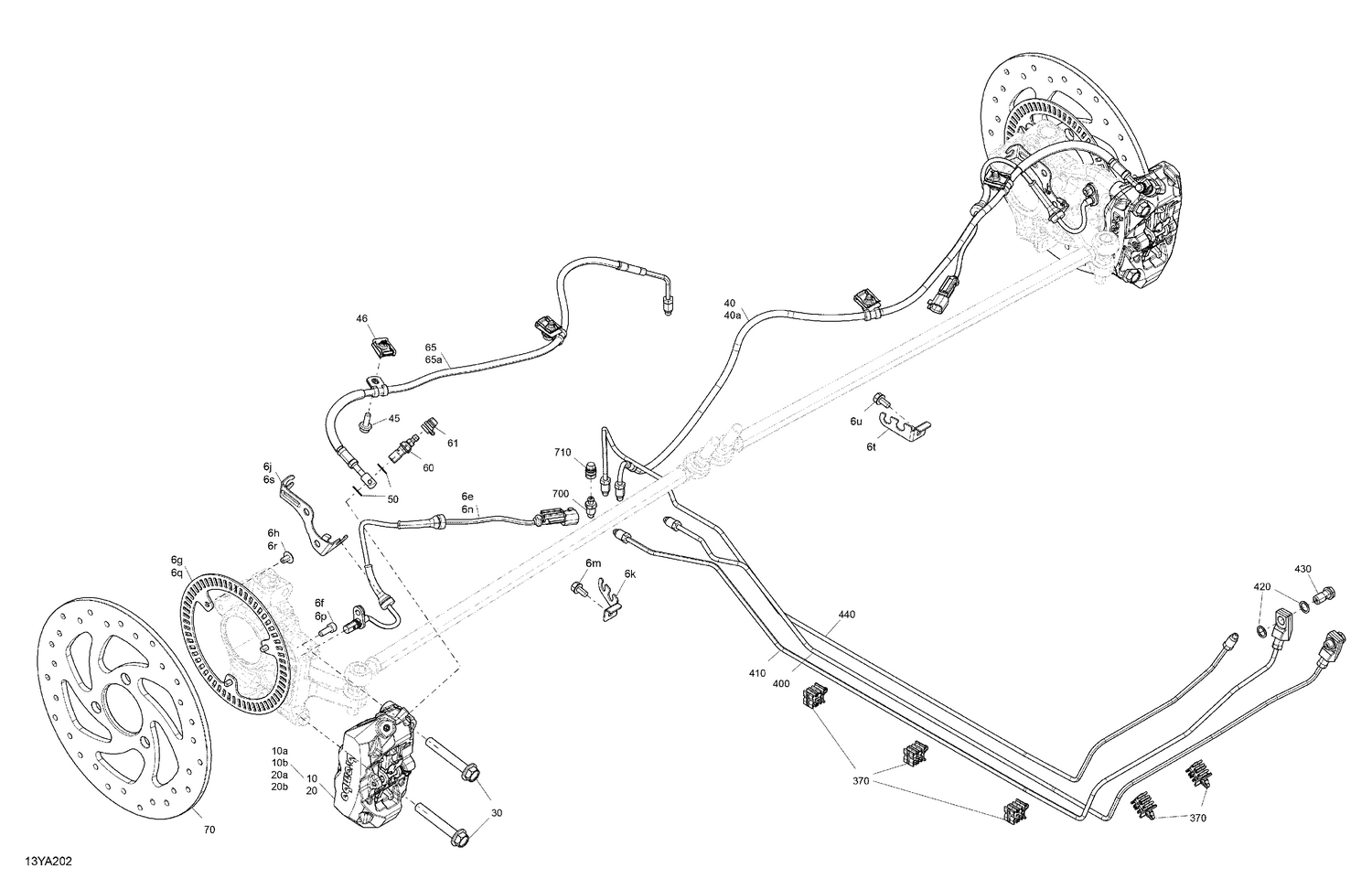

03- Mechanic - Front Brakes
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 6e | 710006981 | Speed Sensor |
| 6f | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 6g | 705601512 | Front Sensor Wheel |
| 6h | 250000995 | Torx-truss M/s M6 X 10 |
| 6j | 710004860 | LH Support Wire |
| 6k | 710003156 | Speed Sensor Holder |
| 6m | 210261250 | Hex. Flange Screw M6 X 12 |
| 6n | 710006981 | Speed Sensor |
| 6p | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 6q | 705601512 | Front Sensor Wheel |
| 6r | 250000995 | Torx-truss M/s M6 X 10 |
| 6s | 710004861 | RH Support Wire |
| 6t | 710003157 | Speed Sensor Holder |
| 6u | 210261250 | Hex. Flange Screw M6 X 12 |
| 10a | 219800237 | Brake Pad Kit |
| 10b | 219800238 | Spring/Pin/Clip Kit |
| 20a | 219800237 | Brake Pad Kit |
| 20b | 219800238 | Spring/Pin/Clip Kit |
| 30 | 207506556 | Hex Flange Screw M10 X 65 |
| 40a | 293650256 | Clamp |
| 45 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 46 | 250100208 | Panel Nut M6 X 1.0 |
| 50 | 414920600 | Washer |
| 60 | 705601201 | Banjo Bolt/ Bleeder |
| 61 | 705601190 | Bleeder Bolt Cap |
| 65a | 293650256 | Clamp |
| 70 | 705601631 | Front Brake Disk |
| 370 | 705601987 | Anchorage Tube This part replaces 705601513. |
| 400 | 705601157 | Tandem Rigid Tube |
| 410 | 705601158 | Tandem Rigid Tube |
| 420 | 414920600 | Washer |
| 430 | 507032551 | Banjo Bolt |
| 440 | 705601159 | Rear Brake Rigid Tube |
| 700 | 705600502 | Bleeder Screw |
