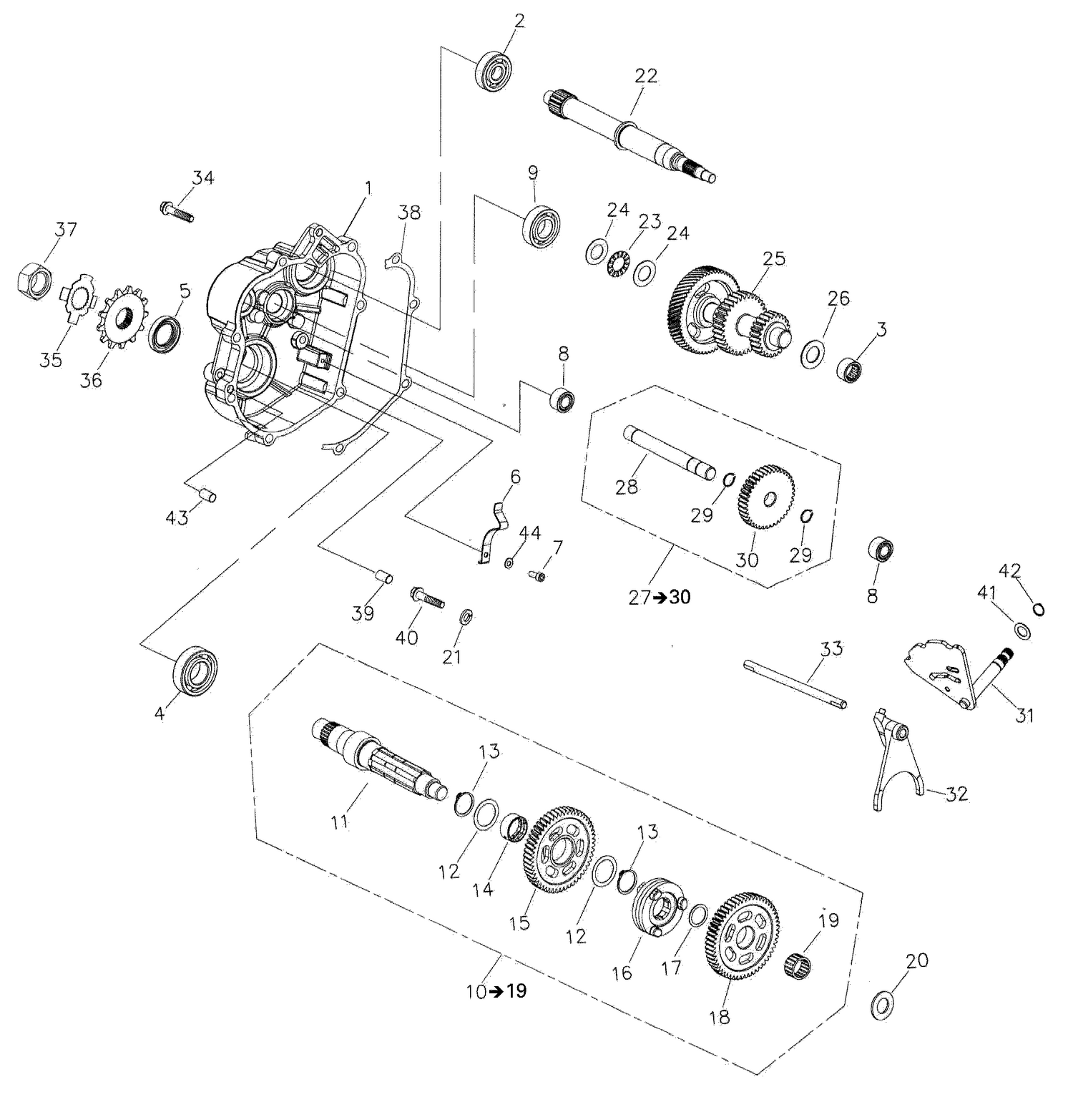

05- Gear Shift
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A21301179001 | GEAR BOX COVER - Call your local BRP dealership |
| 2 | A961006302C3 | BALL BEARING - Call your local BRP dealership |
| 3 | A96200HK1812 | Needle Bearing |
| 4 | A961006205C3 | BALL BEARING - Call your local BRP dealership |
| 5 | A9650025407 | Oil Seal |
| 6 | A24435179001 | Spring |
| 7 | 420241841 | Socket Screw M5 x 12 |
| 8 | A96200HK1512 | Bearing_Needle - Call your local BRP dealership |
| 9 | A961006303 | Ball Bearing 6003 |
| 11 | A23221179001 | Driven Shaft |
| 12 | A941052635005 | Washer |
| 13 | A945112500S | CIRCLIP - Call your local BRP dealership |
| 14 | A23402179001 | Inner Bushing |
| 15 | A23405179001 | High Gear, 51 Teeth |
| 16 | A23461179001 | Sliding Bushing |
| 17 | A941052026010 | Washer |
| 18 | A23406179001 | Reverse Idle Gear, 53 Teeth |
| 19 | A96200202413 | Bearing_Needle - Call your local BRP dealership |
| 20 | A941051528010 | Washer |
| 21 | 420927574 | Washer 5.3 This part replaces 420927571. |
| 22 | A23411179001 | Drive Pulley Shaft |
| 23 | A968001730A | PLAIN BEARING - Call your local BRP dealership |
| 24 | A941051730010 | THRUST WASHER - Call your local BRP dealership |
| 25 | A23211179001 | INTERMEDIATE SHAFT ASS'Y - Call your local BRP dealership |
| 26 | A941051826010 | Thrust Washer |
| 28 | A24775179001 | Reverse Idle Gear Shaft |
| 29 | A945111800S | Circlip |
| 30 | A23407179001 | Idle Gear, 38 Teeth |
| 31 | A246301790A1 | Shift Shaft Ass'y |
| 32 | A24211179000 | SHIFT FORK - Call your local BRP dealership |
| 33 | A24241179000 | Guide Pin |
| 34 | A960000804010G | HEX.WASHER FACE BOLT M8 X 40 - Call your local BRP dealership |
| 35 | A23415179001 | LOCK WASHER - Call your local BRP dealership |
| 36 | A23801179000 | SPROCKET, 13 TEETH - Call your local BRP dealership |
| 37 | 420242656 | Ecrou Hex.M20 *Nut-Hex.M20 This part replaces 420242651. |
| 38 | A21395179001 | GASKET - Call your local BRP dealership |
| 39 | A9430110140 | Dowel Pin |
| 40 | A960000804510G | Hex. Flange Screw M8 X 45 |
| 41 | A941051222010 | WASHER - Call your local BRP dealership |
| 42 | A945111200S | CIRCLIP - Call your local BRP dealership |
| 43 | A9430708120 | CENTER PIN 8 X 12 - Call your local BRP dealership |
