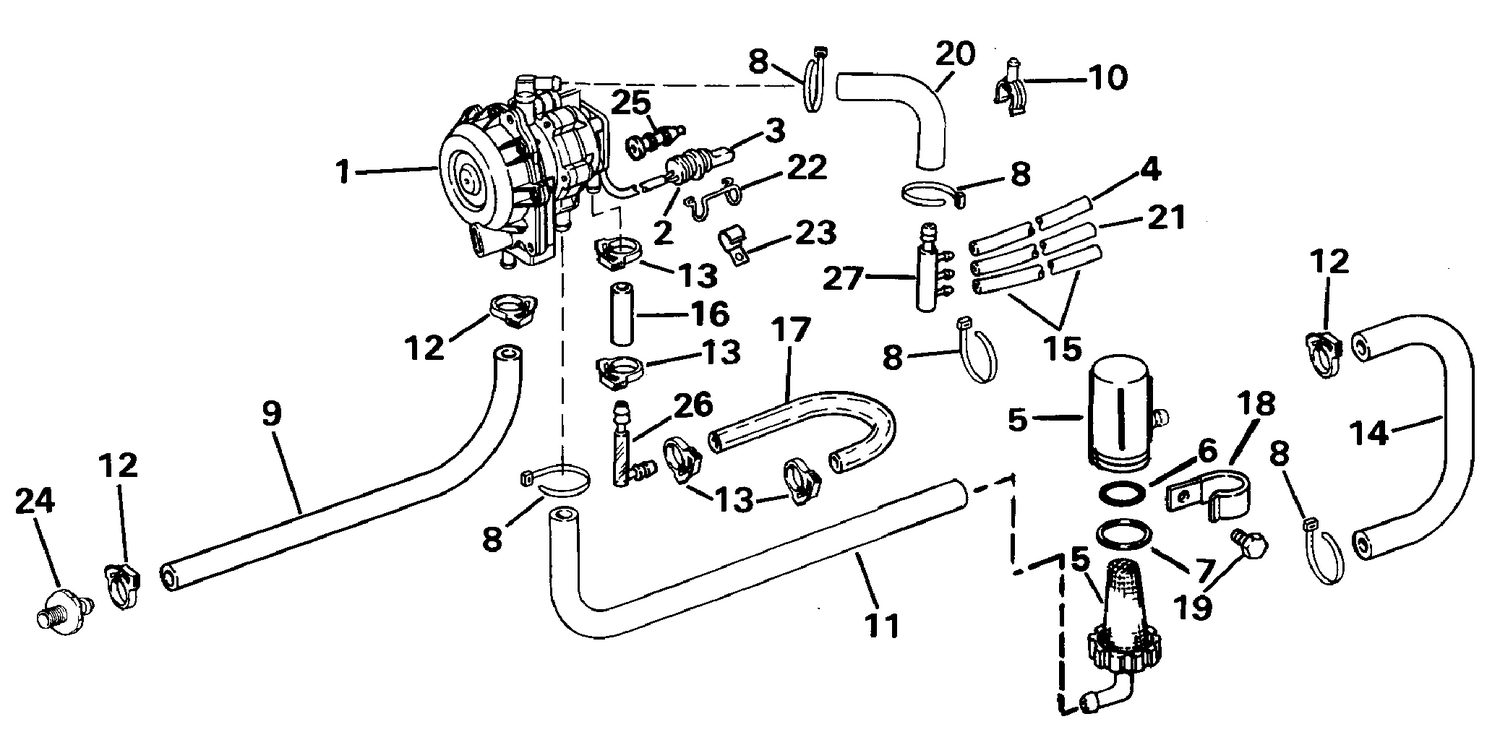

| Ref | Part Number | Description |
|---|
| 1 |
5007421 |
Kit Ay This part replaces 0174570. |
| 4 |
HOSE, |
Fuel manifold to carb., upper, 5 in. (127mm) |
| 5 |
0397715 |
FILTER, Fuel |
| 8 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 9 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 10 |
0329661 |
SUPPORT/BOUCHON |
| 11 |
HOSE, |
Filter to fuel pump, 10 3/4 (273mm) |
| 13 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 14 |
0333397 |
HOSE, Connector to filter |
| 15 |
HOSE, |
Fuel manifold to lower carb., 5 in. (127mm) |
| 16 |
HOSE, |
Sight tube to pump, 1 1/2 in. (38mm) |
| 17 |
HOSE, |
Oil conn. to sight tube, 9 9/16 in. (243mm) |
| 19 |
0909676 |
SCREW |
| 20 |
0333446 |
FLEXIBLE, entrée d'eau |
| 21 |
HOSE, |
Manifold to primer, 8 1/2 in. (216mm) |
| 22 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 25 |
0333521 |
MOUNT, Isolation |
| 26 |
0331841 |
SIGHT TUBE OIL |
