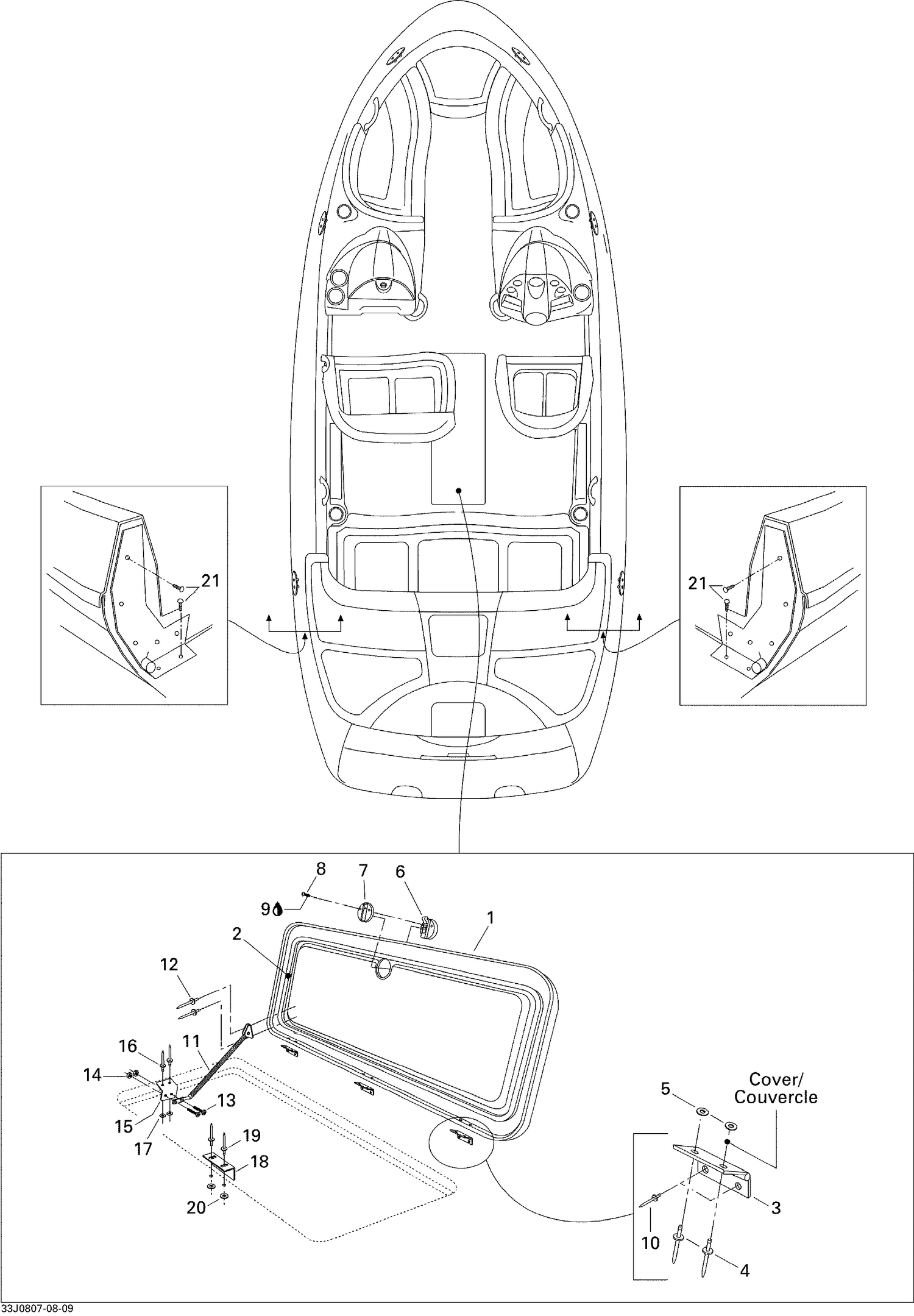

| Ref | Part Number | Description |
|---|
| 1 |
204073122 |
Central Cover |
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
204072601 |
HINGE - Call your local BRP dealership |
| 4 |
293150037 |
Avdel Rivet 3/16" |
| 5 |
234051600 |
Flat Washer M5, Stainless |
| 6 |
204072722 |
LATCH, BEIGE - Call your local BRP dealership |
| 7 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 8 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 9 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 10 |
293150037 |
Avdel Rivet 3/16" |
| 11 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 12 |
293150055 |
RIVET_POP 3/16 - Call your local BRP dealership |
| 13 |
250000231 |
PHILLIPS SCREW 6-32 X 3/8 - Call your local BRP dealership |
| 14 |
Not |
Available As Spare Part - Hex. Nut 6-32 |
| 15 |
Not |
Available As Spare Part - Spring Bracket |
| 16 |
293150043 |
Pop Rivet 3/16" |
| 17 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 18 |
204070060 |
KEEPER - Call your local BRP dealership |
| 19 |
293150088 |
Pop Rivet 3/16" |
| 20 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
