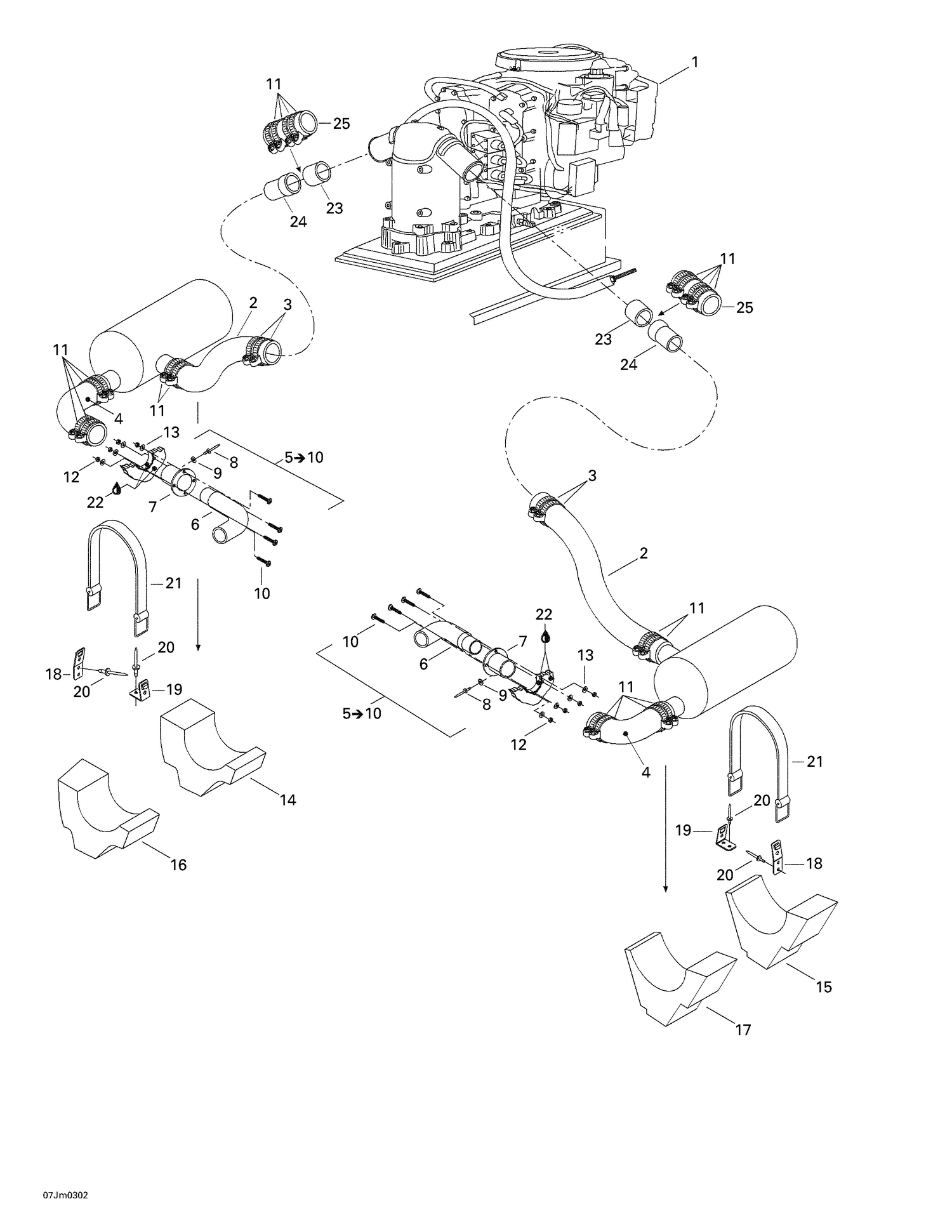

01- Exhaust System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Mercury Engine |
| 2 | 204340406 | Exhaust Hose |
| 3 | 293650064 | Tridon Clamp |
| 4 | 204340297 | Exhaust Hose |
| 6 | 204340250 | Exhaust Hose 90° |
| 7 | 204340229 | Exhaust Outlet |
| 8 | 293150043 | Pop Rivet 3/16" |
| 9 | 234052600 | Flat Washer 5 mm, Stainless |
| 10 | 208663560 | PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 11 | 293650112 | Tridon Clamp |
| 12 | 232561600 | Hex. Elastic Stop Nut M6 |
| 13 | 234062600 | Flat Washer M6, Stainless |
| 14 | 204340237 | Front Muffler Support (Port) |
| 15 | 204340199 | Front Muffler Support (Starboard) |
| 16 | 204340238 | Rear Muffler Support (Port) |
| 17 | 204340200 | Rear Muffler Support (Starboard) |
| 18 | 293850024 | STRAP CLIP - Call your local BRP dealership |
| 19 | 204060017 | Strap Clip 90° |
| 20 | 293150088 | Pop Rivet 3/16" |
| 21 | 293850022 | STRAP - Call your local BRP dealership |
| 22 | 296000309 | Silicone Sealant 51388, 300 ml |
| 23 | 204340403 | Exhaust Spacer |
| 24 | 204340402 | Exhaust Adaptor |
