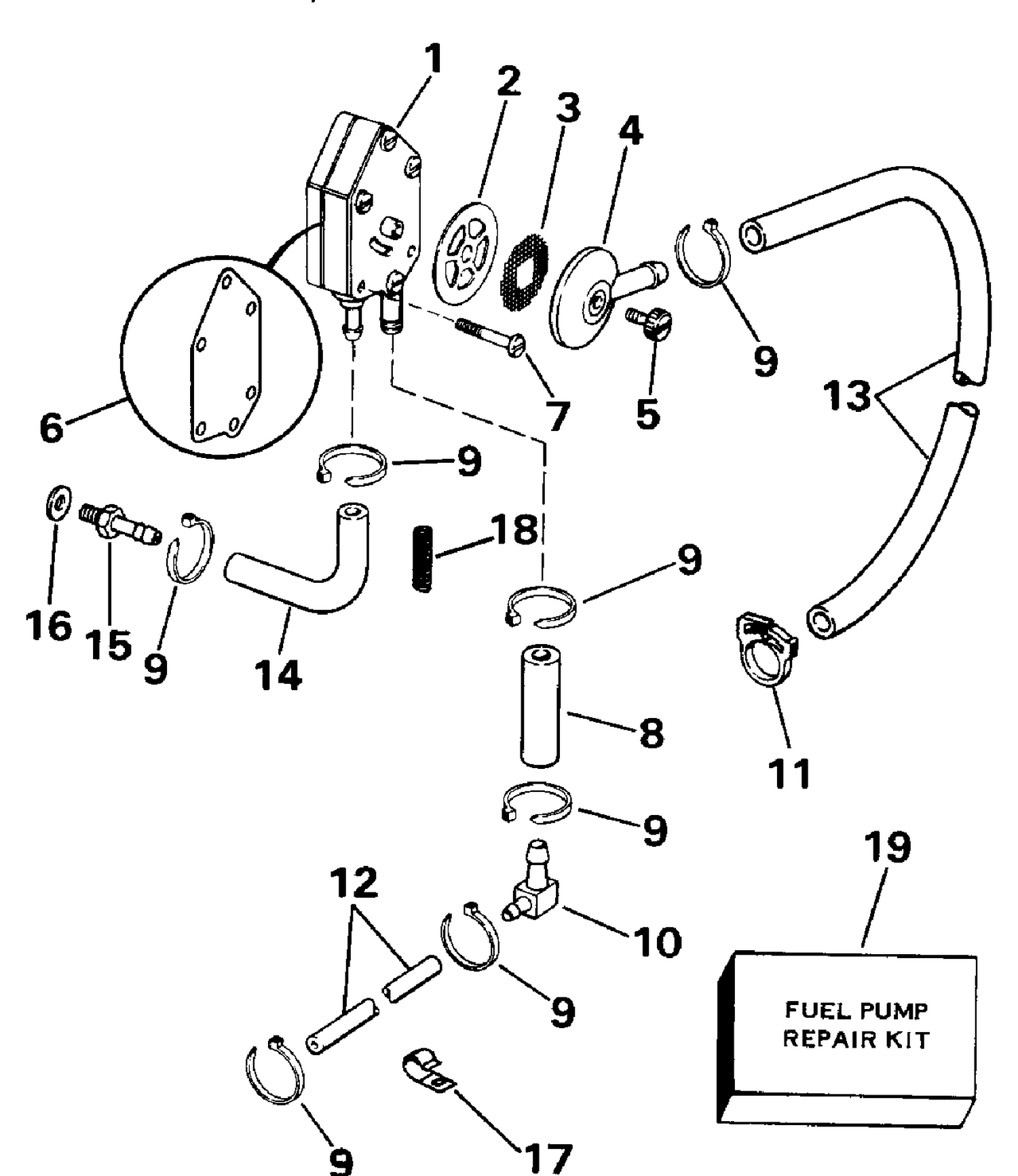

| Ref | Part Number | Description |
|---|
| 1 |
0398867 |
FUEL PUMP ASSEMBLY |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 |
0330092 |
CAP Filter |
| 7 |
0330184 |
VIS, montage pompe |
| 8 |
HOSE, |
Pump to elbow, 1 1/2 (38mm) |
| 9 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 |
0327729 |
ELBOW, Fuel hose |
| 12 |
0333748 |
HOSE, Elbow carburetor |
| 13 |
HOSE, |
Connector to pump, 3" (76mm) |
| 14 |
HOSE, |
Fuel pump pulse, 18 1/2" (470mm) |
| 15 |
0329613 |
FITTING, Fuel pump |
| 16 |
0303107 |
RONDELLE NYLON, barre |
| 17 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 18 |
0315942 |
SPRING |
| 0431959 |
0431960 |
FUEL PIMP KIT This part replaces 0431959. |
