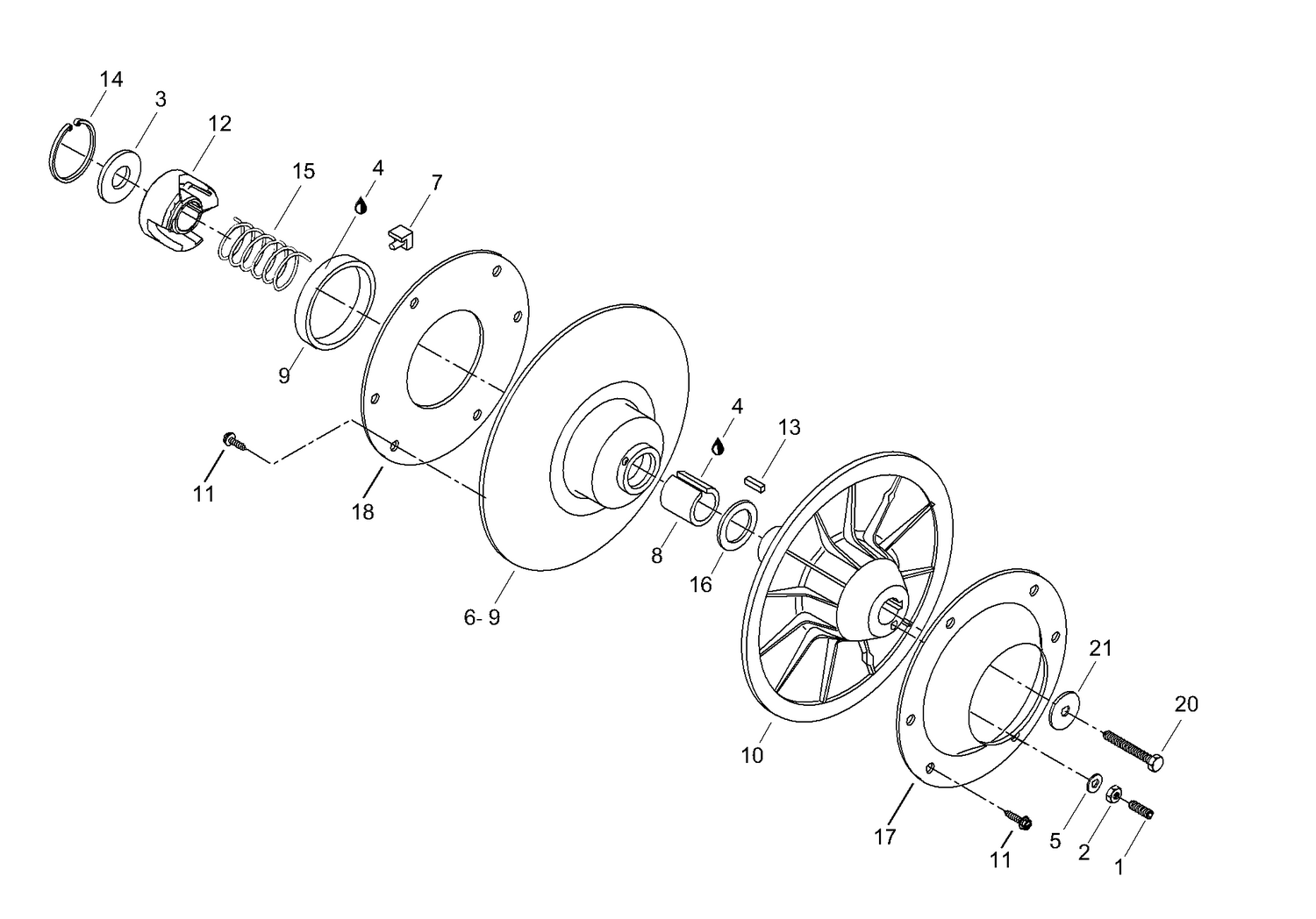

| Ref | Part Number | Description |
|---|
| 1 |
206263044 |
Screw |
| 2 |
232061414 |
Nut |
| 3 |
504141800 |
Washer |
| 4 |
413703100 |
Loctite 609 10cc |
| 5 |
420245370 |
WASHER - Call your local BRP dealership |
| 7 |
414918000 |
CAM SLIDER SHOE - Call your local BRP dealership |
| 8 |
415011200 |
BUSHING - Call your local BRP dealership |
| 9 |
414876600 |
GARLOCK BUSHING - Call your local BRP dealership |
| 10 |
417126477 |
Fixed half pulley assy |
| 11 |
Not |
Available As Spare Part - Hex. tapping screw - DOES NOT APPLY TO THIS MODEL |
| 12 |
417126590 |
Cam 42 degr. |
| 13 |
414820800 |
Key |
| 14 |
371903100 |
CIRCLIP - Call your local BRP dealership |
| 15 |
414558900 |
RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 16 |
504141900 |
Thrust washer |
| 17 |
Not |
Available As Spare Part - Cup - DOES NOT APPLY TO THIS MODEL |
| 18 |
Not |
Available As Spare Part - Ring - DOES NOT APPLY TO THIS MODEL |
| 20 |
40089 |
M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
