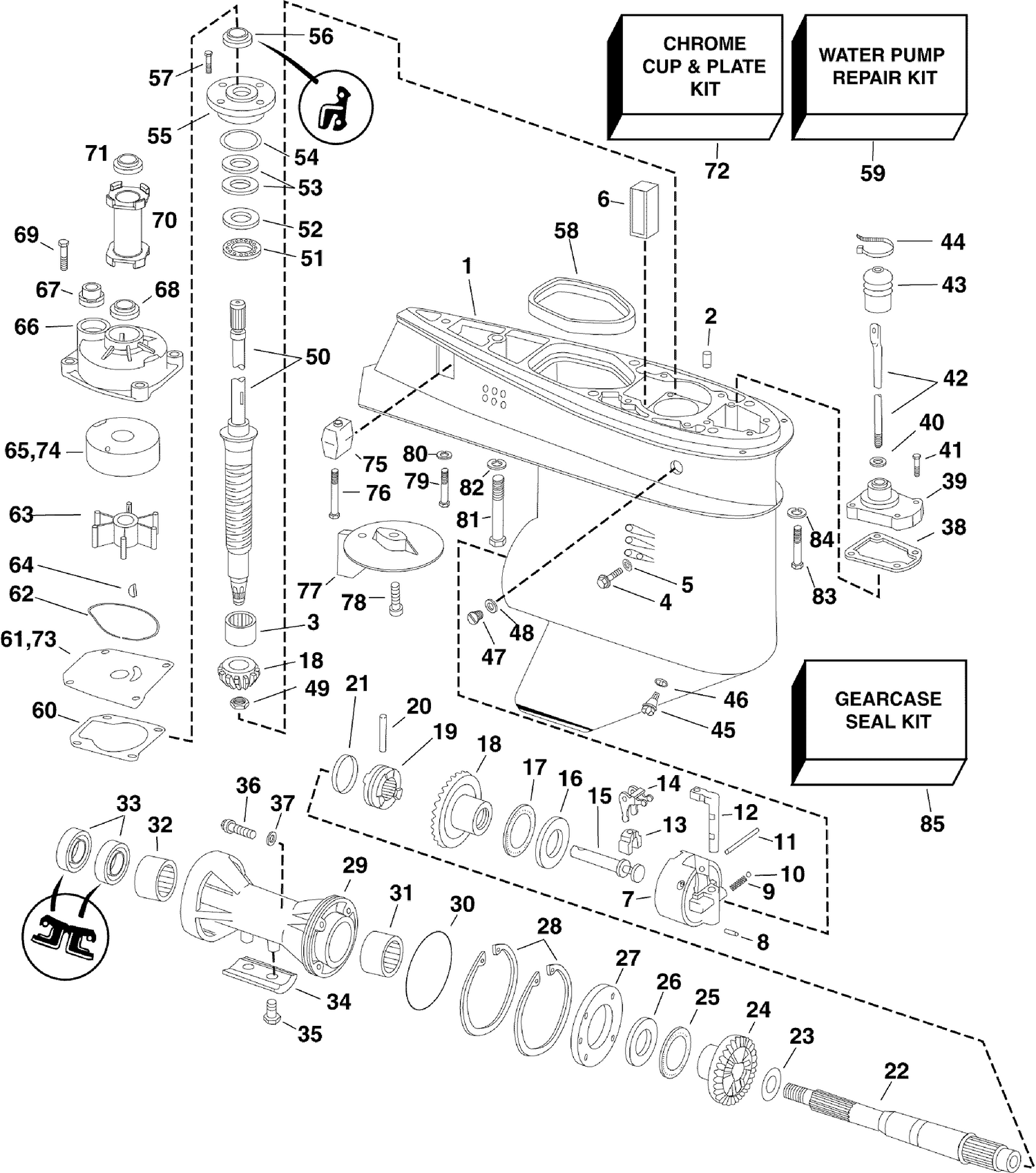

GEARCASE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5009328 | G-Case This part replaces 5007628. |
| 1 | 5009330 | G-Case This part replaces 5006558. |
| 1 | 5010353 | Gearcase Ay-S1 Gra This part replaces 5006126. |
| 44 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 59 | 5006511 | WATER PUMP REPAIR KIT |
| 77 | 0127466 | TRIM TAB |
| 78 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 79 | 0306503 | SCREW, Short |
| 81 | 0313697 | SCR,Grc to hsg.long |
| 82 | 0306314 | L'WASHER,Scr,long |
