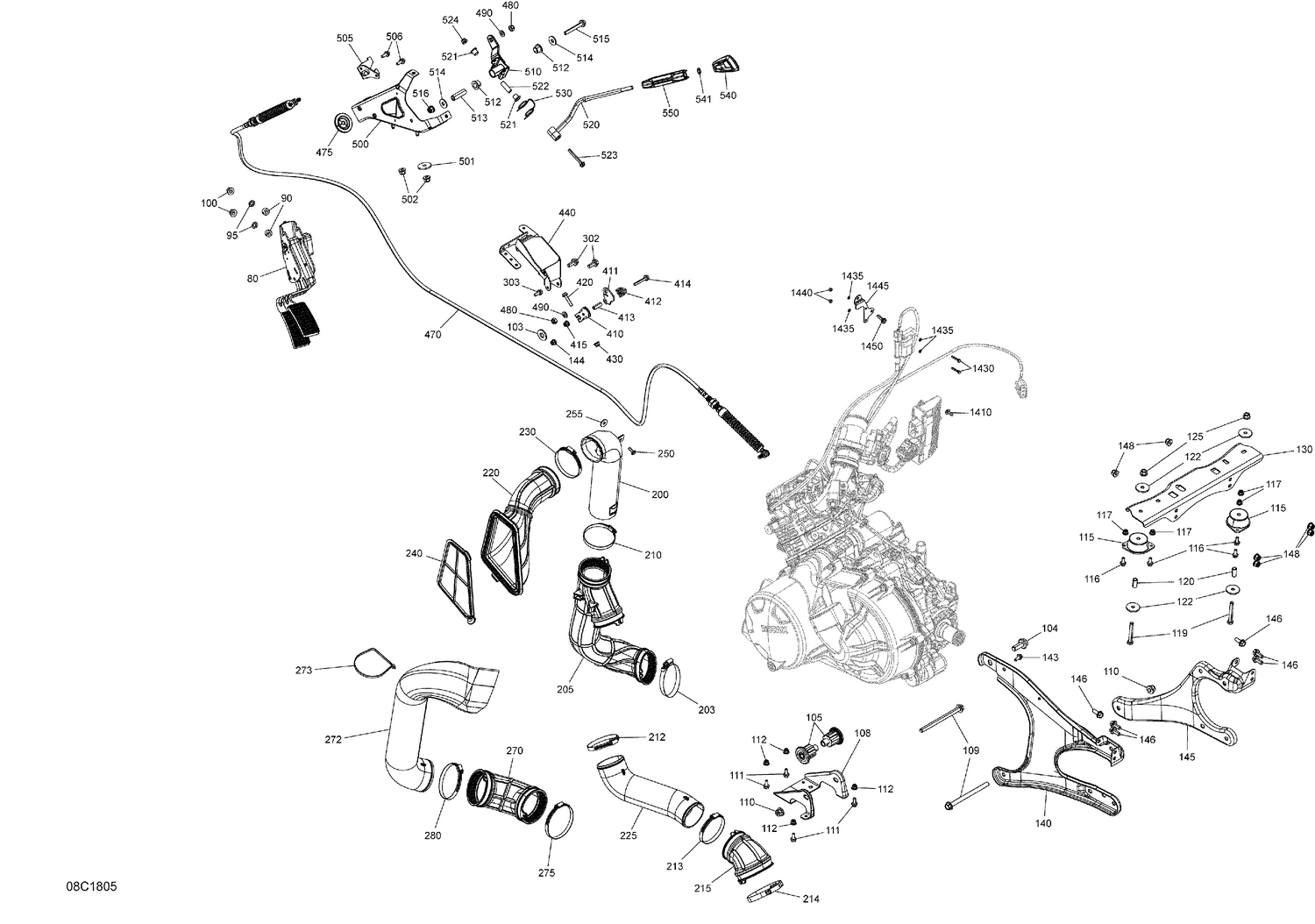

01- Engine Defender Non MAX HD5
Parts (85)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 707001599 | Accelerator Pedal |
| 90 | 707000848 | Bushing |
| 95 | 250100031 | Push Nut |
| 100 | 233081416 | Hex. Flange Nut M8 |
| 103 | 250200005 | Conical Spring Washer M12 |
| 104 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip |
| 105 | 707001169 | Vibration Damper |
| 108 | 707001989 | Front Engine Bracket |
| 109 | 230603546 | Hex. Flange Screw M10 X 135 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 |
| 111 | 207661644 | Hex. Flange Screw M6 X 16 |
| 112 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 115 | 707001867 | Rubber Mount |
| 116 | 207661644 | Hex. Flange Screw M6 X 16 |
| 117 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 119 | 207186044 | Hex. screw M8 x 60 |
| 120 | 707001908 | Bushing |
| 122 | 250200158 | Flat Washer M8 |
| 125 | 233081416 | Hex. Flange Nut M8 |
| 130 | 707002290 | Rear Link Bracket This part replaces 707002208. |
| 140 | 707001991 | Bracket -Engine |
| 143 | 207661644 | Hex. Flange Screw M6 X 16 |
| 144 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 145 | 707001992 | Bracket -Engine |
| 146 | 207682046 | Hex. Flange Screw M8 X 20 |
| 148 | 233281416 | Hex. Elastic Flange Nut M8 |
| 200a | 706600326 | Front CVT Cooling Duct This part replaces 706600234. |
| 203 | 293650091 | Norma Clamp |
| 205 | 706600144 | Flex Adapter |
| 210 | 293650091 | Norma Clamp |
| 212 | 293650091 | Norma Clamp |
| 213 | 293650091 | Norma Clamp |
| 214 | 514052924 | Norma Clamp |
| 215 | 706600153 | Adap -Flex. |
| 220 | 706600084 | Flexible Adaptor |
| 225 | 706600154 | Duct |
| 230 | 293650091 | Norma Clamp |
| 240 | 706600156 | CVT Filter |
| 250 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 255 | 250200025 | Washer M5 |
| 270 | 706600145 | Adap -Flex. |
| 272 | 706600155 | Duct |
| 273 | 293750008 | Tie Wrap 368 mm |
| 275 | 514052924 | Norma Clamp |
| 280 | 514052924 | Norma Clamp |
| 302 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 303 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 410 | 707000503 | Lever |
| 411 | 707001988 | Pivot Plate |
| 412 | 707000310 | Spring |
| 413 | 293900079 | Bushing |
| 414 | 207664044 | Hex. Flange Screw M6 X 40 |
| 415 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 420 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 440 | 707001986 | Cable Support |
| 470 | 707002227 | Shifting Cable This part replaces 707001468. |
| 475 | 293720109 | Grommet |
| 480 | 232581414 | Hex. Elastic Stop Nut M8 |
| 490 | 234081410 | Flat Washer 8 mm |
| 500 | 707002372 | Shifter Bracket This part replaces 707002003. |
| 501 | 250200158 | Flat Washer M8 |
| 502 | 233281414 | Hex. Flange Elastic Nut M8 |
| 505 | 707002038 | Cable Support |
| 506 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 510 | 707002268 | Lower Shifter Arm This part replaces 707002005. |
| 512 | 293900001 | Venturi Bushing |
| 513 | 707003445 | Bushing This part replaces 707001863. |
| 514 | 234082410 | Flat Washer 8 mm |
| 515 | 207686044 | Hex. Flange Screw M8 x 60 |
| 516 | 233281414 | Hex. Flange Elastic Nut M8 |
| 520 | 707002230 | Welded Arm |
| 521 | 707000869 | Flanged Bushing |
| 522 | 707001376 | Bushing |
| 523 | 207665044 | Hex. Flange Screw M6 X 50 |
| 524 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 530 | 707000750 | Lever Arm Spring |
| 540 | 707003211 | Lever Trim This part replaces 707000965. |
| 541 | 232180491 | Hex. Jam Nut M8 |
| 550 | 707001899 | Shifting Arm Cover |
| 1410 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 1430 | 207142544 | Hex. Screw M4 X 25 |
| 1435 | 234040600 | Flat Washer 4 mm |
| 1440 | 232541414 | Elastic Stop Nut M4 |
| 1445 | 707002024 | Ignition Coil Bracket |
