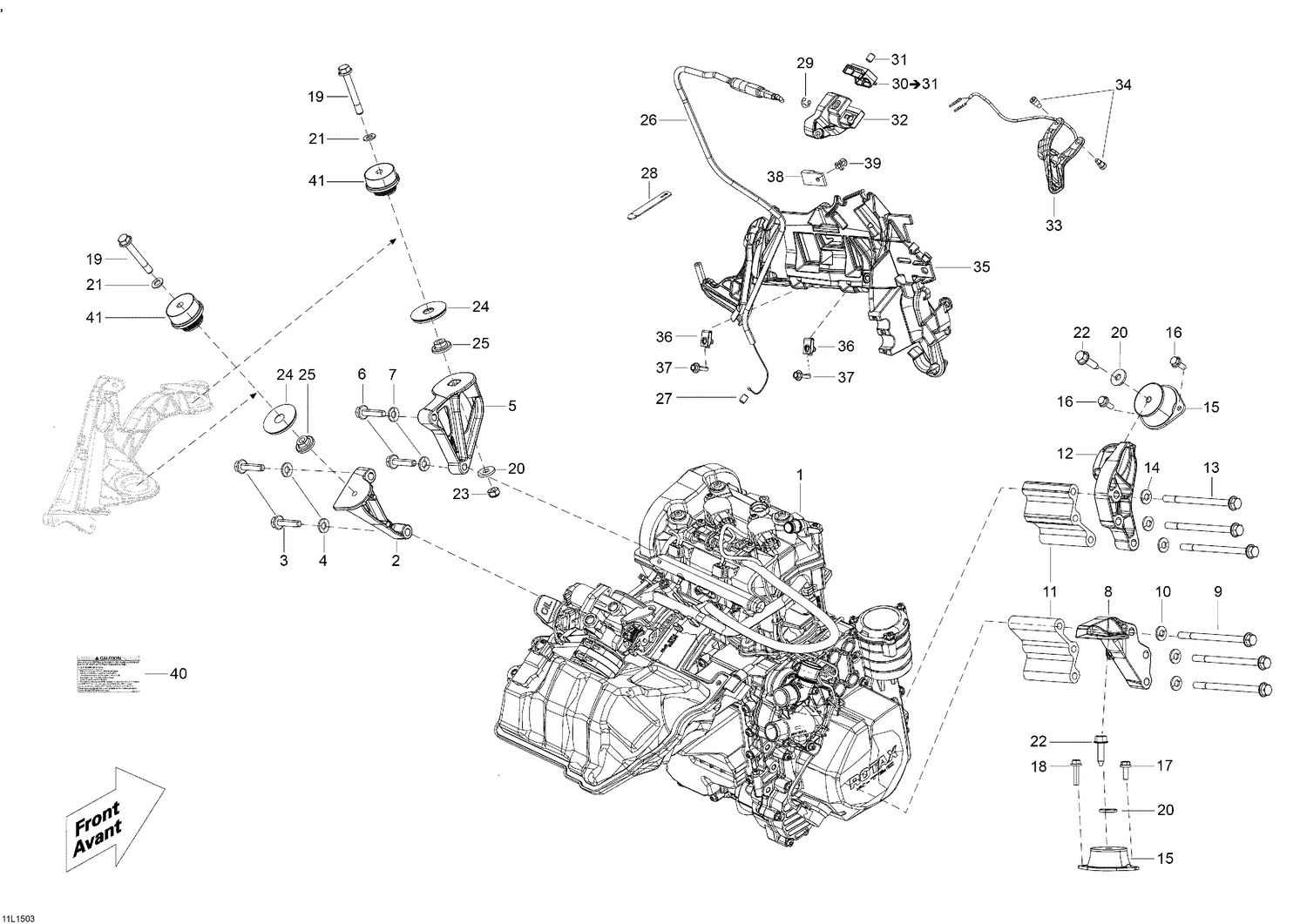

01- Engine And Engine Support
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Engine 602 ACE |
| 2 | 512061139 | Rear Support PTO This part replaces 512060660. |
| 3 | 250000986 | Hex. Flanged Screw M8 X 35 This part replaces 207583586. |
| 4 | 234281474 | Conical Spring Washer M8 |
| 5 | 512061140 | Front Support (PTO) This part replaces 512060661. |
| 6 | 250000986 | Hex. Flanged Screw M8 X 35 This part replaces 207583586. |
| 7 | 234281474 | Conical Spring Washer M8 |
| 8 | 512061142 | Rear Support (MAG) This part replaces 512060894. |
| 9 | 230582544 | Hex. Flange Screw M8 x 125, Scotch Grip |
| 10 | 234281474 | Conical Spring Washer M8 |
| 11 | 512060505 | Shim |
| 12 | 512060663 | Front Support, MAG |
| 13 | 230582544 | Hex. Flange Screw M8 x 125, Scotch Grip |
| 14 | 234281474 | Conical Spring Washer M8 |
| 15 | 512060729 | Rubber Mount |
| 16 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 17 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 18 | 207562534 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 19 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 20 | 503183200 | Yellow, Washer |
| 21 | 250200008 | Flat Washer With Teflon 8 mm |
| 22 | 250000257 | Cone Screw M8 |
| 23 | 232581414 | Hex. Elastic Stop Nut M8 |
| 24 | 512061203 | Stopper This part replaces 512060647. |
| 25 | 512060285 | Spacer |
| 26 | 512060607 | Throttle Cable |
| 27 | 707000434 | Cable Guide |
| 28 | 293850117 | Rubber Strap |
| 29 | 414274500 | Circlip |
| 31 | 414440800 | Socket Set Screw M8 X 10 |
| 32 | 512060860 | Lower Housing |
| 33 | 512061250 | Handle Ass'y This part replaces 512061051. |
| 34 | 732601143 | Flanged Screw |
| 35 | 512060509 | MODULE SUPPORT - Call your local BRP dealership |
| 36 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 37 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 38 | 270000141 | Clip |
| 39 | 293150027 | Rivet |
| 40 | 516005521 | Checking Engine Oil Level Caution Decal |
