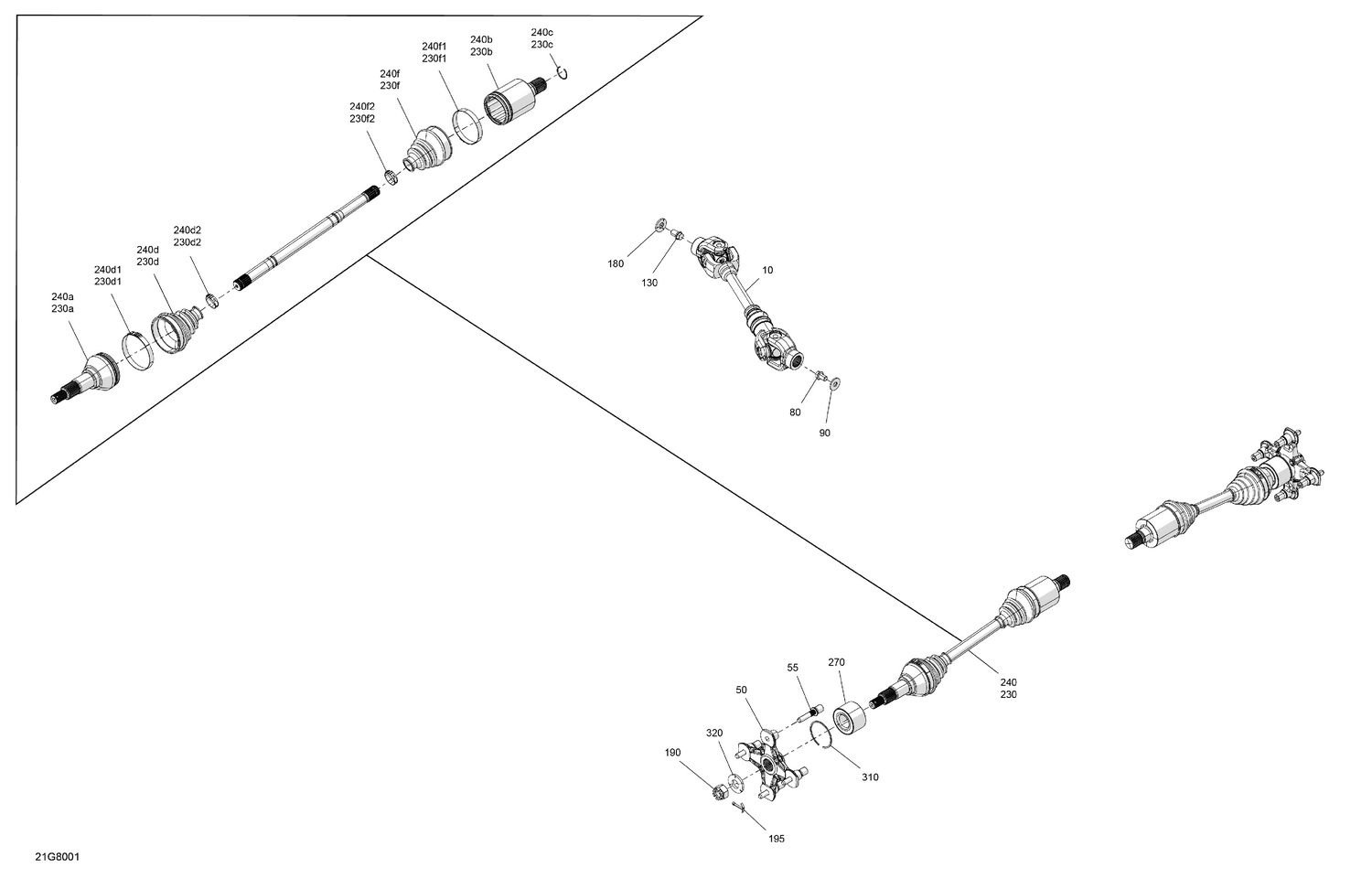

04- Drive - Rear - Common Parts
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 703500932 | Rear Propeller Shaft Ass'y Kit This part replaces 705502583. |
| 50 | 705501716 | Wheel Hub Ass'y |
| 55 | 250300643 | Wheel Stud This part replaces 250300048. |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 90 | 250200014 | Flat Washer M10 |
| 130 | 250001039 | Hex Flange Screw M12 X 16 |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 |
| 195 | 250400071 | Cotter Pin |
| 230a | 705401344 | CV Joint |
| 230b | 715900304 | Plunging Joint |
| 230c | 705501781 | Circlip |
| 230d1 | 715900282 | Oetiker Clamp |
| 230d2 | 715900283 | Oetiker Clamp, Small |
| 230f1 | 715900284 | Oetiker Clamp, Large |
| 230f2 | 715900261 | Oetiker Clamp, Small |
| 240a | 705401344 | CV Joint |
| 240b | 715900304 | Plunging Joint |
| 240c | 705501781 | Circlip |
| 240d1 | 715900282 | Oetiker Clamp |
| 240d2 | 715900283 | Oetiker Clamp, Small |
| 240f1 | 715900284 | Oetiker Clamp, Large |
| 240f2 | 715900261 | Oetiker Clamp, Small |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 310 | 293370019 | Circlip |
