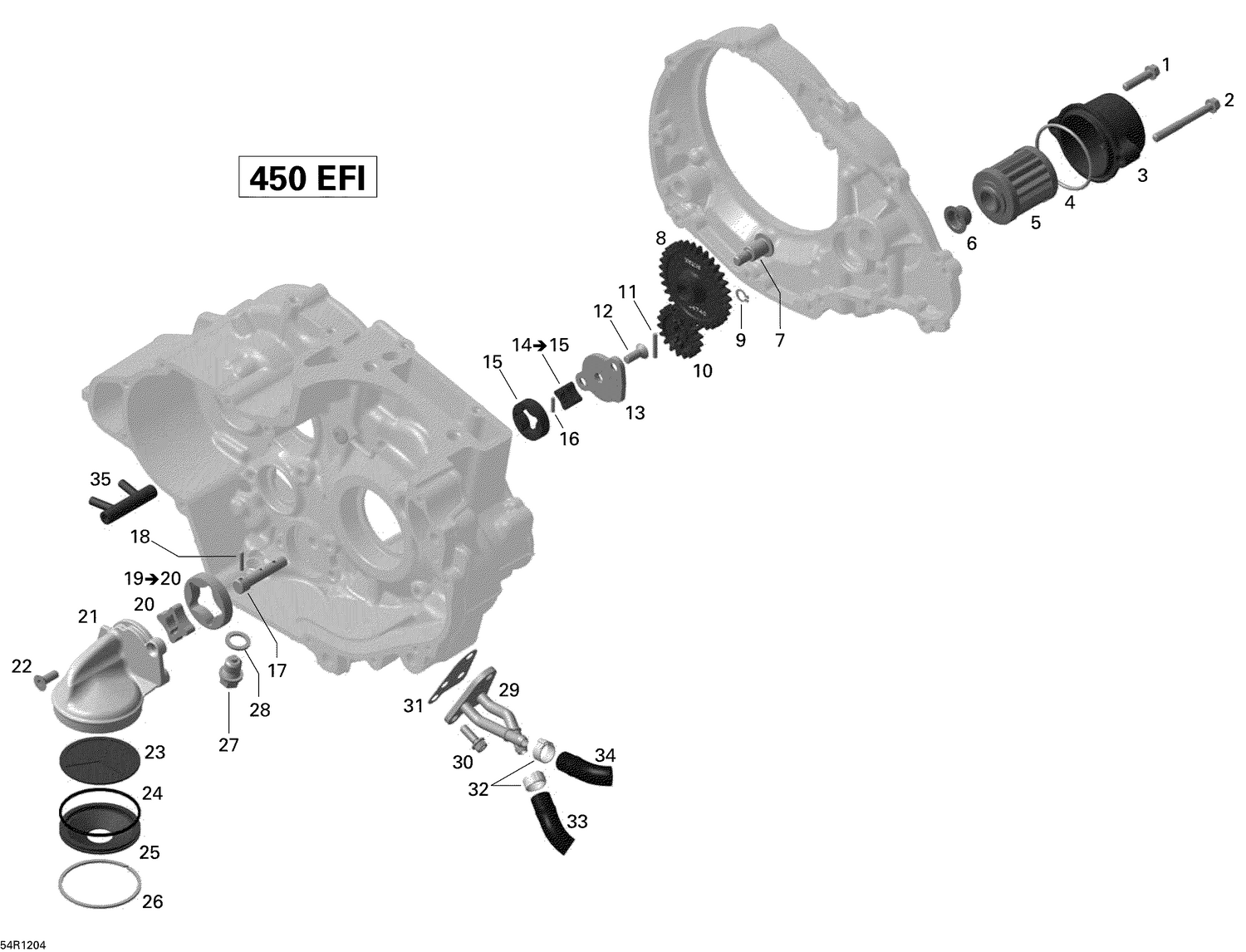

01- Engine Lubrication
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420641238 | Torx Flange Screw M6 X 25 |
| 2 | 420440702 | Torx Flange Screw M6 X 55 |
| 3 | 420211509 | OIL FILTER COVER - Call your local BRP dealership |
| 4 | 420430920 | O-Ring |
| 5 | 420256455 | Oil Filter |
| 6 | 420647100 | SLEEVE - Call your local BRP dealership |
| 7 | 420241150 | BEARING BOLT M8 - Call your local BRP dealership |
| 8 | 420434740 | Idle Gear, 31 Teeth |
| 9 | 420245570 | Retaining Ring |
| 10 | 420434730 | Oil Pump Gear, 18 Teeth |
| 11 | 420932840 | Needle Pin |
| 12 | 420440906 | Countersunk Screw M6 X 16 |
| 13 | 420611791 | Oil Pump Cover |
| 15 | Not | Available As Spare Part - Outer Rotor |
| 16 | 420832560 | NEEDLE PIN - Call your local BRP dealership |
| 17 | 420620810 | OIL PUMP SHAFT - Call your local BRP dealership |
| 18 | 420232980 | NEEDLE PIN - Call your local BRP dealership |
| 20 | Not | Available As Spare Part - Inner Rotor |
| 21 | 420610740 | Oil Sieve Cover |
| 22 | 420941436 | Screw M6 X 20 |
| 23 | 420256570 | OIL SIEVE - Call your local BRP dealership |
| 24 | 420650697 | O-Ring This part replaces 420650695. |
| 25 | 420256650 | Oil Collector |
| 26 | 420845590 | SNAP RING - Call your local BRP dealership |
| 27 | 420241787 | Magnetic Drain Plug M12 This part replaces 420241786. |
| 28 | 420250640 | Copper Washer |
| 29 | 420656460 | Connection Cover |
| 30 | 420440207 | Torx Flange Screw M6 X 20 |
| 31 | 420431120 | Gasket |
| 32 | 420851458 | Clamp |
| 33 | 420460791 | Oil Hose |
