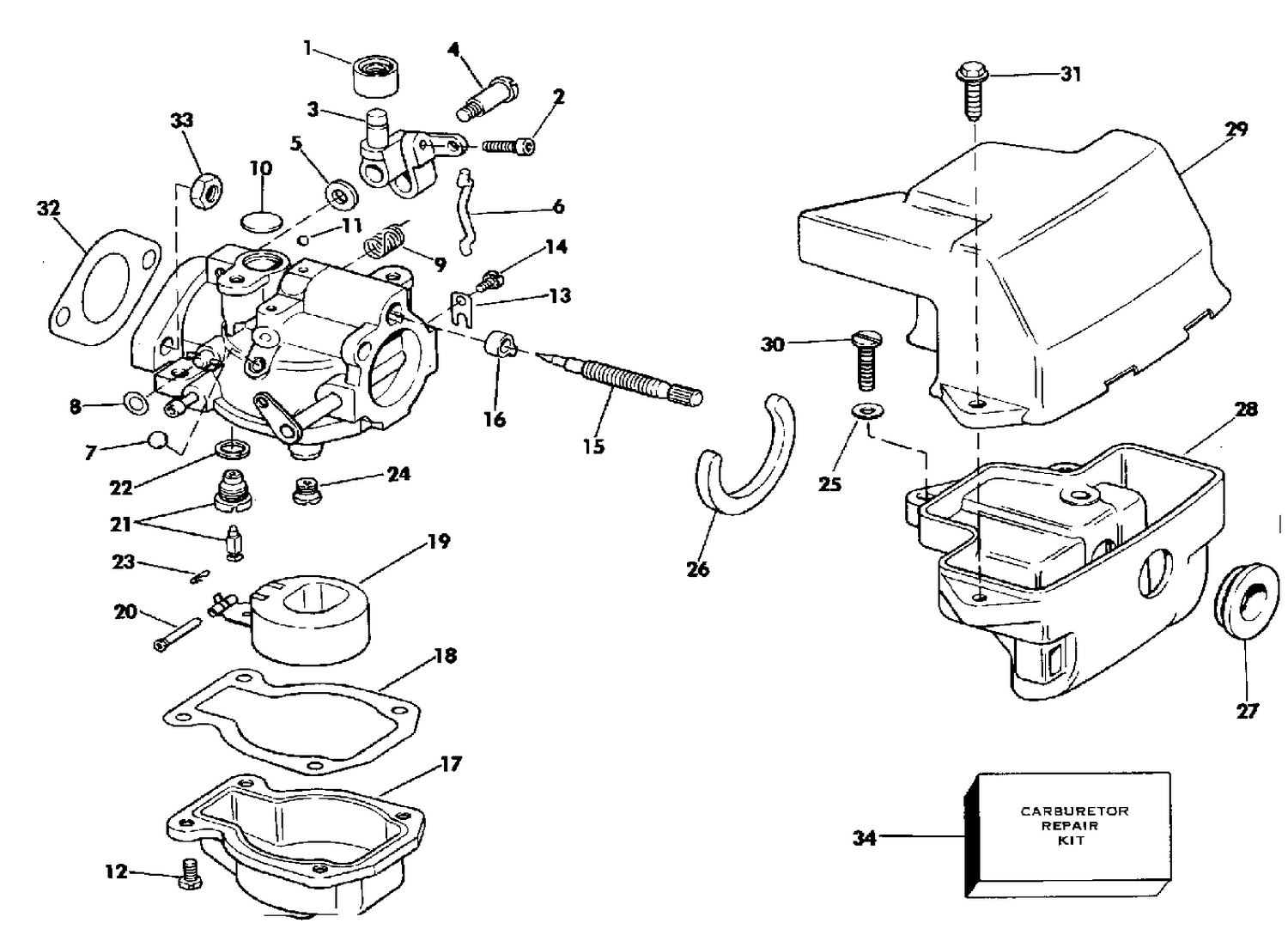

| Ref | Part Number | Description |
|---|
| 6 |
0330286 |
LINK, Cam follower This part replaces 0324065. |
| 12 |
0319008 |
GROMMET, Cable, lower motor cover |
| 14 |
0307191 |
SCREW, Choke shaft retaining clip |
| 15 |
0386152 |
NEDDLE, Slow speed |
| 16 |
0315232 |
RETAINER , Needle valve stbd |
| 17 |
0330881 |
FLOAT CHAMBER This part replaces 0319010. |
| 18 |
0338878 |
GASKET This part replaces 0319011. |
| 23 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 24 |
0323637 |
HIGH SPEED ORIFICE PLUG NO.36 |
| 24 |
0326064 |
HIGH SPEED ORIFICE PLUB,No 35 (except SRL m odel) |
| 24 |
0328124 |
HIGH SPEEC ORIFICE PLUG,No.33 (SRL model only ) |
| 25 |
0306413 |
WASHER |
| 26 |
0319287 |
SEAL, Air silencer |
| 27 |
0320521 |
GROMMET |
| 28 |
0325299 |
BASE, Air silencer |
| 29 |
0330570 |
COVER, Air silencer This part replaces 0330479. |
| 30 |
0314496 |
SCREW, Air silencer |
| 32 |
0318932 |
JOINT |
| 33 |
0328742 |
NUT This part replaces 0306338. |
| 0393046 |
0393046 |
CARBURETOR ASSY., |
| 0394630 |
0394630 |
CARBURETOR ASSY. |
| 0395139 |
0395139 |
CARBURETOR ASSY |
