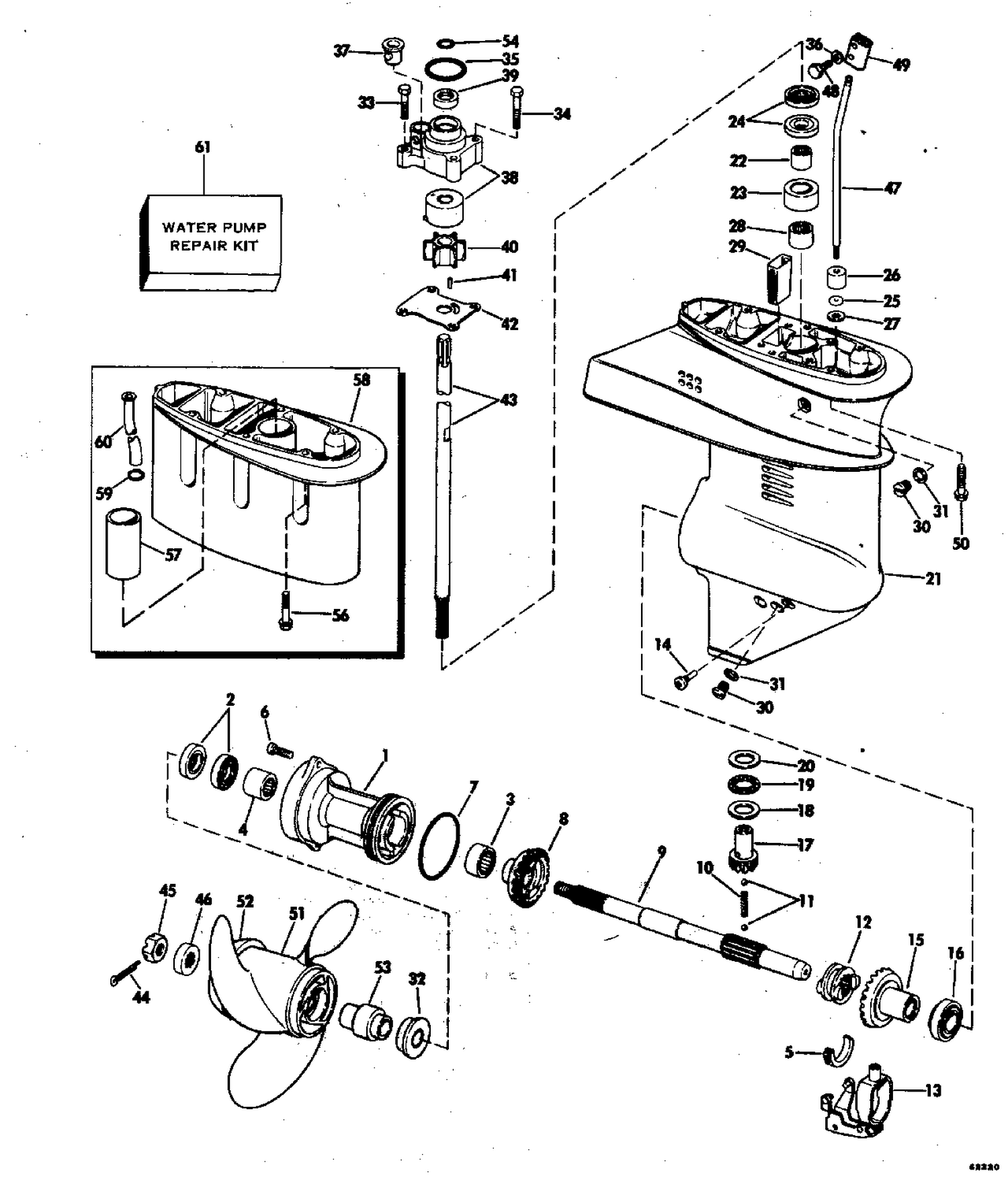

| Ref | Part Number | Description |
|---|
| 4 |
0386213 |
BEARING |
| 5 |
0318877 |
CRADLE, Clutch dog |
| 9 |
0322097 |
PORP0ELLER SHAFT |
| 12 |
0316501 |
SHIFT, Clutch dog |
| 15 |
0386076 |
GEAR & BUSHING ASSY., Forward |
| 17 |
0322341 |
PINION, Driveshaft This part replaces 0321454. |
| 18 |
0318800 |
THRUST WASHER, Lower pinion bearing |
| 19 |
0112840 |
THRUST BEARING, Pinion |
| 20 |
0318699 |
THRUST WASHER, Upper pinion bearing |
| 21 |
0438617 |
GEARCASE Assy, This part replaces 0386017. |
| 25 |
0301877 |
O RING SHIFT ROD |
| 27 |
0306407 |
LOCCKWASHER,Cover latch |
| 32 |
0318966 |
THR BUSHING, Prop. to shaft |
| 38 |
0394711 |
CHROME PUMP KIT This part replaces 0388139. |
| 40 |
0386084 |
IMPELLER |
| 41 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 42 |
0318995 |
PLATE, Impeller housing |
| 43 |
0321455 |
DRIVESHAFT, Standard This part replaces 0387606. |
| 43 |
0321456 |
DRIVESHAFT, Long This part replaces 0387607. |
| 47 |
0318992 |
SHIFT ROD LOWER, Standard |
| 51 |
0386669 |
PROPELLER AND BUSHING ASSEMBLY 10 X 5 |
| 51 |
0386670 |
PROPELLER AND BUSHING ASSEMBLY 9 X 10 |
| 51 |
0387389 |
PROPELLER, 9 1/4 x 8 AL |
| 51 |
0778772 |
RH Alum. 9 1/2 x 10 This part replaces 0386118. |
| 0386680 |
0438617 |
GEARCASE Assy, This part replaces 0386680. |
| 0386710 |
0392002 |
EXTENSION KIT ASSY. This part replaces 0386710. |
