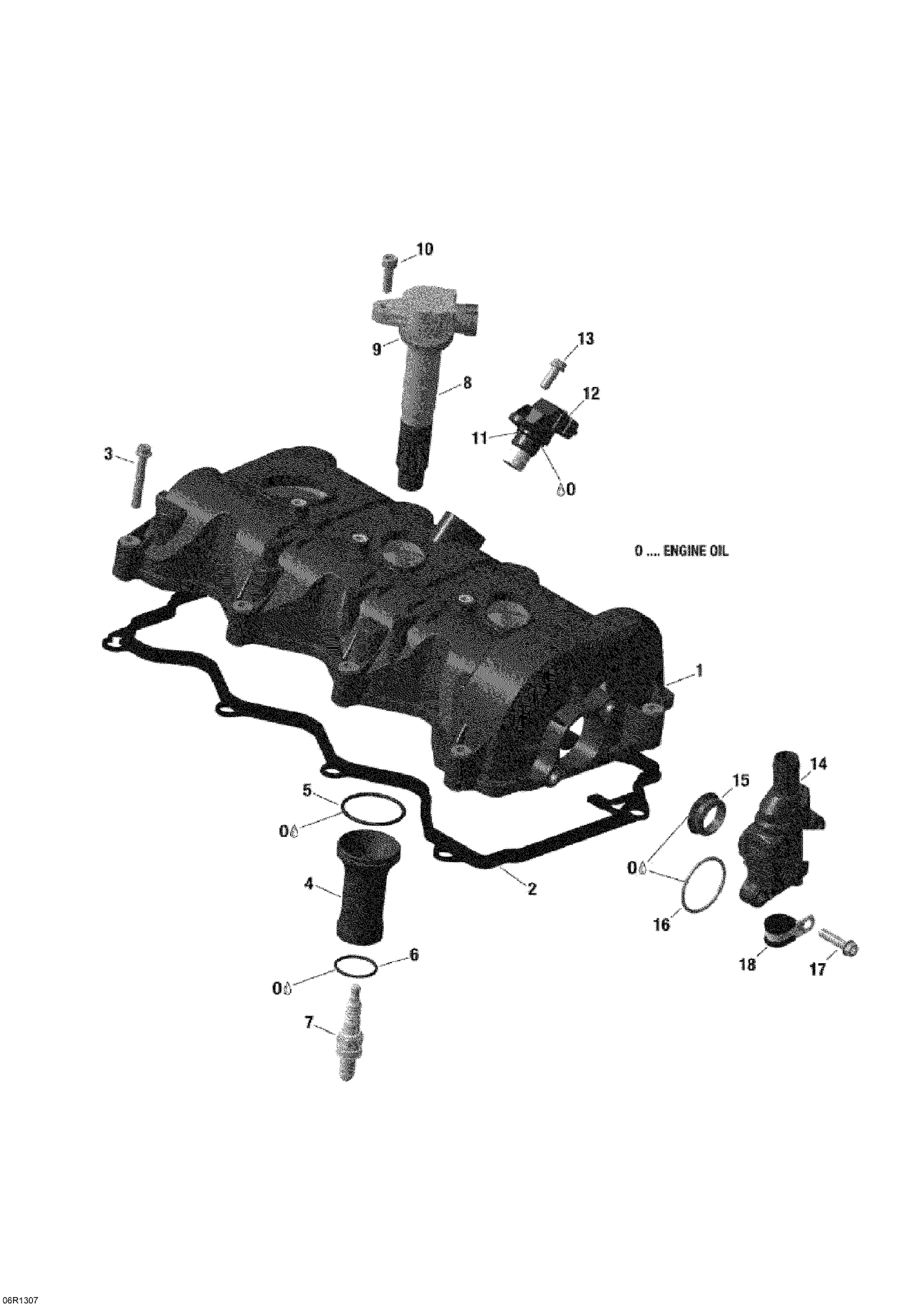

01- Valve Cover
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420431041 | Gasket |
| 3 | 420440282 | Flanged Torx Screw M6 X 40 |
| 5 | 420431740 | O-Ring |
| 6 | 420631611 | O-Ring |
| 7 | 415129429 | Spark Plug NGK CR8EKB |
| 8 | 420665811 | Ignition Coil This part replaces 420665810. |
| 10 | 205062044 | Allen Screw M6 X 20 |
| 11 | 420631890 | O-ring |
| 12 | 420664046 | Camshaft Position Sensor Ass'y This part replaces 420664045. |
| 13 | 420440162 | Flanged Torx Screw M6 X 16 |
| 14 | 420856506 | Vent Valve Assy |
| 15 | 420630125 | V-ring |
| 16 | 420950870 | O-Ring |
| 17 | 420440234 | Flanged Torx Screw M6 X 25 |
| 18 | 420851492 | Cable Clamp 15/M6 |
