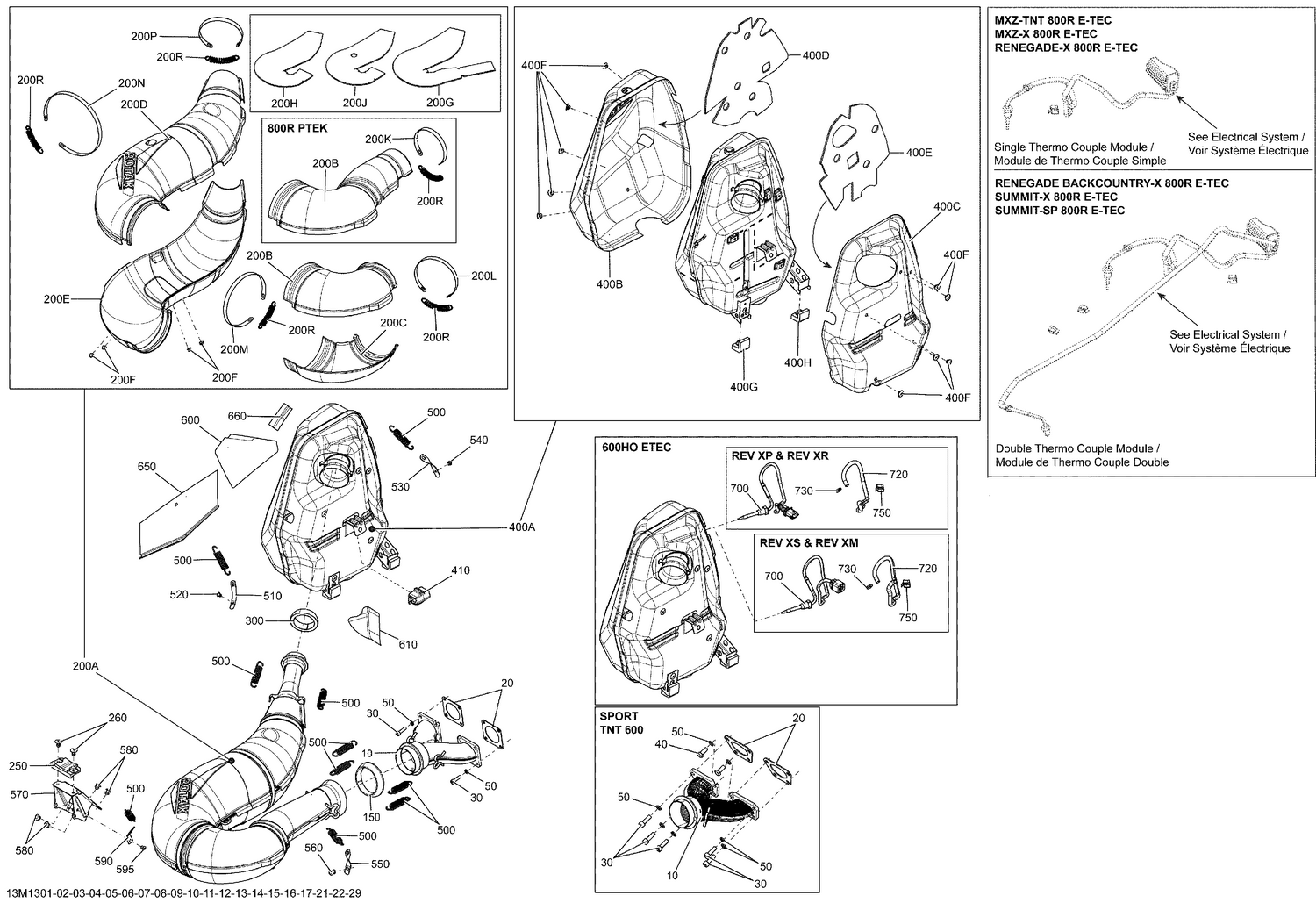

01- Exhaust System
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 40 | XXX | Not Available As Spare Parts |
| 150 | 514053487 | Exhaust Gasket |
| 200B | 514054992 | Front Upper Half Enveloppe |
| 200C | 514054993 | Front Lower Half Enveloppe |
| 200E | 514054990 | Rear Lower Half Enveloppe |
| 200F | 293150091 | Henrob Rivet |
| 200G | XXX | Not Available As Spare Parts |
| 200K | XXX | Not Available As Spare Parts |
| 200L | 514054408 | Retaining Strap |
| 200M | 514054409 | Retaining Strap |
| 200N | 514054410 | Retaining Strap |
| 200P | 514053499 | Retaining Strap |
| 200R | 514053643 | Spring |
| 250 | 514054275 | Bumper |
| 260 | 293150103 | Pop Rivet 3/16" |
| 300 | 514054174 | Exhaust Gasket |
| 400C | 514054967 | LH Deflector |
| 400D | 514054711 | RH Insulating Wool |
| 400E | 514054299 | LH Insulating Wool |
| 400F | 390910000 | Pop Rivet 3/16” |
| 400G | 514054274 | Lower Stopper |
| 400H | 514054496 | Lower Stopper |
| 410 | 514054606 | Upper Stopper |
| 500 | 415107100 | Spring |
| 510 | 514054974 | Spring Bracket, 5mm hole |
| 520 | 390402200 | Pop Rivet 3/16" |
| 530 | 514054974 | Spring Bracket, 5mm hole |
| 540 | 390402200 | Pop Rivet 3/16" |
| 550 | 514054975 | Spring Bracket, 8.0mm hole |
| 560 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 570 | XXX | Not Available As Spare Parts |
| 580 | XXX | Not Available As Spare Parts |
| 590 | XXX | Not Available As Spare Parts |
| 595 | XXX | Not Available As Spare Parts |
| 600 | 514054488 | Reflective Sheet |
| 610 | 514054817 | Heat Shield |
| 650 | XXX | Not Available As Spare Parts |
| 660 | XXX | Not Available As Spare Parts |
