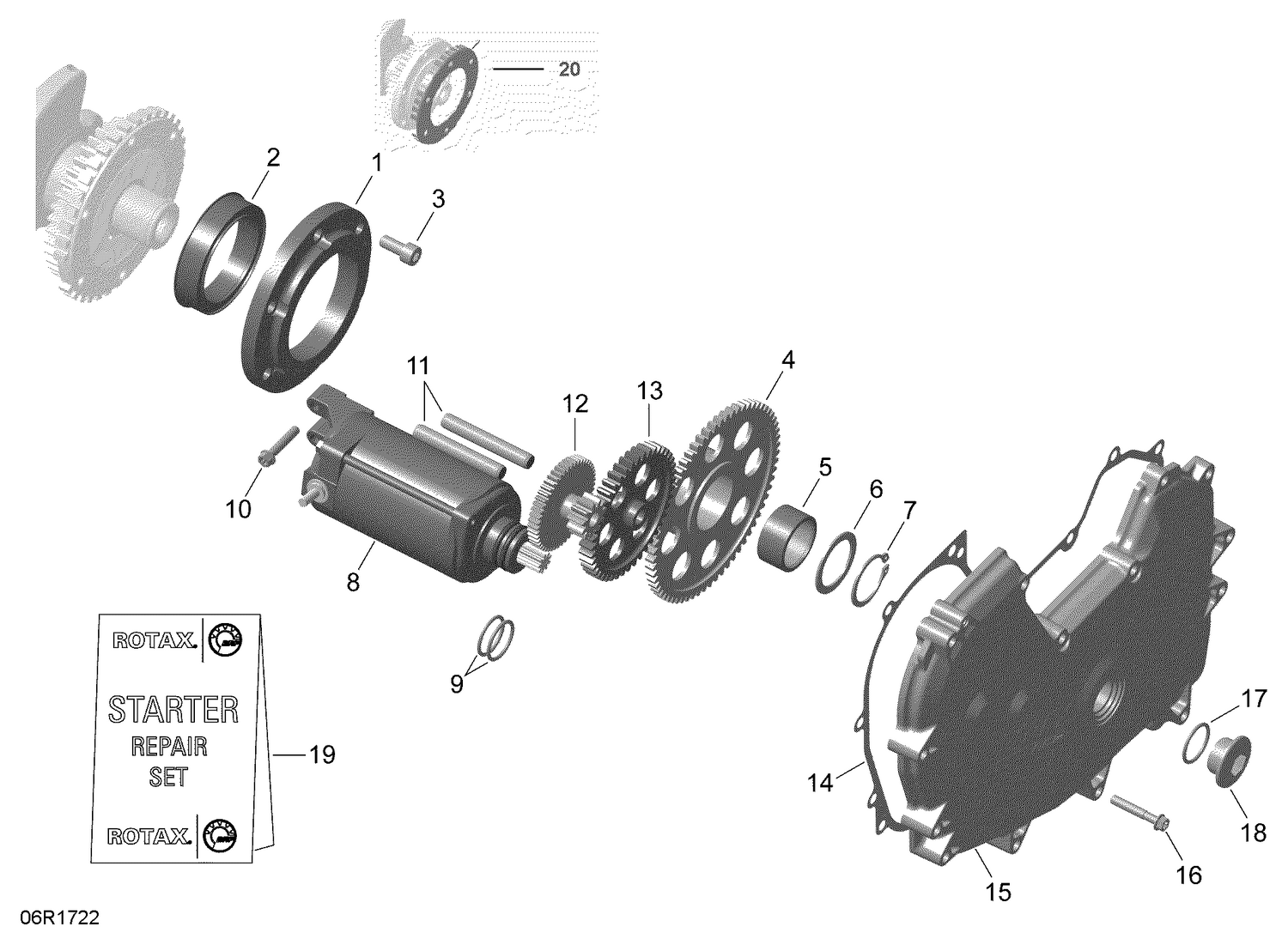

01- ROTAX - Electric Starter
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420458012 | Sprag Clutch Housing |
| 2 | 420659119 | Sprag Clutch |
| 3 | 420641509 | Socket Head Screw M8 X1 8 |
| 5 | Not | Available As Spare Part - Bushing |
| 6 | 420427111 | Thrust Washer |
| 7 | 420945720 | Circlip |
| 9 | 420250145 | O-Ring |
| 10 | 420440647 | Torx Flange Screw M6 X 30 |
| 11 | 420229472 | Pin Cylindrical |
| 12 | 420435382 | Double Gear |
| 13 | 420435390 | Gear 44 Teeth |
| 14 | 420450010 | Gasket |
| 15 | 420210290 | Cover |
| 16 | 420440274 | Torx Flange Screw M6 X 35 |
| 17 | 420430783 | O-Ring |
| 18 | 420241635 | Plug Screw M24 X 1.5 This part replaces 420241632. |
| 19 | 420881145 | Carbon Brush Set |
