Parts Catalog

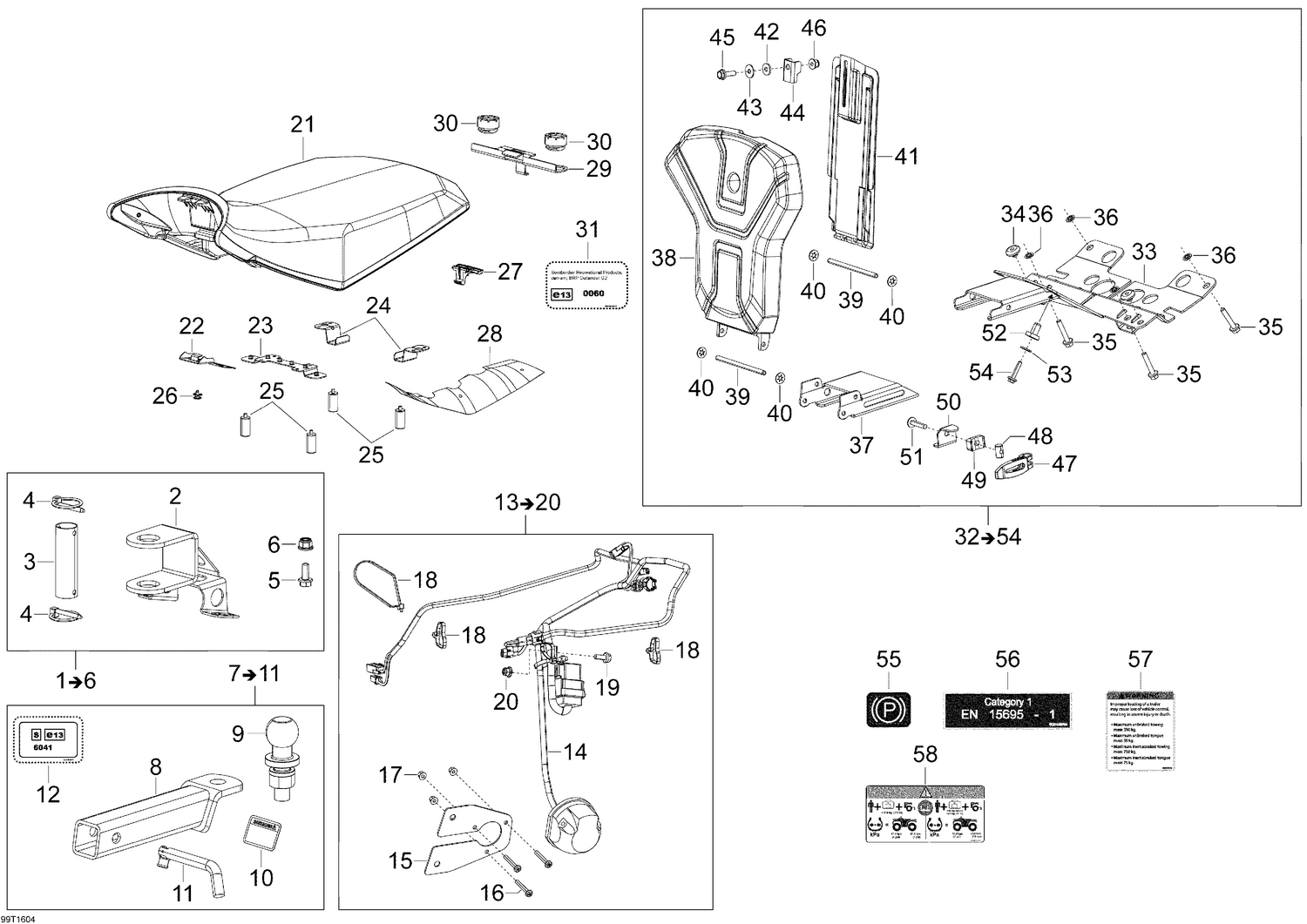

11- T3 Parts (MAX XTP Models)

Parts (53)

Ref	Part Number	Description
2	705205025	Front Coupling Device
3	605456511	Pin
4	605456518	Pin
5	207682044	Hex. Flange Screw M8 X 20
6	233281414	Hex. Flange Elastic Nut M8
8	Not	Available As Spare Part - Ball Mount
9	Not	Available As Spare Part - Coupling Ball
10	Not	Available As Spare Part - Warning Decal
11	705204490	Hitch Pin
12	605456545	Hitch Decal
14	Not	Available As Spare Part - Rear Light Harness
15	605356523	Plug Support Plate
16	205053588	Socket Head Screw M5 X 35
17	233251434	Flange Elastic Nut M5 This part replaces 233251414.
18	414115200	Tie-Rap 180 mm
19	207661644	Hex. Flange Screw M6 X 16
20	233261414	Hex. Flange Elastic Nut M6 x 1.0
21	708002208	Seat Ass'y
22	605456520	Front Bottom Support
23	510005986	Support Central Cushion
24	510005988	Support Rear Cushion
25	605456546	RUBBER DAMPER - Call your local BRP dealership
26	293150067	Rivet
27	708000909	Latch
28	705005761	HEAT SHIELD - Call your local BRP dealership
29	705204621	Support Rear Seat
30	708000760	Bumper Rubber
31	605456593	Decal
33	708001796	Support
34	605452114	Plug
35	207663534	HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership
36	732610072	Push Nut
37	708001797	Sliding Rail
38	708001794	Backrest
39	605456662	Pin
40	36084	Safety Washer
41	708001798	Sliding Cover
42	250200024	Rubber Washer 5 mm
43	20117	Washer
44	708001799	Sliding Guide
45	207662054	Hex. Flange Screw M6 X 20
46	233261494	Hex. Flange Elastic Nut M6
47	506152646	LEVER - Call your local BRP dealership
48	506152647	Lever Pin
49	506152706	Compression Block
50	708301660	Lever Guide
51	250000634	Stainless Torx Screw M6 X 30
52	250100018	NUT M5 - Call your local BRP dealership
53	250200025	Washer M5
54	207652544	Hex. Flange Screw M5 X 25
55	605356244	P-Decal, T3
56	605456594	Cabin Decal, T3
57	605356505	Warning Decal
