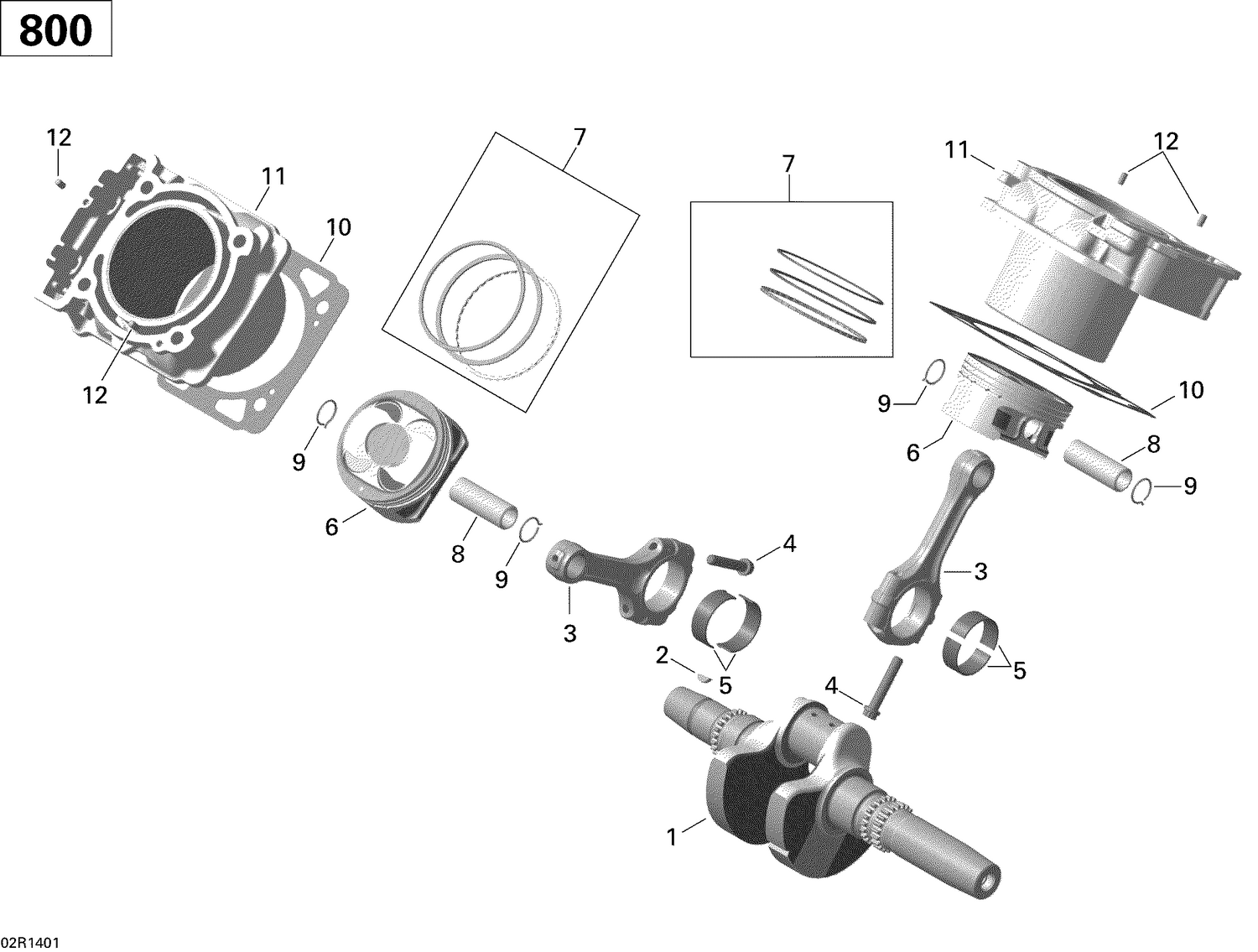

01- Crankshaft, Piston And Cylinder
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420219746 | Crankshaft Ass'y This part replaces 420219745. |
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 4 | 420641645 | Connecting Rod Screw M8 X 1 This part replaces 420641640. |
| 5 | 420233980 | Plain Bearing 40 X 43 X 15 |
| 7 | 420296774 | Piston Ring Set |
| 8 | 420216270 | Piston Pin |
| 9 | 420845107 | Piston Circlip This part replaces 420845109. |
| 10 | 420630211 | Gasket Aramid This part replaces 420630210. |
| 11 | 420413434 | Cylinder With Sleeve This part replaces 420613581. |
