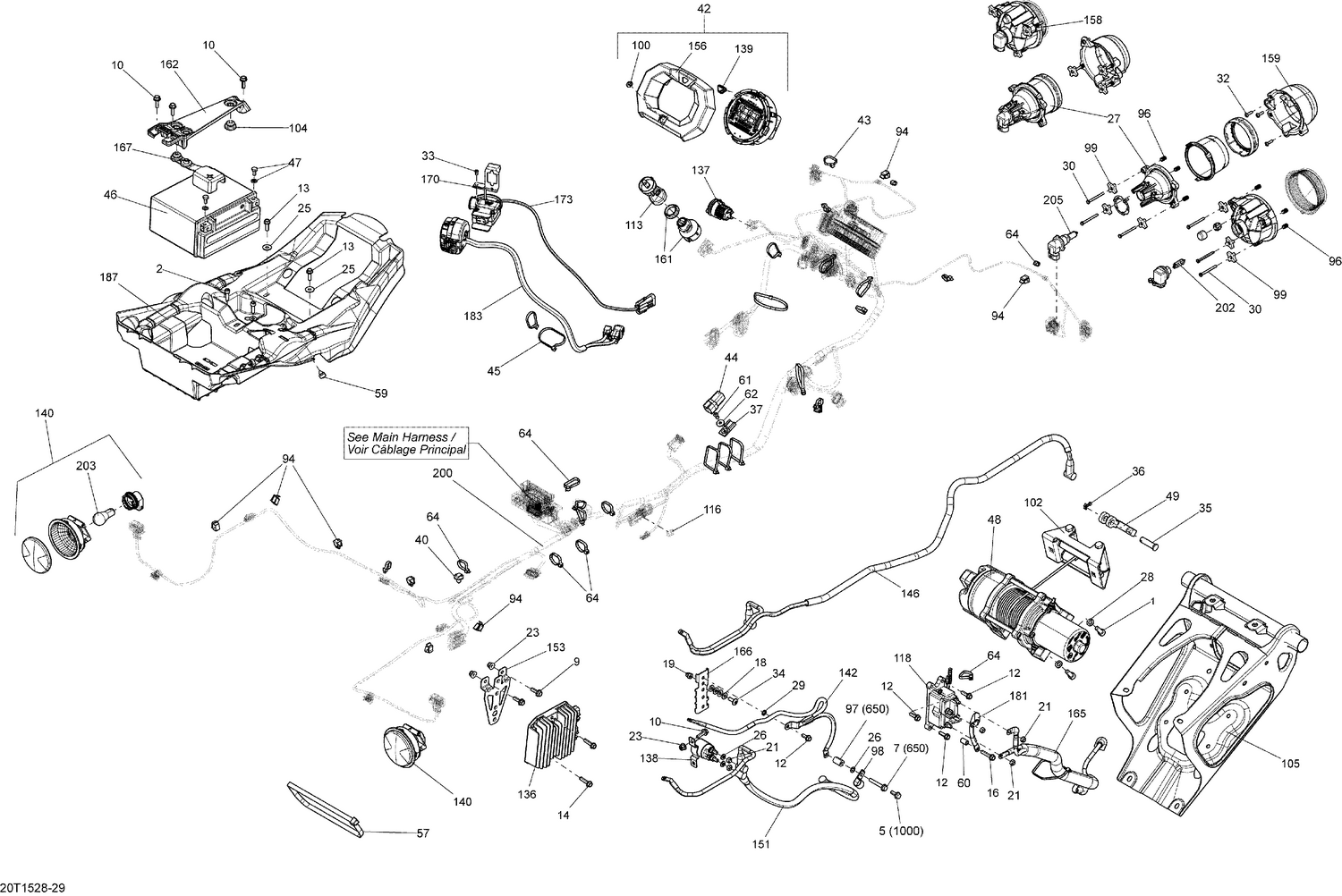

10- Electrical System _20T1528
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205082044 | Socket Head Screw M8 X 20 |
| 2 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 5 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 7 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 207662054 | Hex. Flange Screw M6 X 20 |
| 12 | 210262040 | Hex. Flange Screw M6 X 20 |
| 13 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 14 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 16 | 210264040 | Hex. Flange Screw M6 X 40 |
| 18 | 224061121 | Flat Washer |
| 19 | 232361493 | Domed Nut M6 |
| 21 | 232561434 | Elastic Stop Nut M6 |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 234062670 | Stainless Steel Flat Washer |
| 26 | 234161601 | Lock Washer Helical M6 |
| 27 | 710002525 | High Beam Ass'y |
| 28 | 234181401 | Lock Washer 8 mm |
| 29 | 234461608 | External Serrated Lock Washer 6 mm |
| 30 | 250000718 | Hex. Screw K40 X 45 |
| 32 | 250000723 | Phillips Screw K40 X 16 |
| 33 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 34 | 250000717 | Torx Head Screw M6 X 16 |
| 35 | 250400021 | Clevis Pin |
| 36 | 250400022 | Cotter Pin |
| 37 | 270000141 | Clip |
| 40 | 293730040 | Mount Dart |
| 42 | 710003923 | Speedometer Ass'y |
| 42a | 415129320 | Lens |
| 43 | 293750002 | Tie Wrap 142 mm |
| 44 | 710003006 | Housing |
| 45 | 293750008 | Tie Wrap 368 mm |
| 46 | 410301203 | Battery YUASA YTX20L |
| 47 | 250000282 | Battery Bolt Kit |
| 48 | 705008546 | WINCH - Call your local BRP dealership |
| 49 | 705014949 | Winch Hook Kit This part replaces 705002329. |
| 59 | 293830005 | Rubber Bumper |
| 60 | 293900078 | Sleeve |
| 61 | 390402300 | Pop Rivet 3/16" |
| 62 | 391301600 | Washer |
| 64 | 414115200 | Tie-Rap 180 mm |
| 94 | 414227300 | Clip |
| 96 | 517168600 | Spring |
| 98 | 518321570 | Open Clamp |
| 99 | 572106600 | Handle |
| 100 | 704904615 | BRP Logo13 mm |
| 102 | 715007699 | Fairlead_Roller Kit This part replaces 715000011. |
| 104 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 105 | 705016893 | Front Bumper Support This part replaces 705004165. |
| 113 | 710000817 | Black, Electronic Key |
| 113 | 710002183 | Grey, Electronic Key |
| 116 | 710000992 | Clip |
| 118 | 710001000 | Winch Solenoid |
| 136 | 710001191 | Voltage Regulator |
| 137 | 710001248 | DC Outlet |
| 138 | 710007777 | Starter Relay This part replaces 710001364. |
| 139 | 710001473 | Button |
| 142 | 710004382 | Ground Cable This part replaces 710004183. |
| 146 | 710004375 | Connector Ass'y This part replaces 710001748. |
| 151 | 710001750 | POSITIVE CABLE - Call your local BRP dealership |
| 153 | 710001752 | Rectifier Support |
| 156 | 710002092 | Trim Ring |
| 158 | 710006177 | Low Beam This part replaces 710002191. |
| 159 | 710002291 | RH High Front Housing |
| 159 | 710002292 | LH High Front Housing |
| 161 | 710008400 | Ignition Switch This part replaces 710003847. |
| 162 | 710009129 | Retaining Plate This part replaces 710002404. |
| 165 | 710004378 | Winch Cables This part replaces 710002560. |
| 166 | 710004118 | Connector Bracket |
| 167 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 170 | 710002631 | Winch Switch Support |
| 173 | 710002724 | Winch Switch |
| 181 | 710003003 | CABLE_NEGATIVE - Call your local BRP dealership |
| 187 | 710008370 | Battery Support This part replaces 710003990. |
| 200 | 710005005 | Main Harness This part replaces 710003626. |
| 202 | 715900141 | Bulb 12V 55W |
| 203 | 520000758 | Bulb |
