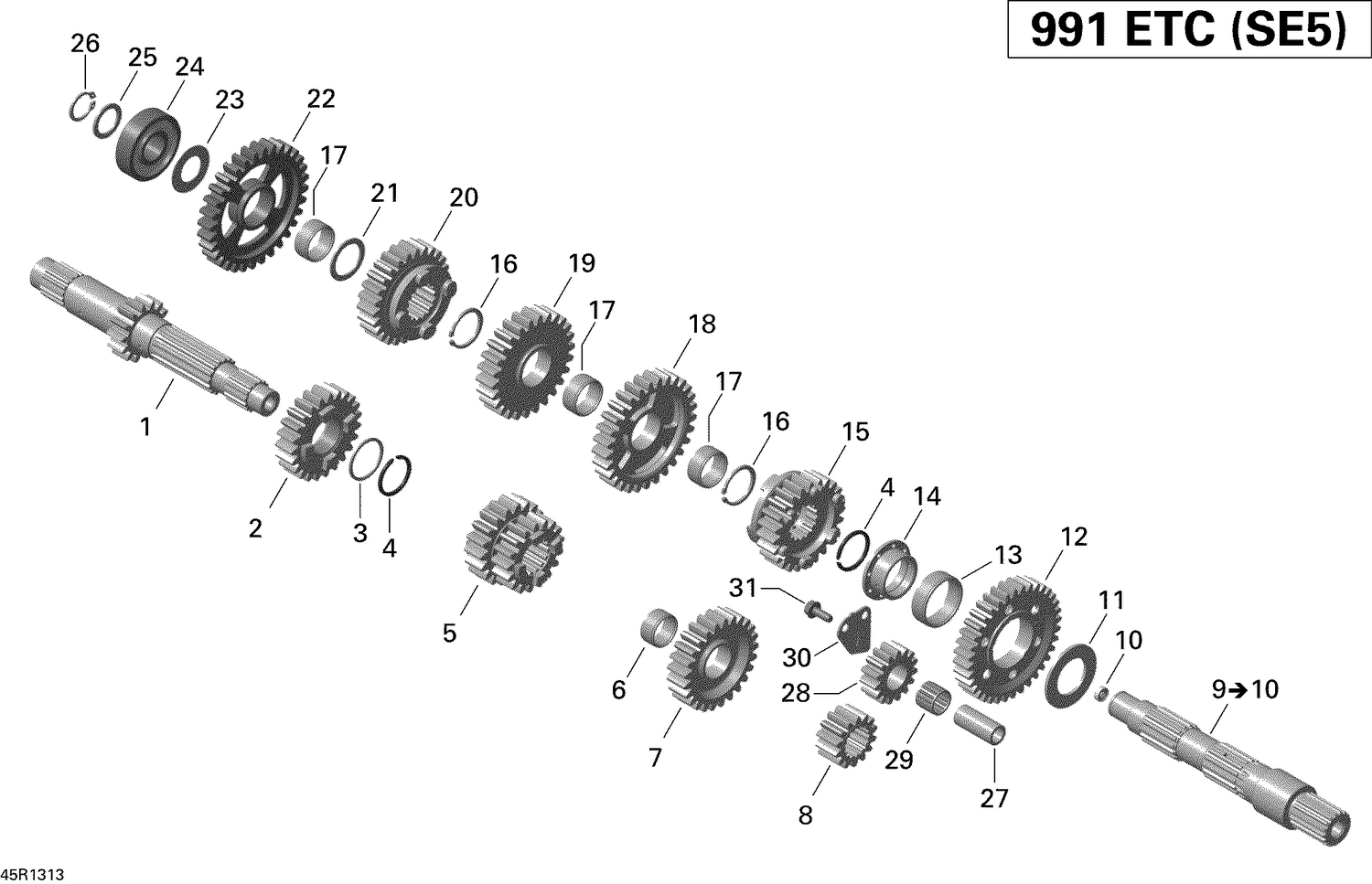

| Ref | Part Number | Description |
|---|
| 1 |
420481035 |
GEAR SET 1RST SPEED - Call your local BRP dealership This part replaces 420620631. |
| 2 |
420481045 |
Gear Set This part replaces 420434447. |
| 3 |
420627122 |
Thrust Washer This part replaces 420627120. |
| 4 |
420245817 |
Snap Ring - SE5 This part replaces 420245815. |
| 5 |
420481040 |
Gear Set This part replaces 420434411. |
| 6 |
420232530 |
Needle Bearing |
| 7 |
420481050 |
GEAR SET - Call your local BRP dealership This part replaces 420434462. |
| 8 |
420481055 |
Gear Set This part replaces 420434483. |
| 10 |
420930500 |
Oil Seal |
| 11 |
420626381 |
Thrust Ring This part replaces 420626380. |
| 12 |
420481055 |
Gear Set This part replaces 420434503. |
| 13 |
420632197 |
Needle Bearing This part replaces 420632195. |
| 14 |
420632530 |
Bushing |
| 15 |
420481050 |
GEAR SET - Call your local BRP dealership This part replaces 420434472. |
| 16 |
420845772 |
Retaining Ring This part replaces 420845775. |
| 17 |
420632070 |
Needle Bearing |
| 18 |
420481040 |
Gear Set This part replaces 420434422. |
| 19 |
420481040 |
Gear Set This part replaces 420434432. |
| 20 |
420481045 |
Gear Set This part replaces 420434452. |
| 21 |
420427106 |
Washer |
| 22 |
420481035 |
GEAR SET 1RST SPEED - Call your local BRP dealership |
| 23 |
420827110 |
SHIM - Call your local BRP dealership |
| 24 |
420832144 |
BALL BEARING - Call your local BRP dealership |
| 25 |
420227442 |
Thrust Washer |
| 26 |
420945665 |
Retaining Ring |
| 27 |
420229450 |
BOLT - Call your local BRP dealership |
| 28 |
420481055 |
Gear Set This part replaces 420434372. |
| 29 |
420432034 |
Needle Cage This part replaces 420432030. |
| 30 |
420224740 |
LOCKING TIE - Call your local BRP dealership |
