Home / BRP / STERN DRIVE / 1993 / 5.80 / 584DPEJVB 1993 / TRANSOM MOUNT

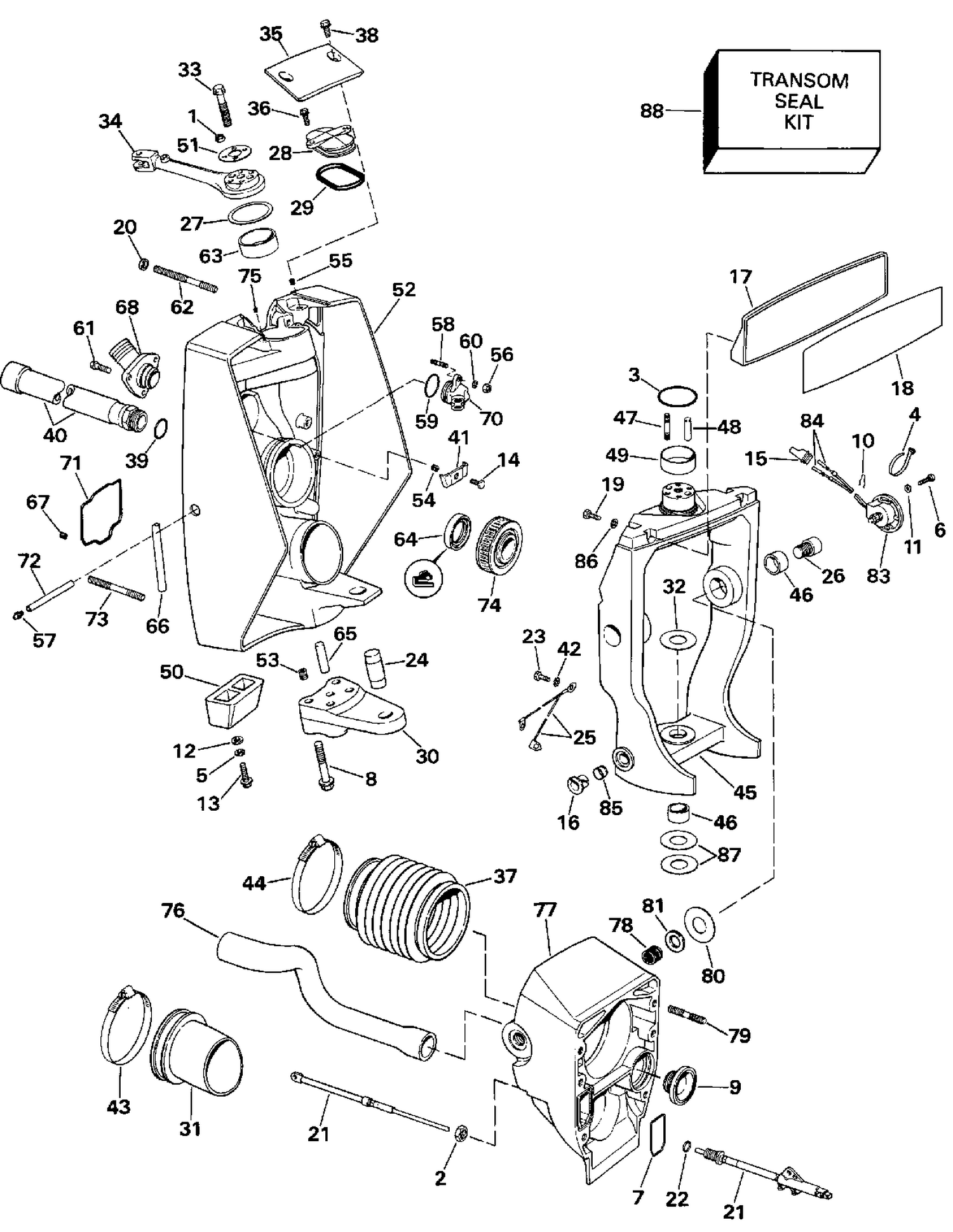

TRANSOM MOUNT

TRANSOM MOUNT

Parts (68)

RefPart NumberDescription
2 3852848 LOCKNUT, Shift cable This part replaces 0913814.
7 3852842 SEAL, Shift cable passage This part replaces 0913806.
8 3852957 SCREW, Support housing This part replaces 0914020.
9 3855041 BARB & SEAL, Water inlet This part replaces 0913807.
10 3852555 RETAINER, Plug This part replaces 0911809.
11 3853458 WASHER, Trim sender This part replaces 0915158.
13 0329055 SCREW, Anode
15 3853564 CONNECTOR This part replaces 0915841.
16 3853423 BUSHING, Pivot pin This part replaces 0915050.
17 3854735 BRACKET, Applique This part replaces 0913827.
18 3853334 APPLIQUE, Bracket This part replaces 0914802.
20 3852852 SEAL, Transom stud This part replaces 0913819.
21 0987678 SHIFT CABLE ASSY.
22 0912452 O-RING Shift cable
24 3852728 SHAFT, Steering pivot This part replaces 0913542.
26 3852854 PIVOT SCREW This part replaces 0913821.
27 3852554 THRUST WASHER, Steering arm This part replaces 0911807.
28 3850965 CAP & SEAL This part replaces 0986356.
29 3852841 SEAL, Cap This part replaces 0913804.
30 3852856 BRACKET, Steering support This part replaces 0913824.
31 3853466 BOOT, Exhaust This part replaces 0915179.
32 3852557 THRUST WASHER This part replaces 0911818.
33 3852591 SCREW, Steering arm This part replaces 0912306.
34 3852379 STEERING ARM This part replaces 0913816.
35 3853931 COVER & INSERT This part replaces 0986162.
36 3852473 SCREW, Cap to gimbal This part replaces 0909636.
37 3852857 BELLOWS, U-joint This part replaces 0913825.
38 3852568 SCREW, Cover This part replaces 0911859.
40 3856800 SLEEVE & CONNECTOR ASSY. This part replaces 0987322.
41 3852956 RETAINER, Oil line This part replaces 0914019.
42 0329241 RONDELLE
43 3852604 CLAMP, Exhaust This part replaces 0912667.
44 3852604 CLAMP, Exhaust This part replaces 0912667.
45 3854036 GIMBAL ASSY. This part replaces 0986952.
46 3852544 BEARING, Steering & tilt This part replaces 0911787.
47 3852588 STUD This part replaces 0912240.
48 3852545 DOWEL, Steering arm This part replaces 0911789.
49 3852571 SLEEVE, Gimbal This part replaces 0911901.
50 3853930 ANODE & INSERT ASSY. This part replaces 0986158.
51 3852585 PLATE, Steering arm This part replaces 0912155.
52 3854780 GIMBAL HOUSING ASSY. This part replaces 0986977.
53 3852541 INSERT, 7/16 -14 This part replaces 0911779.
54 0910901 INSERT
55 3852567 INSERT This part replaces 0911858.
59 0322501 O-RING, Manifold block
60 0329241 RONDELLE
62 3852546 STUD, Transom, long This part replaces 0911792.
63 3852547 BEARING, Steering This part replaces 0911794.
64 3852548 SEAL, Driveshaft This part replaces 0911795.
65 3852549 PIN, Steering support This part replaces 0911796.
66 3852850 SEAL, Transom This part replaces 0913817.
67 3852953 INSERT, Exhaust pipe This part replaces 0914008.
68 3852844 BARB, Water outlet This part replaces 0913808.
70 3852847 MANIFOLD BLOCK This part replaces 0913813.
71 3852846 SEAL, Exhaust pipe This part replaces 0913810.
72 3852853 TUBE, Grease This part replaces 0913820.
73 3852576 STUD, Transom, short This part replaces 0911920.
74 3853807 BEARING ASSY., U-joint This part replaces 0983937.
75 3852526 INSERT This part replaces 0911510.
76 3852845 HOSE, Water inlet This part replaces 0913809.
77 3855042 PIVOT HOUSING ASSY. This part replaces 0987066.
78 3852698 INSERT, Pivot screw This part replaces 0913412.
79 3852551 STUD, Pivot to gear housing This part replaces 0911798.
80 3852558 WASHER, Gimbal to pivot hsg. This part replaces 0911820.
81 3852697 THRUST WASHER, Pivot screw This part replaces 0913411.
83 3853920 TRIM SENDER ASSY. This part replaces 0986143.
85 3853424 GROMMET, Pivot pin This part replaces 0915051.
87 3852557 THRUST WASHER This part replaces 0911818.
