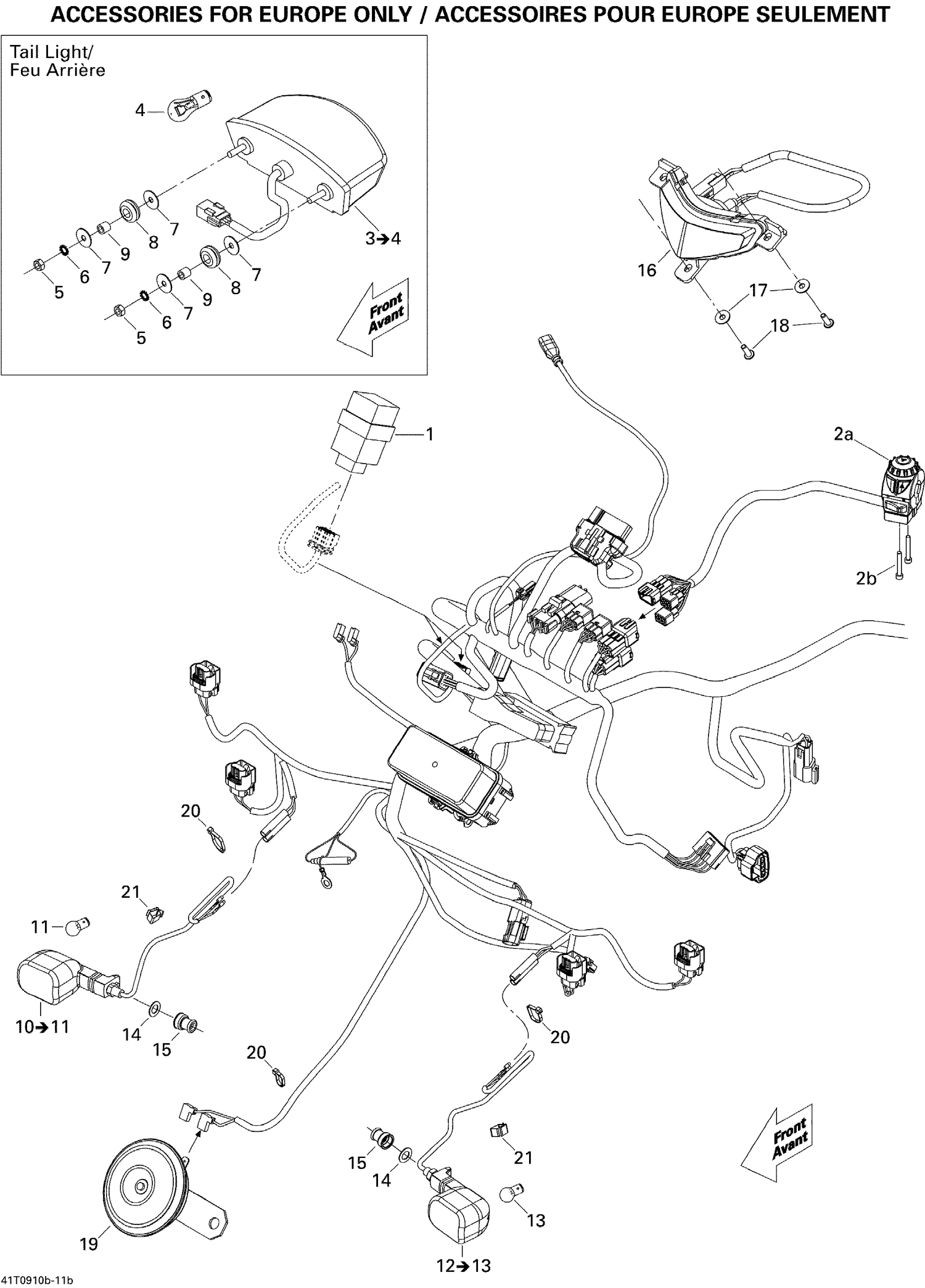

| Ref | Part Number | Description |
|---|
| 1 |
710001447 |
FLASHER UNIT - Call your local BRP dealership |
| 2a |
710001428 |
Multi function Handle |
| 2b |
207141260 |
Screw Hex. M4 X 12 |
| 4 |
520000758 |
Bulb This part replaces 410504100. |
| 5 |
232061600 |
Hex. Nut M6 |
| 6 |
234461608 |
External Serrated Lock Washer 6 mm |
| 7 |
224060201 |
Flat Washer |
| 8 |
709000582 |
Grommet This part replaces 293720053. |
| 9 |
293900105 |
Bushing This part replaces 293900045. |
| 11 |
Not |
Available As Spare Part - Flasher Bulb |
| 13 |
Not |
Available As Spare Part - Flasher Bulb |
| 14 |
503175800 |
Washer |
| 15 |
710001826 |
CAP GUARD - Call your local BRP dealership This part replaces 710000765. |
| 16 |
710001042 |
Day Light |
| 17 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 18 |
241641040 |
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership |
| 19 |
710004791 |
Horn This part replaces 710000983. |
| 20 |
414115200 |
Tie-Rap 180 mm |
