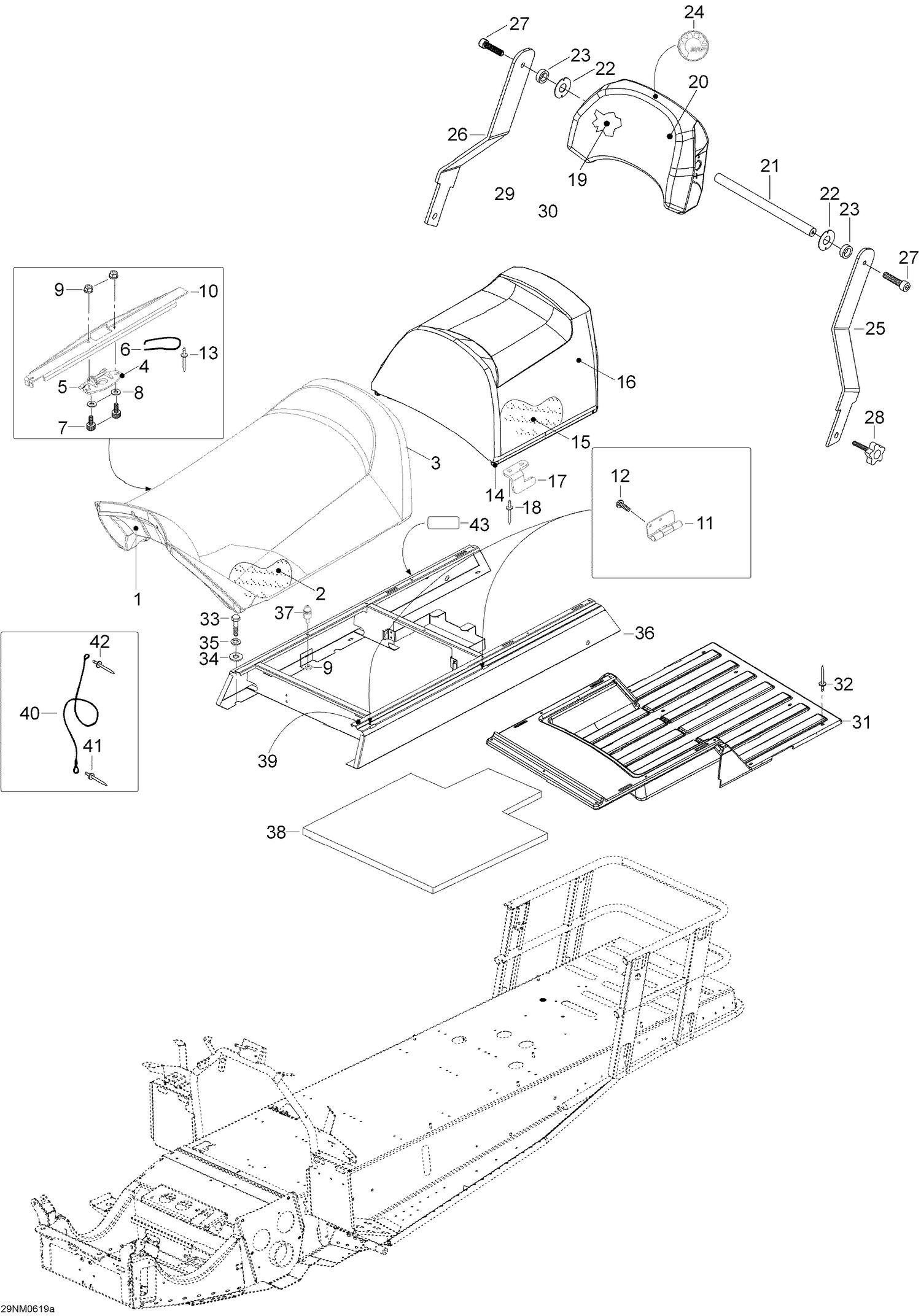

09- Seat 1
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605251388 | SEAT BASE, FRONT - Call your local BRP dealership |
| 2 | 605251389 | Foam. Front |
| 3 | 605251422 | Cover, Front |
| 4 | 269700109 | Latch Ass'y This part replaces 269700076. |
| 5 | 269700109 | Latch Ass'y This part replaces 269700077. |
| 6 | 269700017 | Latch Spring |
| 7 | M40276 | SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership |
| 8 | 234061410 | Flat Washer 6 mm |
| 9 | 232561414 | Elastic Stop Nut M6 |
| 10 | 605352483 | SUPPORT PLATE - Call your local BRP dealership |
| 11 | 605351798 | Hinge |
| 12 | M40890 | Screw 4,2 X 16 |
| 13 | M36088 | Rivet |
| 14 | 605251390 | SEAT BASE, REAR - Call your local BRP dealership |
| 15 | 605251391 | Foam, Rear |
| 16 | 605251425 | Cover |
| 17 | 605351808 | LH HOOK - Call your local BRP dealership |
| 17 | 605352007 | RH HOOK - Call your local BRP dealership |
| 18 | 36087 | Rivet This part replaces M36087. |
| 19 | 510004365 | BACKREST FOAM - Call your local BRP dealership |
| 20 | 605353881 | COVER - Call your local BRP dealership |
| 21 | 510004377 | Upper Backrest Axle |
| 22 | 510004379 | Washer |
| 23 | 510004378 | Rubber Shim |
| 24 | 219902477 | BRP Logo, Vinyl |
| 25 | 605353779 | LH ARM - Call your local BRP dealership |
| 26 | 605353963 | RH ARM - Call your local BRP dealership |
| 27 | 205982586 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 28 | 510003533 | Handle M8 X 35 |
| 29 | M20031 | Washer |
| 30 | 414484400 | O-Ring |
| 31 | 605151397 | COVER - Call your local BRP dealership |
| 32 | M36036 | Black, Rivet |
| 33 | 207161644 | Hex. Screw M6 X 16 |
| 34 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 35 | 234161471 | Lock Washer M6, Black |
| 36 | 605251807 | SEAT BOX - Call your local BRP dealership |
| 37 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 38 | 605352460 | FOAM - Call your local BRP dealership |
| 39 | M28413 | Sealing Strip |
| 40 | 293750070 | Seat Retainer Cable This part replaces M546777. |
| 41 | 36037 | Black Rivet This part replaces M36037. |
