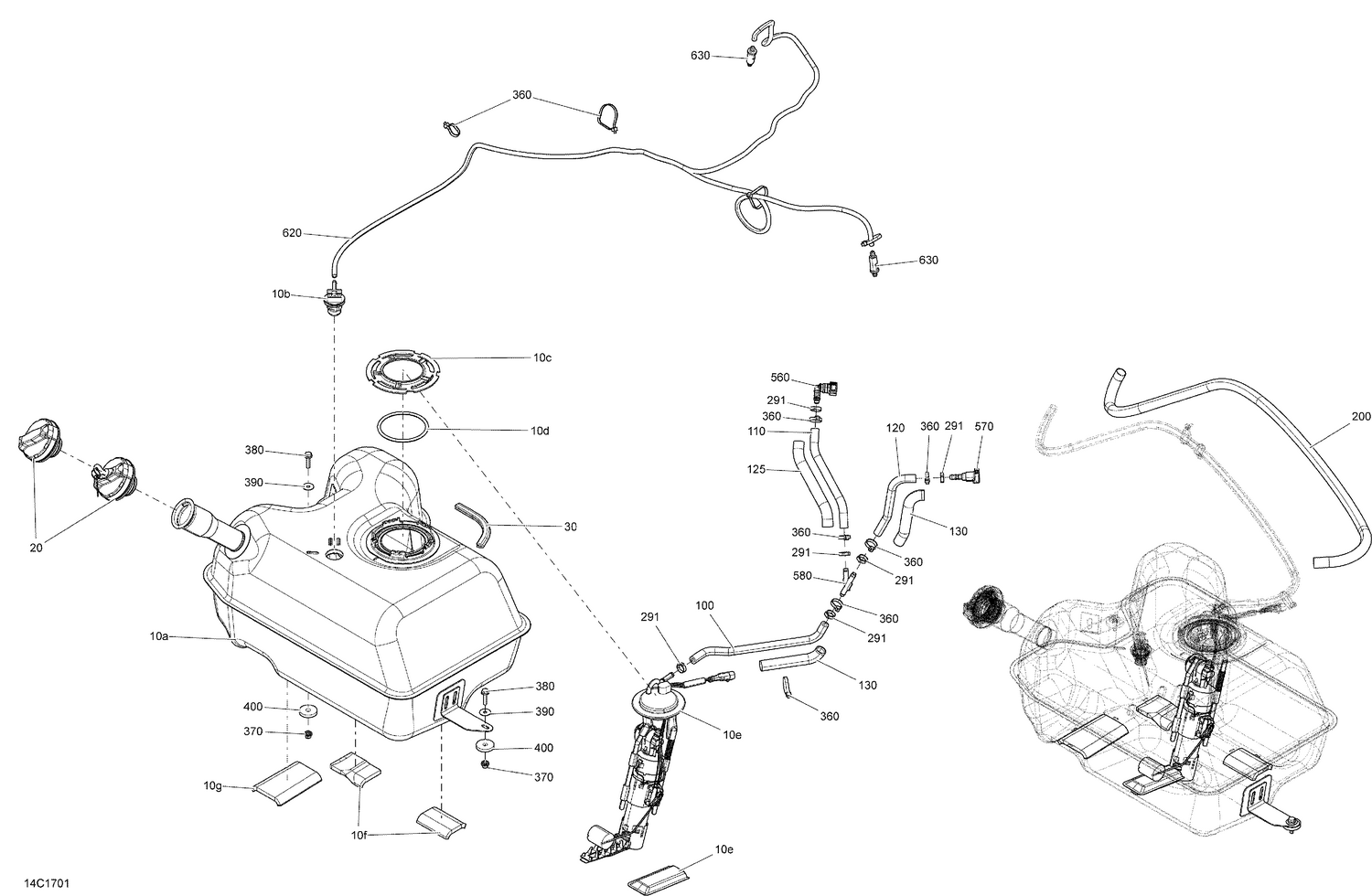

02- Fuel System - All Models
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709000753 | Fuel Tank |
| 10b | 709000413 | Rollover Valve This part replaces 709000127. |
| 10c | 709000274 | Ring |
| 10d | 709000275 | O-Ring |
| 10e | 709000759 | Fuel Pump |
| 10f | 709000288 | Neoprene Pad |
| 10g | 709000289 | NEOPRENE PAD - Call your local BRP dealership |
| 30 | 219704353 | Was 271000110 Protection Trim |
| 100 | 219704440 | Was 709000163 Fuel Line |
| 110 | 219704440 | Was 709000163 Fuel Line |
| 120 | 219704440 | Was 709000163 Fuel Line |
| 125 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 130 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 200 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 291 | 293650047 | Crimp Clamp, 15.3-706R |
| 360 | 414115200 | Tie-Rap 180 mm |
| 370 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 380 | 207662544 | Hex. Flange Screw M6 X 25 |
| 390 | 224060201 | Flat Washer |
| 400 | 293830037 | Rubber Washer |
| 560 | 275500700 | Quick Attach 90° |
| 580 | 293710136 | Y-Fitting, 5/16'' |
| 620 | 219704410 | Polyurethane Hose 10000Mm Long |
