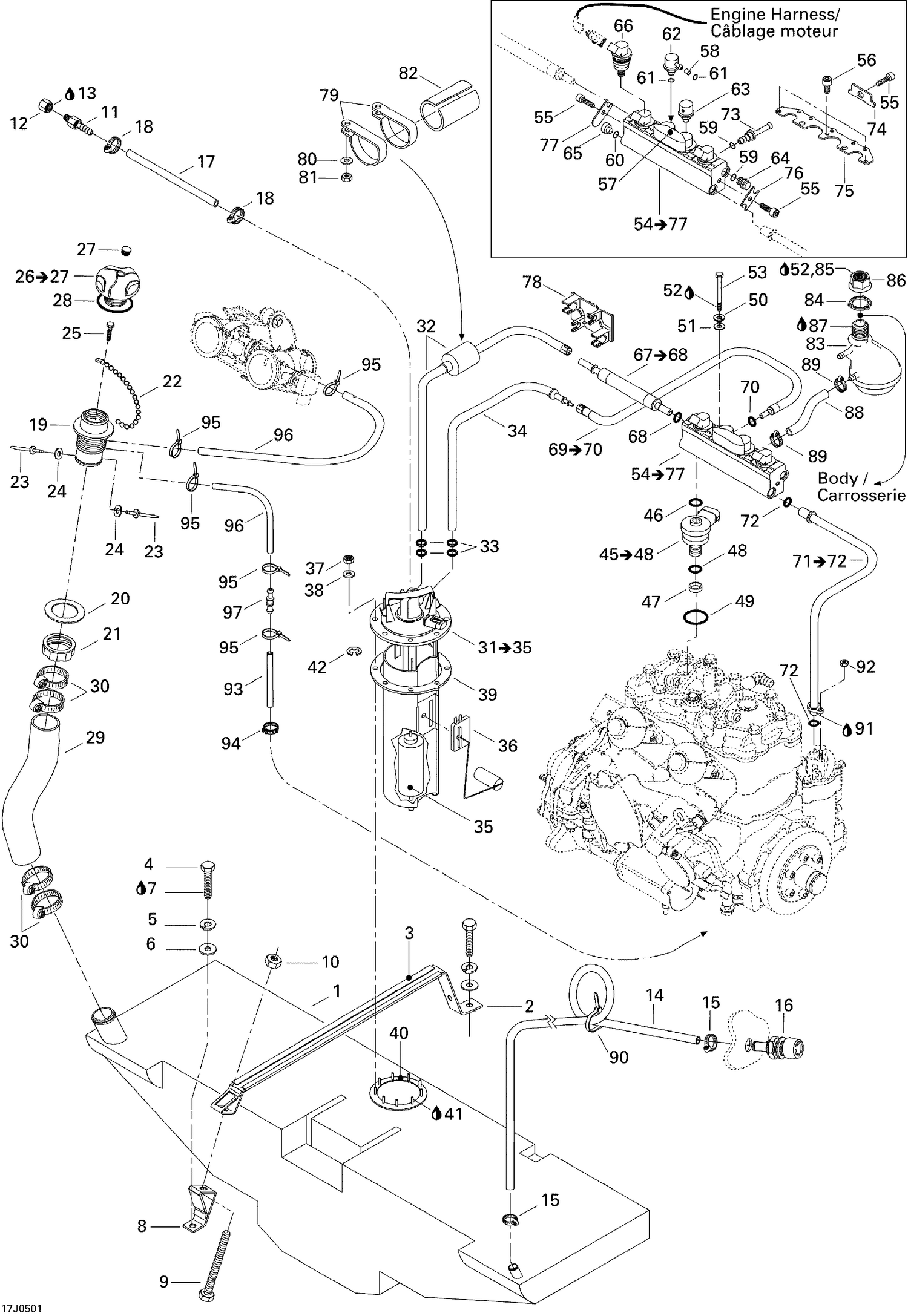

02- Fuel System

02- Fuel System

Parts (88)

RefPart NumberDescription
1 204560326 FUEL TANK ASS'Y - Call your local BRP dealership
2 204560181 FUEL TANK STRAP - Call your local BRP dealership
3 204560185 PROTECTOR PAD - Call your local BRP dealership
4 207183060 Hex. Screw M8 X 30
5 234181601 Lock Washer 8 mm, Stainless
6 234082600 Flat Washer 8 mm, Stainless
7 293800005 Loctite 271, 10 ml
8 275500252 TANK BRACKET - Call your local BRP dealership
9 207183560 HEX. SCREW M8 X 35 - Call your local BRP dealership
10 232581600 Hex. Elastic Nut M8
11 204560265 COUPLER - Call your local BRP dealership
12 204560263 Pipe Cap
13 219704454 Was 293800013 Loctite 56765
14 204560358 HOSE 16 MM - Call your local BRP dealership This part replaces 275500205.
15 293650069 NORMA CLAMP - Call your local BRP dealership
16 275500206 VENT BOAT - Call your local BRP dealership
17 219704357 Was 275500549 Hose 1/4"
18 293650121 NORMA CLAMP - Call your local BRP dealership
19 275500247 Filler Neck
20 293250029 Gasket
21 211100012 Filler Neck Nut, Fuel
22 275500015 Oil Cap Chain
23 293150057 Rivet 1/8”
24 234032600 Flat Washer M3, Stainless
25 241140060 Screw K40 X 10
27 293000034 Black, Snap Cap
28 293250017 Gasket
29 219700374 NECK FILLER HOSE - Call your local BRP dealership
30 293650081 Norma Clamp
32 204560290 SUPPLY HOSE ASS'Y - Call your local BRP dealership
33 293650030 Oetiker Clamp
34 204560291 Return Hose Ass'y
35 Not Available As Spare Part - Fuel Pump
36 204560266 Sensor Lever
37 232551200 Elastic Stop Nut 5 mm
38 234052400 Flat Washer 5 mm, Stainless
39 293250088 Gasket
40 275500679 C-Ring, 9 Studs This part replaces 275500616.
42 293370002 Circlip 5 mm
43 204560177 Hose 5/16”, Meter
44 293650070 NORMA CLAMP - Call your local BRP dealership
46 293300084 O-Ring
47 270600030 INJECTOR RING - Call your local BRP dealership
48 293300076 O-Ring
49 293300083 O-Ring
50 234181601 Lock Washer 8 mm, Stainless
51 234081600 Stainless, Flat Washer 8 mm
52 293800060 Loctite 243, 10 ml
53 207087060 HEX. SCREW M8 X 70 - Call your local BRP dealership
55 205061260 Socket Head Screw M6 X 12
56 205051260 SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership
57 Not Available As Spare Part - Air Tube
58 Not Available As Spare Part - O-Ring
59 293300069 O-RING - Call your local BRP dealership
60 275500598 O-Ring
61 Not Available As Spare Part - O-Ring
62 275500464 FUEL REGULATOR - Call your local BRP dealership
63 275500463 Air Regulator
64 204560304 Fuel Plug
65 Not Available As Spare Part - Air Passage Plug
66 275500460 Fuel Injector
68 293300069 O-RING - Call your local BRP dealership
70 Not Available As Spare Part - O-Ring
72 Not Available As Spare Part - O-Ring
73 Not Available As Spare Part - Air Return Adaptor
74 Not Available As Spare Part - Retainer Plate
75 Not Available As Spare Part - Retainer Plate
76 Not Available As Spare Part - Retainer Plate
77 Not Available As Spare Part - Retainer Plate
78 291001399 Clamp Tie
79 293650139 CLAMP - Call your local BRP dealership
80 234051500 Flat Washer 5 mm
81 232551600 Hex. Elastic Nut M5
82 204560191 NEOPRENE PAD - Call your local BRP dealership
83 270000569 Noise Reducer
84 293830027 SEAL WASHER - Call your local BRP dealership
85 219704458 Was 293800041 Loctite Primer 7649
86 211100020 SPECIAL NUT M27 - Call your local BRP dealership
87 296000309 Silicone Sealant 51388, 300 ml
88 276000084 HOSE-8MM. - Call your local BRP dealership
89 293650170 Tridon Gear Clamp
90 414115200 Tie-Rap 180 mm
91 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
92 232561600 Hex. Elastic Stop Nut M6
93 270000469 HOSE 3 MM - Call your local BRP dealership
94 293650105 Clamp
95 293750001 Tie Wrap 94 mm
96 219704352 Was 420660574 Pressure Hose 280 mm
