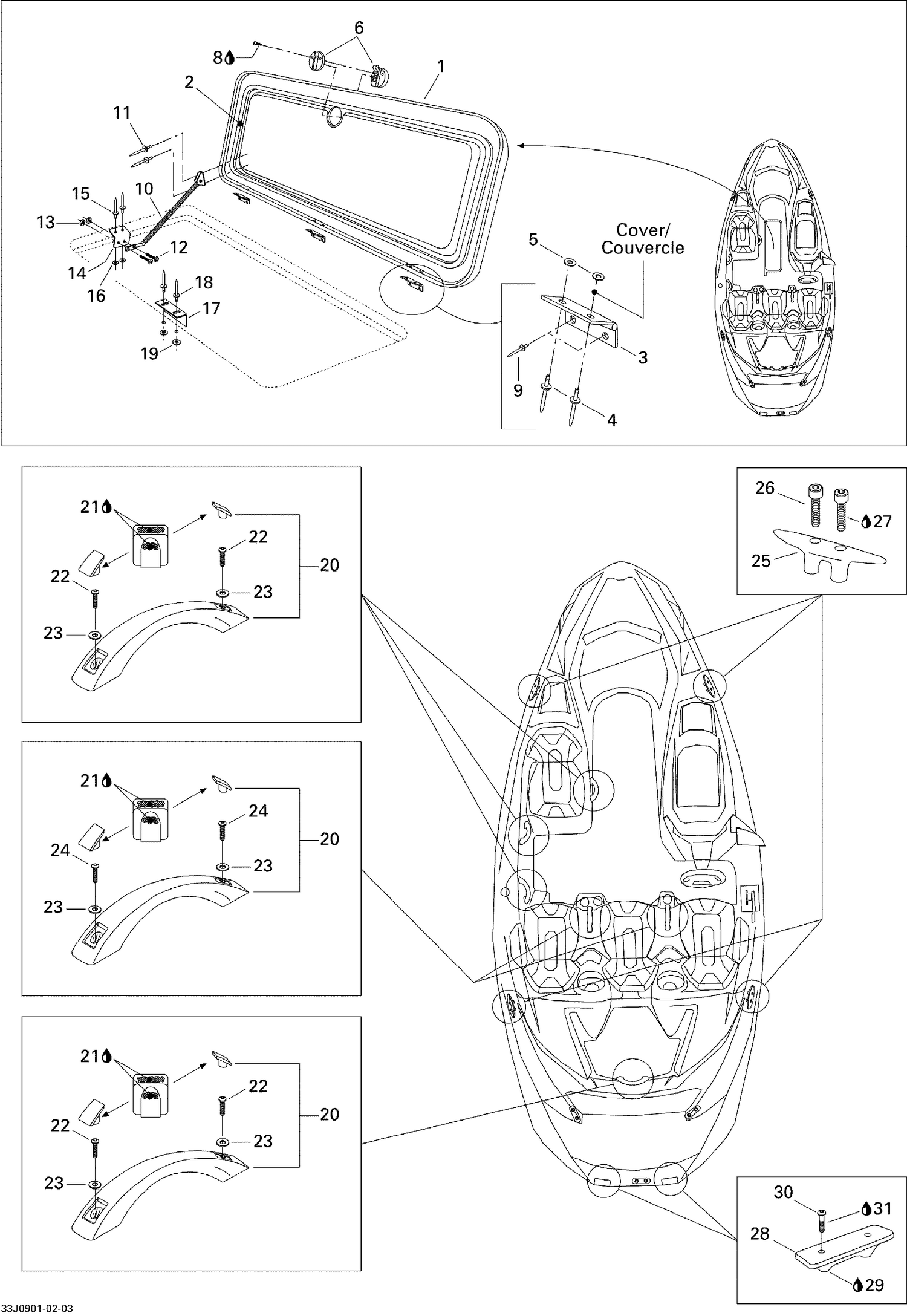

| Ref | Part Number | Description |
|---|
| 1 |
204072636 |
CENTRAL COVER - Call your local BRP dealership |
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
204072601 |
HINGE - Call your local BRP dealership |
| 4 |
293150037 |
Avdel Rivet 3/16" |
| 5 |
234051600 |
Flat Washer M5, Stainless |
| 6 |
204073347 |
LATCH ASS'Y - Call your local BRP dealership |
| 8 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 9 |
293150088 |
Pop Rivet 3/16" |
| 10 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 11 |
293150055 |
RIVET_POP 3/16 - Call your local BRP dealership |
| 12 |
250000231 |
PHILLIPS SCREW 6-32 X 3/8 - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Hex. Nut 6-32 |
| 14 |
Not |
Available As Spare Part - Spring Bracket |
| 15 |
293150043 |
Pop Rivet 3/16" |
| 16 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 17 |
204070060 |
KEEPER - Call your local BRP dealership |
| 18 |
293150088 |
Pop Rivet 3/16" |
| 19 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 20 |
204073190 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 22 |
205963060 |
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 23 |
234061600 |
Stainless Flat Washer M6 |
| 24 |
205464060 |
Socket Screw M6 X 40 |
| 25 |
204070592 |
CLEAT - Call your local BRP dealership |
| 26 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 29 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 30 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
