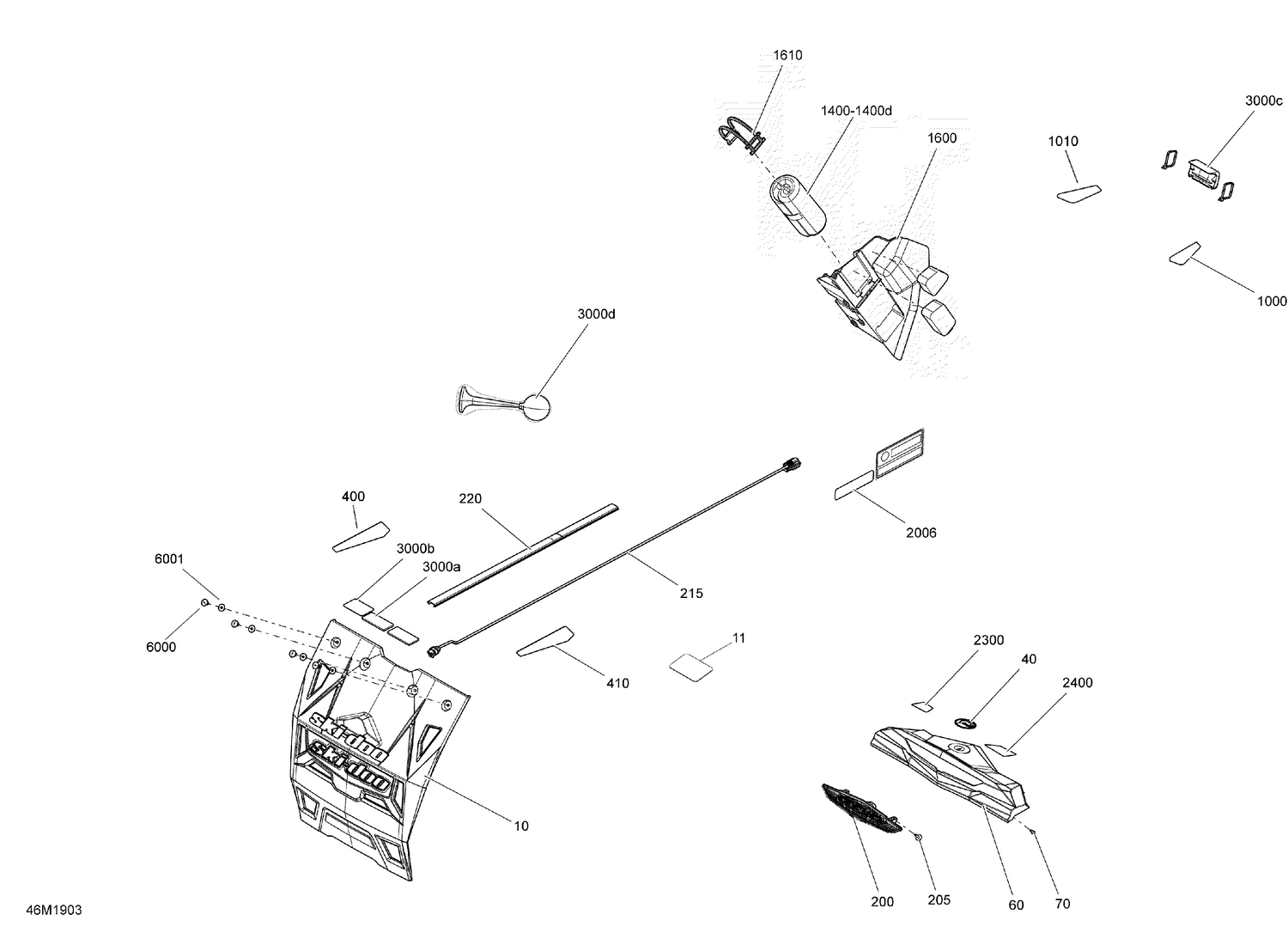

09- Utilities - 600 ACE - North America
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001342 | Snow Guard, Black W Alloy Grey Insert |
| 11 | 516005175 | Warning Decal, Track |
| 40 | 516008738 | BRP Logo 48mm |
| 60 | 511000810 | Deep Black, Light Fairing |
| 70 | 241141340 | Hex. Screw K40 X 13 |
| 200 | 520001143 | Rear Light |
| 205 | 250000725 | Screw M4 X 16 |
| 215 | 515178062 | Wiring Harness |
| 225 | 520000829 | Radiator Trim |
| 400 | 520001239 | Red Rh Rear Reflector |
| 410 | 520001238 | Red, LH Rear Reflector |
| 1000 | 520001237 | Yellow, RH Front Reflector |
| 1010 | 520001236 | Yellow, LH Front Reflector |
| 1400 | 520001591 | Tools Kit |
| 2300 | 516006914 | Security Label, XS |
| 2400 | 516005058 | Warning Decal, Safety |
| 3400 | 520001894 | English Operator Guide |
| 6000 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
