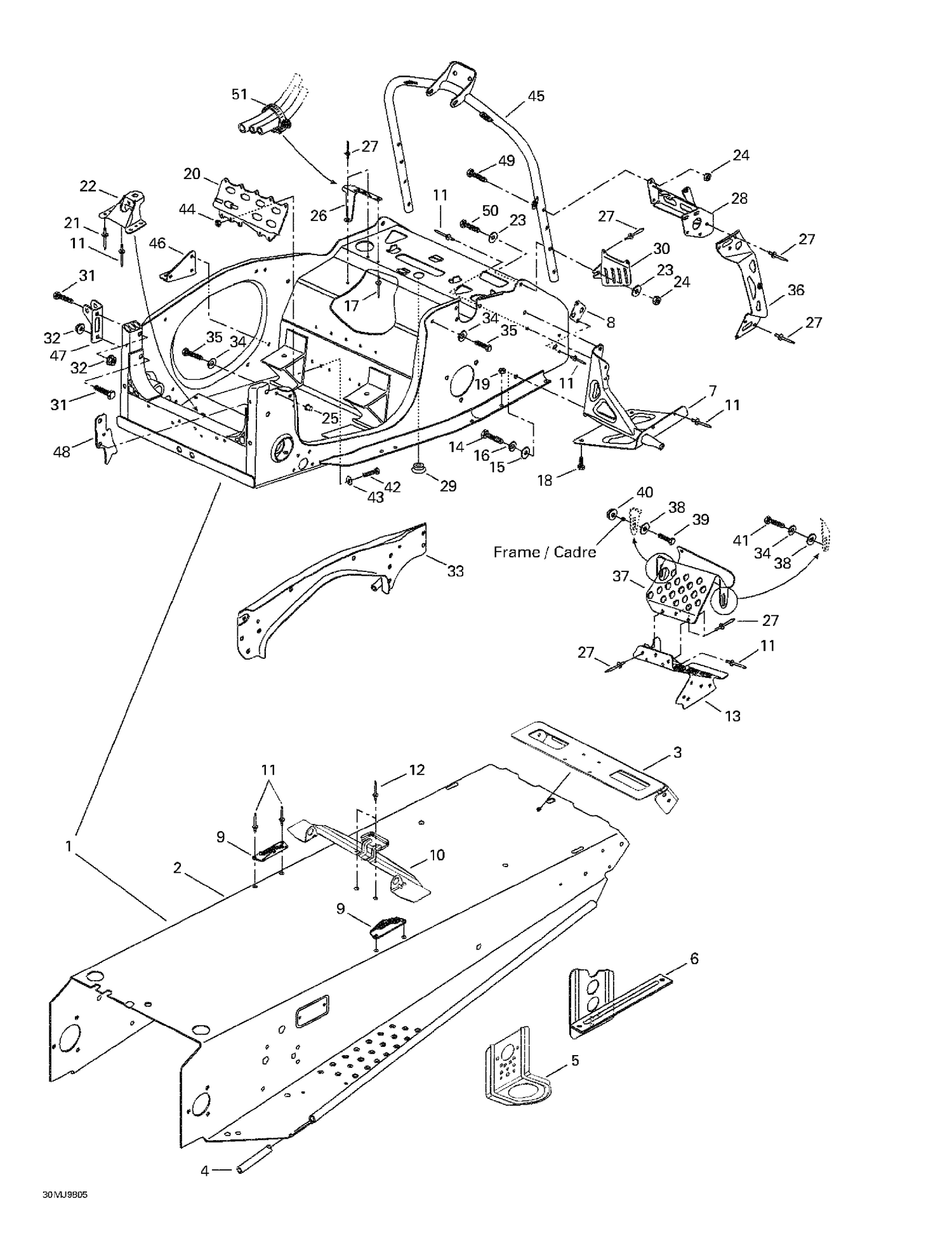

| Ref | Part Number | Description |
|---|
| 3 |
518317551 |
Cap-End |
| 4 |
518304746 |
FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 5 |
518312910 |
Front Bracket |
| 6 |
518318927 |
RH Rear Bracket |
| 7 |
518317564 |
RH Support |
| 8 |
518317533 |
Reinforcement |
| 9 |
517266900 |
RH Tank Bracket |
| 10 |
518317560 |
Seat Bracket |
| 11 |
390402200 |
Pop Rivet 3/16" |
| 12 |
390402400 |
Pop Rivet 3/16" |
| 13 |
518317529 |
RH Front Footrest |
| 14 |
207103544 |
Hex. Screw M10 X 35 This part replaces 222003565. |
| 15 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 16 |
224701170 |
Lock Washer 10 mm |
| 17 |
390407200 |
Pop Rivet 3/16” |
| 18 |
207151644 |
Hex. Screw M5 X 16 This part replaces 222051665. |
| 19 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 20 |
518317510 |
Steering Support |
| 21 |
390910300 |
HENROB RIVET - Call your local BRP dealership |
| 22 |
518317509 |
Pivot Arm Support |
| 23 |
224061121 |
Flat Washer |
| 24 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 25 |
293450275 |
Insert This part replaces 415107300. |
| 26 |
518317556 |
Guide |
| 27 |
390402200 |
Pop Rivet 3/16" |
| 28 |
518317542 |
RH Upper Bracket |
| 29 |
414859400 |
CAP - Call your local BRP dealership |
| 30 |
518317572 |
Belt Protector |
| 31 |
207085044 |
Hex. Screw M8 X 50 This part replaces 222085065. |
| 32 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 33 |
518317515 |
Strap |
| 34 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 35 |
207161844 |
Hex. Screw M6 X 18 This part replaces 222061865. |
| 36 |
518317520 |
RH Vertical Bracket |
| 37 |
518317531 |
RH Holding Toe |
| 38 |
224061201 |
Flat Washer |
| 39 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 40 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 41 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 42 |
207151444 |
Hex. Screw M5 X 14 This part replaces 222051465. |
| 43 |
234051410 |
Flat Washer M5 This part replaces 224051111. |
| 44 |
232551414 |
Elastic Stop Nut M5 This part replaces 228551045. |
| 45 |
518317534 |
Handle Steering Support |
| 46 |
518317553 |
Muffler Support |
| 47 |
518317518 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 48 |
518317503 |
Heat Shield |
| 49 |
207063044 |
Hex. Screw M6 X 30 This part replaces 222063065. |
| 50 |
207063544 |
Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 517267000 |
LH |
Tank Bracket 517267000 |
| 518317519 |
LH |
Shock Bracket 518317519 |
| 518317521 |
LH |
Vertical Bracket 518317521 |
| 518317530 |
LH |
Front Footrest 518317530 |
| 518317530 |
Repose-Pied |
Avant GA 518317530 |
| 518317532 |
LH |
Holding Toe 518317532 |
| 518317543 |
Attache |
Supérieure GA 518317543 |
| 518317543 |
LH |
Upper Bracket 518317543 |
| 518317565 |
Attache |
GA 518317565 |
| 518317565 |
LH |
Support 518317565 |
| 518318928 |
Attache |
Arrière GA 518318928 |
| 518318928 |
LH |
Rear Bracket 518318928 |
