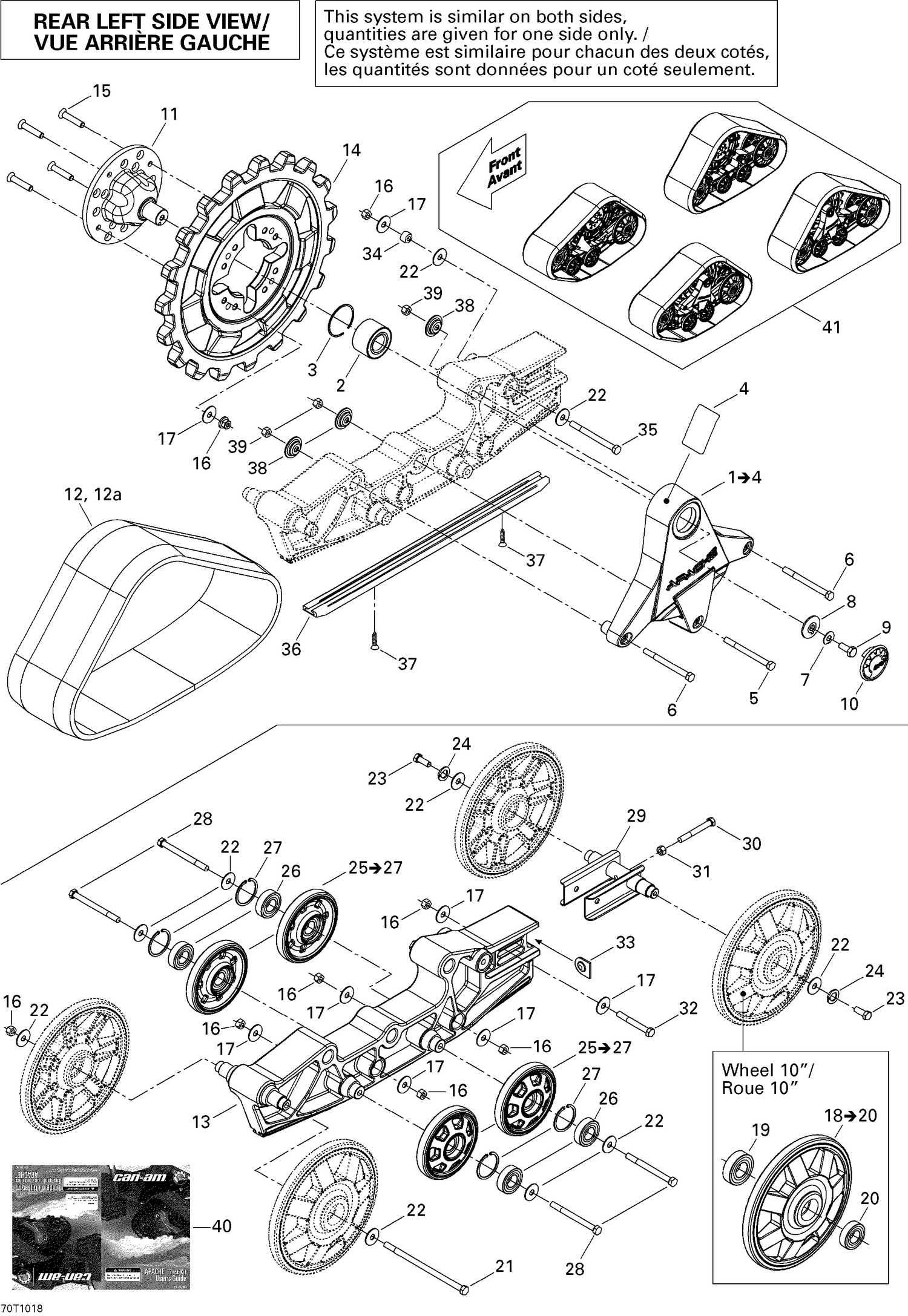

| Ref | Part Number | Description |
|---|
| 2 |
715002018 |
CONE BEARING KIT - Call your local BRP dealership |
| 3 |
293370019 |
Circlip |
| 4 |
704901283 |
Warning Label |
| 5 |
250000266 |
CARRIAGE BOLT 3/8-16X5 GR.5 - Call your local BRP dealership |
| 6 |
250000321 |
BOLT 3/8 - 16 X 4 1/2 GR: 5 ZINC - Call your local BRP dealership |
| 7 |
250200005 |
Conical Spring Washer M12 |
| 8 |
250200063 |
BACK-UP WASHER - Call your local BRP dealership |
| 9 |
250000268 |
HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 10 |
291002467 |
Bumper Plug |
| 11 |
705400536 |
MAIN AXLE - Call your local BRP dealership |
| 12 |
705501207 |
REAR TRACK - Call your local BRP dealership |
| 12 |
715500329 |
REAR TRACK WITH STUDS - Call your local BRP dealership |
| 13 |
705500800 |
LH REAR FRAME - Call your local BRP dealership |
| 13 |
705500821 |
RH REAR FRAME - Call your local BRP dealership |
| 14 |
705400537 |
SPROCKET - Call your local BRP dealership |
| 15 |
250000269 |
SCREW-SOCKET HD.CTSK. 3/8-16X2 - Call your local BRP dealership |
| 16 |
250100084 |
ELASTIC STOP-NUT 3/8-16 GR2 - Call your local BRP dealership |
| 17 |
250200064 |
FLAT WASHER - Call your local BRP dealership |
| 19 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 20 |
503190396 |
Ball Bearing |
| 21 |
250000270 |
SCREW-HEX.CAP 3/8-16X7 1/2 GR5 - Call your local BRP dealership |
| 22 |
250200065 |
FLAT WASHER - Call your local BRP dealership |
| 23 |
250000271 |
SCREW-HEX.CAP 3/8-16X1 GR5 - Call your local BRP dealership |
| 24 |
250200066 |
LOCK WASHER 3/8 - Call your local BRP dealership |
| 26 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 27 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 28 |
250000272 |
SCREW-HEX.CAP 3/8-16X4 1/4 GR5 - Call your local BRP dealership |
| 29 |
705400468 |
TRACK TENSIONNER - Call your local BRP dealership |
| 30 |
250000274 |
SCREW-HEX.CAP F-THREAD 3/8-16X4 GR5 - Call your local BRP dealership |
| 31 |
250100086 |
HEXAGONAL NUT 3/8-16 GR2 - Call your local BRP dealership |
| 32 |
250000275 |
SCREW-HEX.CAP 3/8-16X3 GR5 - Call your local BRP dealership |
| 33 |
705400516 |
ADJUSTMENT SUPPORT - Call your local BRP dealership |
| 34 |
705400519 |
Rear Bushing |
| 35 |
250000276 |
SCREW-HEX.CAP 3/8-16X5 GR8 - Call your local BRP dealership |
| 36 |
705500844 |
REAR SLIDE - Call your local BRP dealership |
| 37 |
250000277 |
WOOD SCREW #12 X 1-1/4 - Call your local BRP dealership |
| 38 |
250200068 |
EMBOSSED WASHER - Call your local BRP dealership |
| 39 |
Not |
Available As Spare Part - Flange Nut Hex. 3/8 - 16 Gr:5 Zinc |
| 40 |
219000683 |
USER GUIDE, APACHE TRACK KIT - Call your local BRP dealership |
| 41 |
715001086 |
TRACK KIT - Call your local BRP dealership |
