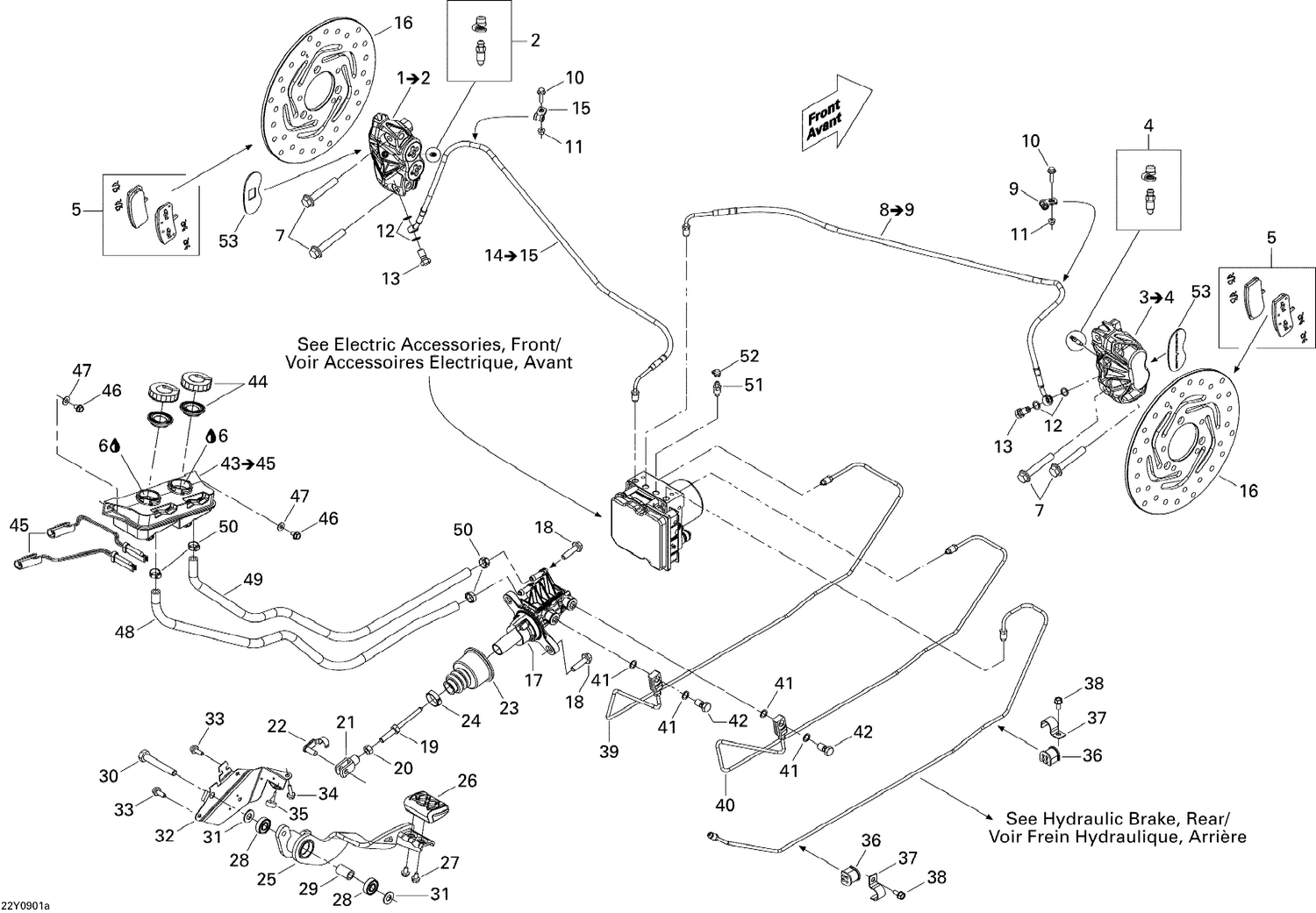

| Ref | Part Number | Description |
|---|
| 2 |
219800045 |
BLEED SCREW AND SPRING KIT - Call your local BRP dealership |
| 4 |
219800045 |
BLEED SCREW AND SPRING KIT - Call your local BRP dealership |
| 5 |
219800164 |
Pad Kit (4 Pads) This part replaces 219800071. |
| 6 |
293600131 |
HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 7 |
207506034 |
HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 9 |
293650256 |
Clamp This part replaces 705600459. |
| 10 |
207652034 |
HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership |
| 11 |
233251434 |
Flange Elastic Nut M5 |
| 12 |
414920600 |
Washer |
| 13 |
414920500 |
Banjo Bolt |
| 15 |
293650256 |
Clamp This part replaces 705600459. |
| 16 |
705600435 |
FRONT BRAKE DISC - Call your local BRP dealership |
| 17 |
705600722 |
Tandem Cylinder Master |
| 18 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 19 |
705600468 |
Piston Rod |
| 20 |
232081414 |
Hex. Nut M8 |
| 21 |
705600100 |
Yoke |
| 22 |
219702305 |
Pin Kit This part replaces 250400007. |
| 23 |
705600716 |
Bellow |
| 24 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 25 |
705600633 |
BRAKE PEDAL - Call your local BRP dealership |
| 28 |
705600458 |
Bearing |
| 29 |
705600541 |
Bushing |
| 30 |
207206534 |
Hex. Screw M10 X 65, Scotch Grip |
| 31 |
234001410 |
Flat Washer 10 mm |
| 32 |
705600823 |
TAB LOCK - Call your local BRP dealership This part replaces 705600606. |
| 33 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 34 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 35 |
708000759 |
Rubber Stopper This part replaces 708000125. |
| 36 |
705600843 |
TUBE SUPPORT - Call your local BRP dealership This part replaces 705600450. |
| 37 |
705600507 |
Clip |
| 38 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 39 |
705600721 |
FRONT TANDEM RIGID TUBE - Call your local BRP dealership This part replaces 705600447. |
| 40 |
705600742 |
REAR TANDEM RIGID TUBE - Call your local BRP dealership This part replaces 705600448. |
| 41 |
414920600 |
Washer |
| 42 |
414920500 |
Banjo Bolt |
| 44 |
219800058 |
Cap And Diaphragm Kit |
| 45 |
515176508 |
Oil Level Sensor |
| 46 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 47 |
224061121 |
Flat Washer |
| 48 |
276000084 |
HOSE-8MM. - Call your local BRP dealership |
| 49 |
276000084 |
HOSE-8MM. - Call your local BRP dealership |
| 50 |
293650047 |
Crimp Clamp, 15.3-706R |
| 51 |
705600502 |
Bleeder Screw |
| 52 |
705600554 |
BLEEDER CAP - Call your local BRP dealership |
