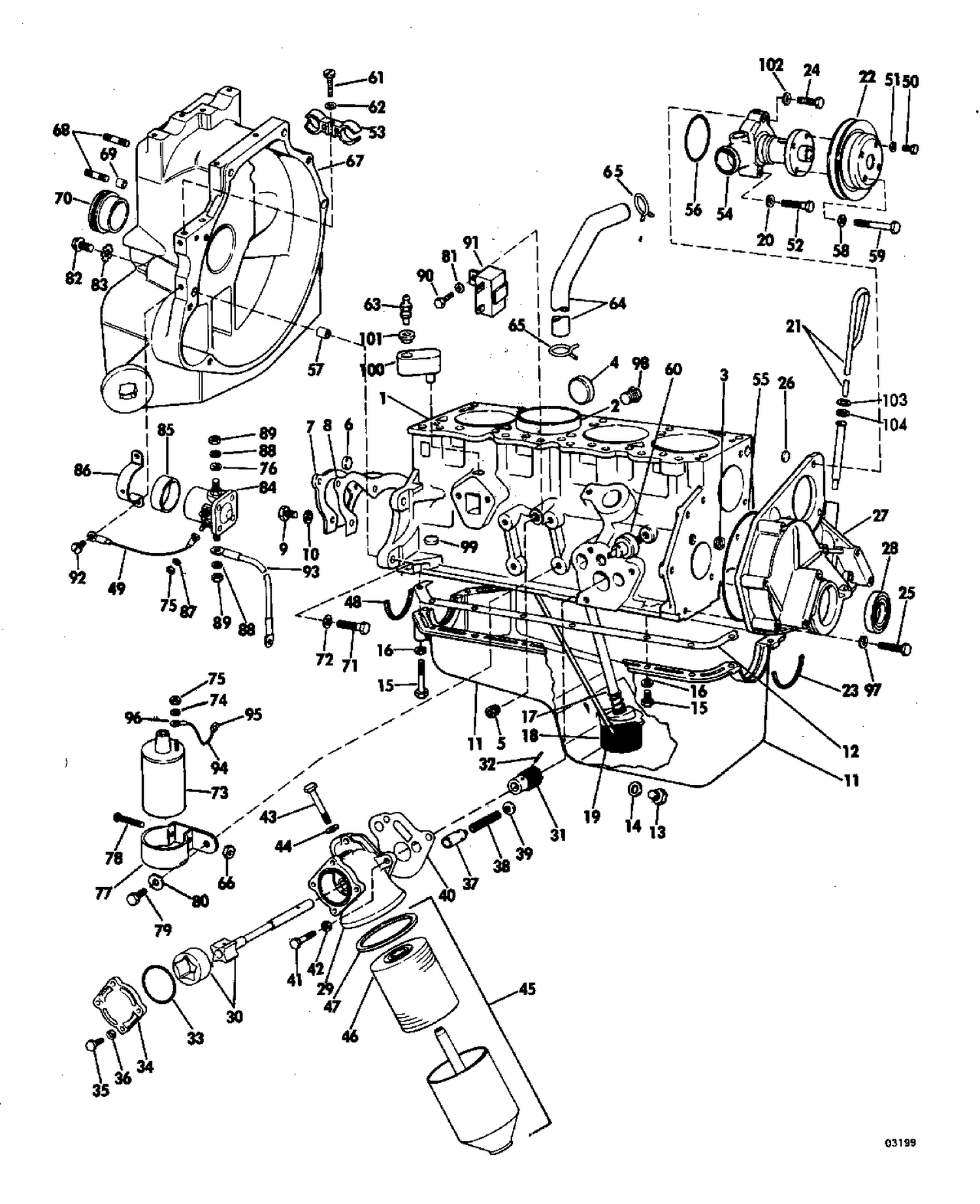

| Ref | Part Number | Description |
|---|
| 1 |
2737E-6010-C |
CYLINDER BLOCK ASSEMBLY |
| 2 |
2737E-6055-C |
CYLINDER LINER Standard |
| 2 |
3737E-6055-D |
CYLINDER LINER .020 INCH O.S. |
| 3 |
87837-ES2 |
PLUG, Oil gallery, hex socket |
| 4 |
0311376 |
CORE PLUG, Side |
| 5 |
353052-ES |
PLUG, Oil gallery, slotted |
| 6 |
357966-S |
EXPANSION PLUG SHAFT |
| 7 |
2730E-6344-A |
GASKET, Retainer |
| 8 |
2730E-6344-A |
GASKET, Retainer |
| 9 |
304664-S2 |
BOLT, Retainer to block |
| 10 |
34806-S7/8 |
LOCKWASHER |
| 11 |
2731E-6674-B |
OIL PAN |
| 12 |
2730E-6781-B |
GASKET SET, Oil pan |
| 13 |
2724E-6730-A |
PLUG, Oil drain |
| 14 |
2724E-6734-A |
GASKET, Drain plug |
| 15 |
20308-S7/8 |
BOLT,Distributor mounting |
| 16 |
111041-ES8 |
WASHER, Pan screw |
| 17 |
2730E-6615-A |
INLET TUB ASSY. |
| 18 |
2730E-6623-A |
SCREEN, Oil pick-up |
| 19 |
2730E-6K65-A |
TUBE, Oil return |
| 20 |
34806-S8 |
WASHER, Water pump |
| 21 |
2737E-6752-A |
GAUGE, Oil level |
| 22 |
105E-8509-B |
PULLEY, Water pump |
| 23 |
E29-CE-1 |
PACKING, Cover to pan |
| 24 |
20424-S8 |
BOLT, Water pump |
| 25 |
45504-S8 |
BOLT, Cover to block |
| 26 |
0313889 |
PLUB,Water passage |
| 27 |
0384446 |
COVER & SEAL, Timing chain |
| 28 |
105E-6362-C |
SEAL, Cover |
| 29 |
105E-6600-A |
OIL PUMP ASSY |
| 30 |
105E-6608-A |
ROTOR & SHAFT ASSEMBLLY |
| 31 |
105E-6551 |
GEAR, Drive |
| 32 |
72432-S |
PIN, Gear to shaft |
| 33 |
87066-ES |
O-RING Cover to body |
| 34 |
105E-6616-B |
COVER, Oil pump |
| 35 |
20344-S7/8 |
SCREW, Cover |
| 36 |
34825-S7 |
LOCKWASHER |
| 37 |
105E-6663-D |
PLUNGER, Relief valve |
| 38 |
105E-6654 |
SPRING, Plunger |
| 39 |
105E-6653-B |
RETAINER, Spring |
| 40 |
105E-6659 |
GASKET, Pump |
| 41 |
20386-ES2 |
BOLT, Pump to block |
| 42 |
34806-S7/8 |
LOCKWASHER |
| 43 |
115827-ES8 |
BOLT, Filter to pump |
| 44 |
116087-ES |
WASHER, Pump bolt |
| 45 |
113E-6714-A |
FILTER ASSEMBLY |
| 46 |
113E-6731-A |
FILTER ELEMENT |
| 47 |
EIADKN-18688- |
GASKET, Filter |
| 48 |
2730E-6723-A |
SEAL, Oil pan, rear |
| 49 |
0381765 |
LEAD ASSEMBLY, Ground |
| 50 |
0306424 |
BOLT, Pump mounting |
| 51 |
0306453 |
LOCKWASHER, Fuel pump |
| 52 |
20504-S8 |
BOLT, Water pump |
| 53 |
0314823 |
RETAINER, Cable con |
| 54 |
0384450 |
WATER PUMP ASSEMBLY |
| 57 |
0313683 |
DOWEL PIN, Eng. to adapter |
| 59 |
0306419 |
SCREW |
| 60 |
0379948 |
SCREW, Retainer to adapter |
| 62 |
0306407 |
LOCCKWASHER,Cover latch |
| 63 |
0383656 |
BREATHER CONDENSE ASSEMBLY |
| 64 |
0315067 |
HOSE, Valve to manifold |
| 65 |
0308913 |
CLAMP, Hose, valve to manifold |
| 66 |
0308335 |
CLAMP, Coil |
| 67 |
0383161 |
ADAPTER HOUSING & STUD ASSEMBLY |
| 69 |
0309614 |
DOWEL |
| 70 |
0314127 |
PILOT, Adapter |
| 71 |
0312997 |
SCREW, Adapter to engine |
| 73 |
3852217 |
COIL ASSY. Ignition This part replaces 0383444. |
| 74 |
0550757 |
L'WASHER,Coil term |
| 76 |
0307143 |
WASHER, Solenoid |
| 77 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 78 |
0306419 |
SCREW |
| 79 |
0306450 |
SCREW |
| 82 |
0312861 |
SCREW, Cable ground |
| 83 |
0307001 |
L'WASHER, Stud c'case |
| 85 |
0311217 |
MANCHON, solénoïde |
| 86 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 89 |
0303783 |
NUT |
| 90 |
0306555 |
SCREW |
| 91 |
0981654 |
BALLAST RESISTOR This part replaces 0383433. |
| 92 |
0303311 |
SCR,Clamp,eng cable |
| 93 |
0383381 |
LEAD ASSEMBLY, Starter to solenoid |
| 94 |
0383382 |
LEAD ASSY., Coil to res. |
| 97 |
34805-S7/8 |
LOCKWASHER, Cover bolt |
| 98 |
87786-S |
PLUG, Block drain |
| 99 |
353096-S |
PLUG, Expansion |
| 100 |
2733E-6A78-A |
SEPARATOR ASS. |
| 101 |
378766-ES |
GROMMET |
| 102 |
34805-S8 |
WASHER, Water pump |
