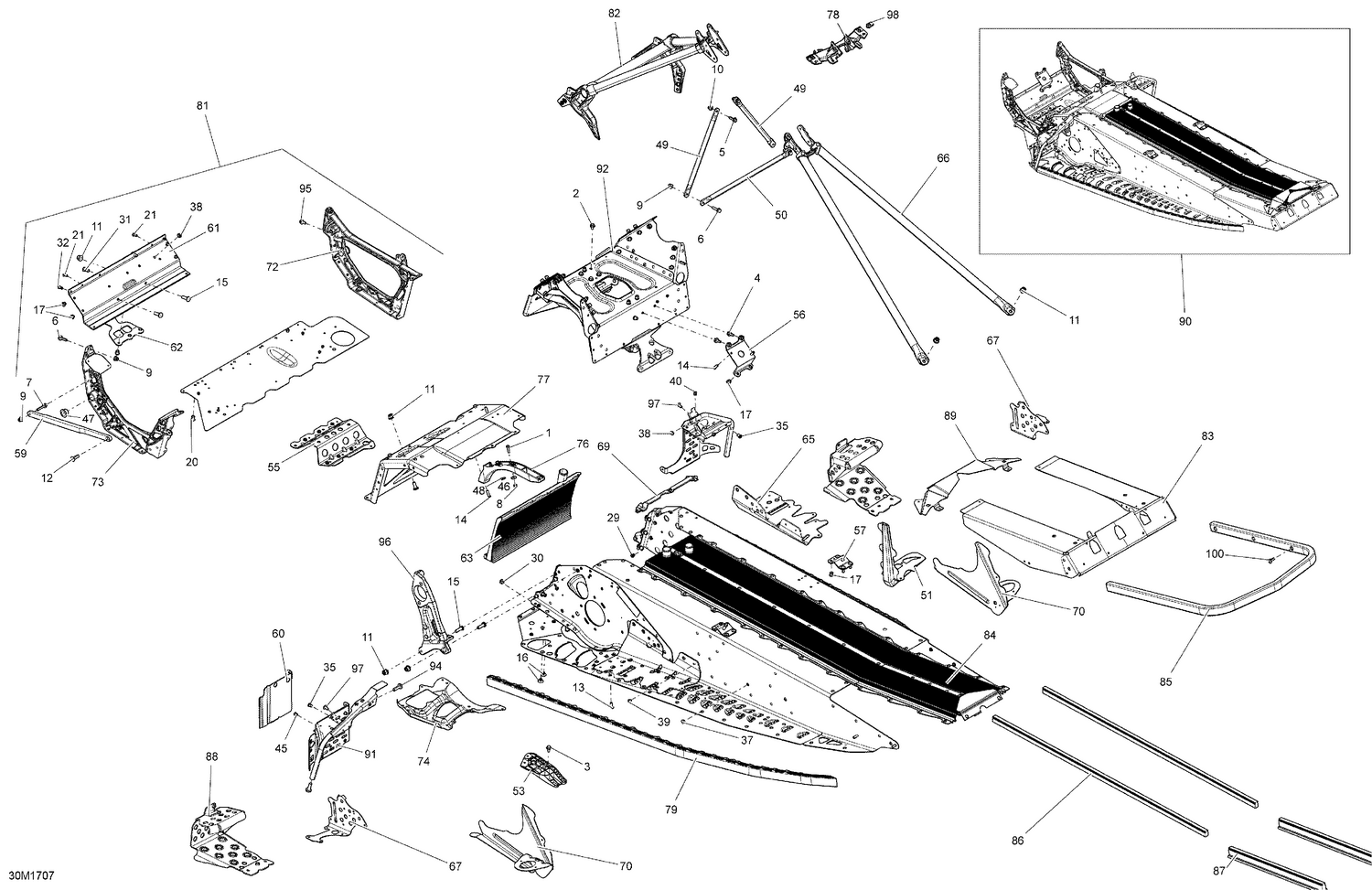

| Ref | Part Number | Description |
|---|
| 1 |
207152044 |
Hex. Screw M5 X 20 |
| 2 |
207561044 |
Flange Screw M6 X 10, Scotch Grip |
| 3 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 4 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 5 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 6 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 7 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 8 |
233251434 |
Flange Elastic Nut M5 |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 10 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 12 |
250000143 |
Torx Screw M8 X 25, Scotch Grip |
| 13 |
250000365 |
Torx Screw M6 X 16 |
| 14 |
250300027 |
Clinch Stud M6 X 20 |
| 15 |
250300038 |
Clinch Stud |
| 16 |
293150104 |
Pop Rivet 3/16" |
| 17 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 20 |
293150120 |
Hemlock Rivet 6.5 mm |
| 21 |
293150144 |
Stavex Rivet |
| 29 |
293150146 |
Henrob Rivet |
| 30 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 31 |
293150182 |
Monobolt Rivet 6.4 |
| 32 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 35 |
293450268 |
Insert M5 X 0.8 |
| 37 |
293730047 |
Black, Dart 8 mm |
| 37 |
293730053 |
Black Dart 5 mm |
| 37 |
293730060 |
Black, Dart 10 mm |
| 38 |
293730042 |
Full Moon Dart 5 mm |
| 39 |
390402200 |
Pop Rivet 3/16" |
| 45 |
390909200 |
Avex Rivet |
| 46 |
391301600 |
Washer |
| 47 |
505073317 |
Leg Cushion |
| 48 |
517124300 |
Washer |
| 49 |
518325114 |
Upper Lateral Column Support |
| 50 |
518325115 |
Center Column Support |
| 51 |
518325747 |
RH REINFORCEMENT - Call your local BRP dealership |
| 51 |
518325748 |
LH REINFORCEMENT - Call your local BRP dealership |
| 53 |
518325782 |
RH Deflector, Black Polypropylene |
| 53 |
518325783 |
LH Deflector, Black Polypropylene |
| 55 |
518325796 |
LINK CROSS - Call your local BRP dealership |
| 56 |
518325943 |
MAG Engine Support |
| 57 |
518325973 |
RH Rear Base |
| 57 |
518325974 |
LH Rear Base |
| 59 |
518326118 |
LINK - Call your local BRP dealership |
| 60 |
518326188 |
PLATE - Call your local BRP dealership |
| 61 |
518326198 |
Front Member |
| 62 |
518326466 |
MODULE REINFORCEMENT - Call your local BRP dealership |
| 63 |
518326485 |
Front Radiator This part replaces 518326486. |
| 65 |
518326522 |
LH REINFORCEMENT - Call your local BRP dealership |
| 65 |
518326523 |
RH REINFORCEMENT - Call your local BRP dealership |
| 65 |
518327131 |
LH BRACKET - Call your local BRP dealership |
| 65 |
518327132 |
RH BRACKET - Call your local BRP dealership |
| 66 |
518326559 |
Rear Member |
| 67 |
518326616 |
RH Front Suspension Retainer |
| 67 |
518326617 |
LH Front Suspension Retainer |
| 69 |
518326656 |
Seal |
| 70 |
518326766 |
RH REAR SUPPORT - Call your local BRP dealership |
| 70 |
518326767 |
LH REAR SUPPORT - Call your local BRP dealership |
| 72 |
518326795 |
RH Member |
| 73 |
518326796 |
LH Member |
| 74 |
518326937 |
RH Reinforcement, Running Board |
| 74 |
518326938 |
LH Reinforcement, Running Board |
| 76 |
518326973 |
Front Tunnel Protector |
| 77 |
518327097 |
Rear Pan |
| 78 |
518327145 |
Sub A Support |
| 79 |
518327187 |
RH ROLLER - Call your local BRP dealership |
| 79 |
518327188 |
LH ROLLER - Call your local BRP dealership |
| 81 |
518327567 |
E Module |
| 82 |
518327565 |
Front Member |
| 83 |
518327624 |
REAR CAP - Call your local BRP dealership |
| 84 |
518327632 |
REAR WELDED RADIATOR - Call your local BRP dealership |
| 85 |
518327637 |
Black, Rear Bumper |
| 86 |
518328040 |
FRONT PROTECTOR - Call your local BRP dealership |
| 87 |
518328041 |
REAR PROTECTOR - Call your local BRP dealership |
| 88 |
518328106 |
RH FOOTREST - Call your local BRP dealership |
| 88 |
518328107 |
LH FOOTREST - Call your local BRP dealership |
| 89 |
518328263 |
REAR LIGHT PLATE - Call your local BRP dealership |
| 90 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 90 |
415130162 |
FRAME - Call your local BRP dealership |
| 91 |
518328528 |
LH Stirup |
| 91 |
518328940 |
RH Stirup |
| 92 |
518327766 |
S-MODULE - Call your local BRP dealership This part replaces 518328551. |
| 94 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 95 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 96 |
518328346 |
Pulley Support |
| 97 |
250000767 |
Torx Truss Screw M6 X 12 |
| 98 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
