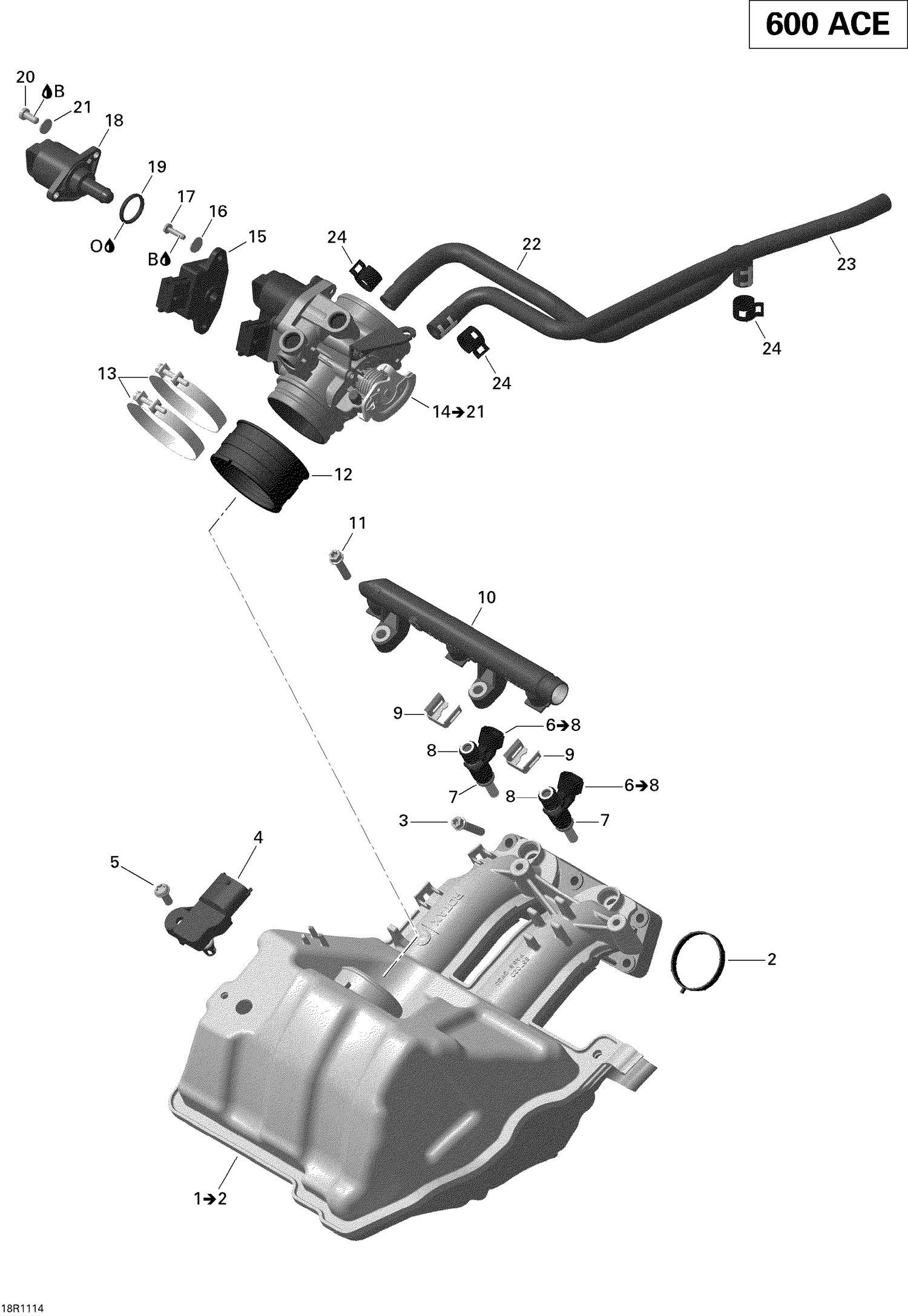

02- Air Intake Manifold And Throttle Body
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 2 | 420431660 | Gasket |
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 707000995 | Pressure And Temperature Sensor This part replaces 707000564. |
| 5 | 420641588 | Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 7 | 420431890 | O-Ring |
| 8 | 420631220 | O-Ring |
| 9 | 420853030 | Injector Clip |
| 10 | 420874961 | Fuel Rail This part replaces 420874960. |
| 11 | 420440234 | Torx Flange Screw M6 X 25 |
| 12 | 420460495 | Intake Adaptor |
| 13 | 420251480 | Clamp |
| 15 | 420866120 | Position Sensor This part replaces 415129603. |
| 16 | 234042600 | Flat Washer 4 mm, Stainless |
| 17 | 208641660 | Phillips Screw M4 X 16 |
| 18 | 420665941 | Idle Air Control Valve This part replaces 420665940. |
| 19 | 420631780 | O-Ring |
| 20 | 420440911 | Binding Head Screw M5 X 16 |
| 21 | 420845710 | Snap Ring |
| 22 | 420460910 | MOLDED HOSE - Call your local BRP dealership |
| 23 | 420460915 | MOLDED HOSE - Call your local BRP dealership |
| 24 | 420853511 | Clamp |
