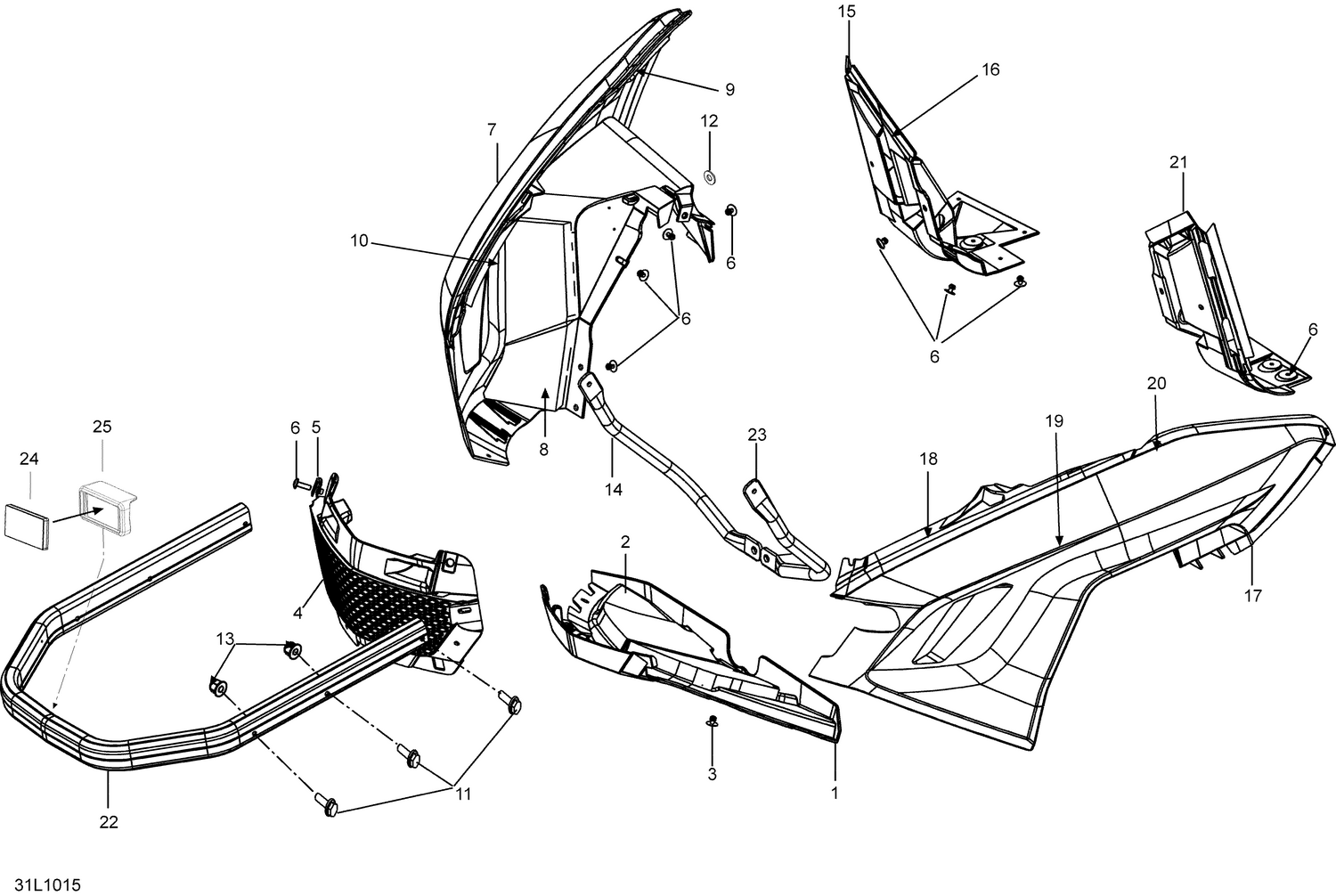

| Ref | Part Number | Description |
|---|
| 1 |
502008006 |
Black, Front Bottom Pan This part replaces 502007082. |
| 2 |
502007002 |
Insulator |
| 3 |
293150103 |
Pop Rivet 3/16 |
| 4 |
502007145 |
Grill This part replaces 502006913. |
| 5 |
250100198 |
Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 6 |
250000722 |
Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 7 |
502007994 |
Bottom Pan R.H. This part replaces 502007048. |
| 8 |
502007006 |
Insulator |
| 9 |
502007008 |
INSULATOR - Call your local BRP dealership |
| 10 |
502007009 |
Insulator |
| 11 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 12 |
234052490 |
WASHER M5 - Call your local BRP dealership |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
502007015 |
RH Bumper Support |
| 16 |
502007038 |
Aluminium Foil |
| 17 |
502008000 |
Black, LH Bottom Pan Ass'y This part replaces 502007049. |
| 18 |
502007003 |
Insulator |
| 19 |
502007004 |
INSULATOR - Call your local BRP dealership |
| 20 |
502007005 |
INSULATOR - Call your local BRP dealership |
| 21 |
502008012 |
LH Rear Bottom Pan This part replaces 502007124. |
| 22 |
502007083 |
Bumber |
