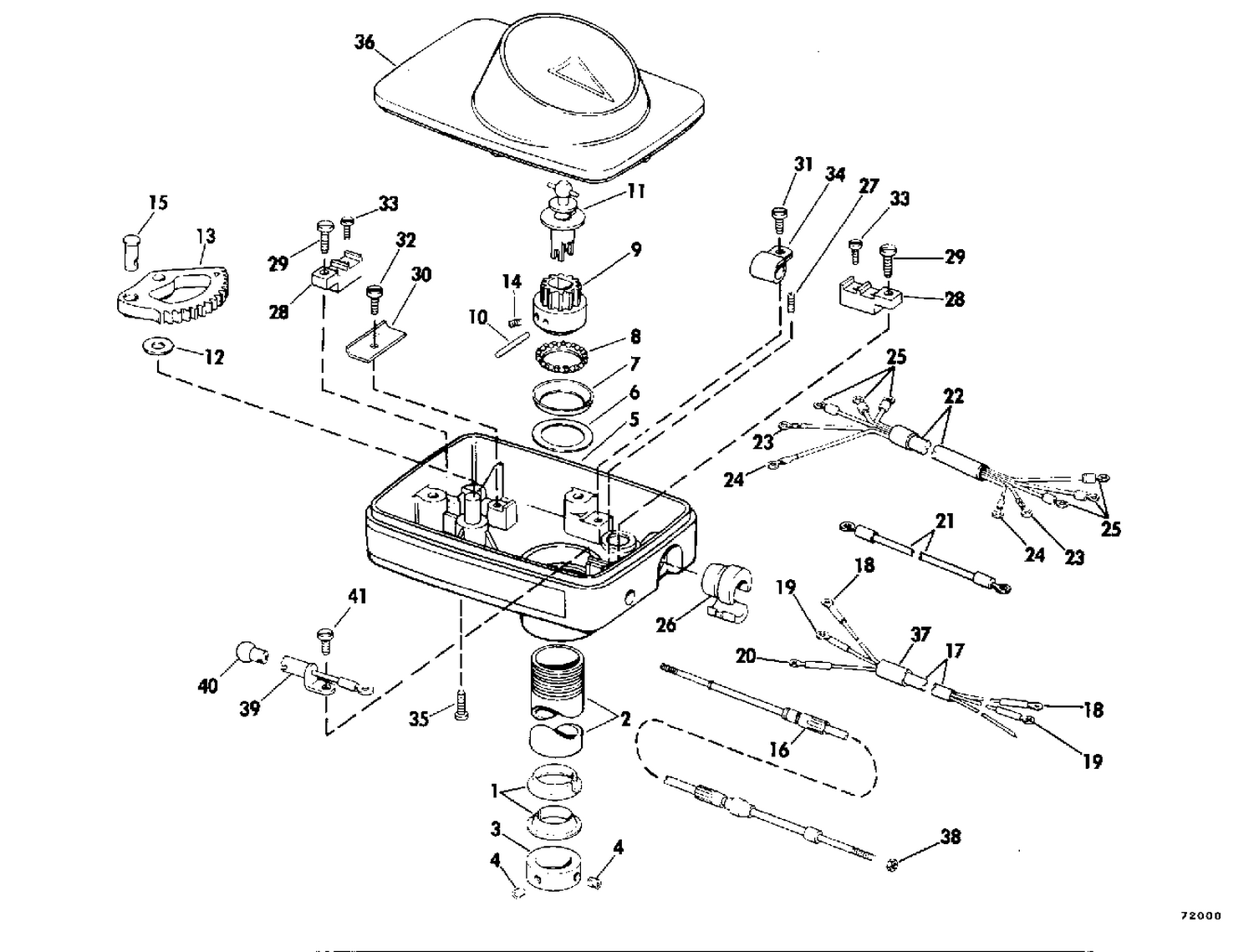

| Ref | Part Number | Description |
|---|
| 1 |
0437133 |
BEARING KIT This part replaces 0387618. |
| 2 |
0207270 |
MOUNTING TUBE |
| 3 |
0437133 |
BEARING KIT This part replaces 0281011. |
| 4 |
0321223 |
SET SCREW |
| 5 |
0387273 |
STEERING HANDLE ASSY. |
| 6 |
0319596 |
SUPPORT, Ball bearing cup |
| 7 |
0319595 |
CUP, Ball bearing |
| 8 |
0433047 |
BEARING ASSY., Mounting tube This part replaces 0386459. |
| 9 |
0319521 |
STEERING PINION |
| 10 |
0319523 |
PIN, Pinion to motor tube |
| 11 |
0334697 |
DRIVE, Pinion to direction ind. This part replaces 0319598. |
| 13 |
0319520 |
STEERING GEAR |
| 14 |
0319652 |
SET SCREW, Adj. ring |
| 15 |
0319532 |
PIN, Gear to cable |
| 16 |
0386461 |
CABLE ASSEMBLY, Steering control |
| 16 |
0387970 |
CABLE ASSY, Steering control |
| 17 |
0387192 |
CABLE ASSY, Electric, 12v |
| 17 |
0387971 |
CABLE ASSY, Electrical, 12v |
| 21 |
0581434 |
LEAD ASSY, 12v |
| 22 |
0387149 |
CABLE ASSY, Electrical, 24v |
| 22 |
0387972 |
CABLE ASSY, Electrical, 24v |
| 26 |
0319753 |
BUSHING, Strain relief |
| 27 |
0319653 |
SET SCREW, Steering cable |
| 28 |
0319650 |
TERMINAL BOARD |
| 29 |
0319605 |
GROMMET, Cable lwr mot cov. |
| 30 |
0319777 |
BAR CLAMP, Leads |
| 31 |
0319614 |
SCREW, Bar clamp This part replaces 0319616. |
| 32 |
0319614 |
SCREW, Bar clamp |
| 34 |
0316669 |
CLAMP |
| 36 |
0279691 |
COVER ASSY, Strg hsg,evinrude |
| 37 |
0320317 |
ELEEVE,Steering cable |
| 37 |
0321892 |
SLEEVE Cables, 8 ft. |
| 39 |
0582392 |
SOCKET ASSY., Lamp This part replaces 0581297. |
| 40 |
0320457 |
LAMP, Direction indicator, 24 V. |
| 41 |
0319614 |
SCREW, Bar clamp |
| 0279850 |
0279850 |
DECAL SET, 12 V |
