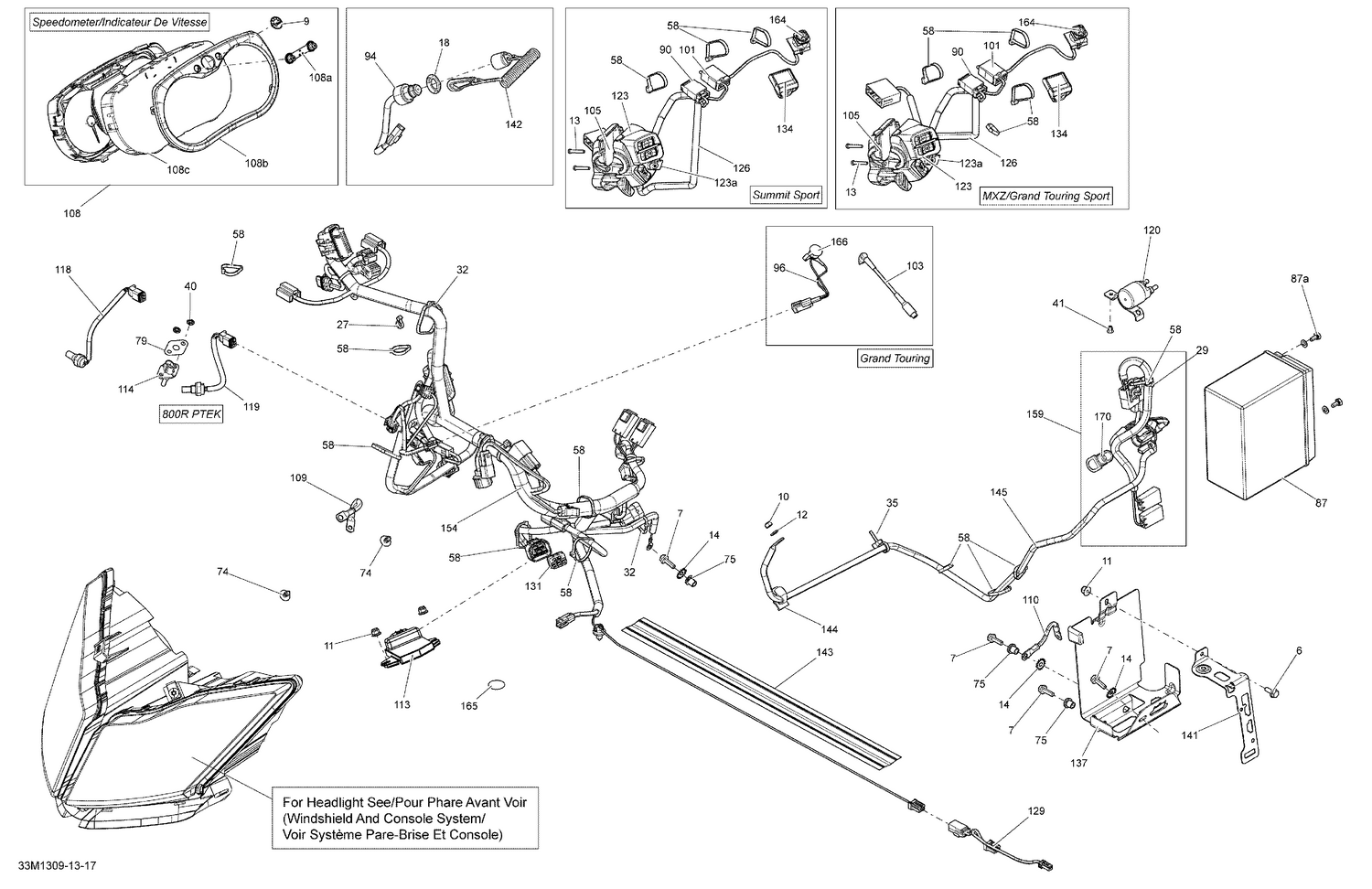

10- Electrical System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 207662044 | Hex. Flange Screw M6 X 20 |
| 9 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 250000263 | Torx Screw #8-18 |
| 14 | 250200041 | Lock Washer Serrated M6 |
| 18 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 27 | 293750002 | Tie Wrap 142 mm |
| 29 | 293750002 | Tie Wrap 142 mm |
| 40 | XXX | Not Available As Spare Parts |
| 58 | 414115200 | Tie-Rap 180 mm |
| 74 | 414644300 | Black, Dart |
| 75 | 293450275 | Insert This part replaces 415107300. |
| 79 | XXX | Not Available As Spare Parts |
| 90 | 515175662 | Male Terminal Housing, 6 Circuits |
| 94 | 515177249 | DESS Switch |
| 101 | 515175817 | Male Terminal Housing, 8 Circuits |
| 105 | 515175926 | Switch Housing Plate |
| 108 | 515177914 | Speedometer This part replaces 515177115. |
| 108a | 415129355 | Speedometer Button |
| 108b | 415129370 | Gauge Ring |
| 108c | 415129349 | Lens |
| 109 | 515177289 | Ground Wire |
| 113 | 515176364 | Voltage Regulator |
| 114 | XXX | Not Available As Spare Parts |
| 118 | XXX | Not Available As Spare Parts |
| 123 | 515177022 | LH Housing |
| 126 | 515176995 | Steering Wiring Harness Ass'y |
| 129 | 515176571 | JUNCTION HARNESS - Call your local BRP dealership |
| 131 | 515176681 | Lock |
| 134 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 142 | 515178284 | DESS This part replaces 515177057. |
| 143 | Not | Available As Spare Part - Filament Tape 48mm |
| 154 | 515177095 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 164 | 515177362 | Emergency Stop Switch |
| 165 | 518325560 | Adhesive Patch |
