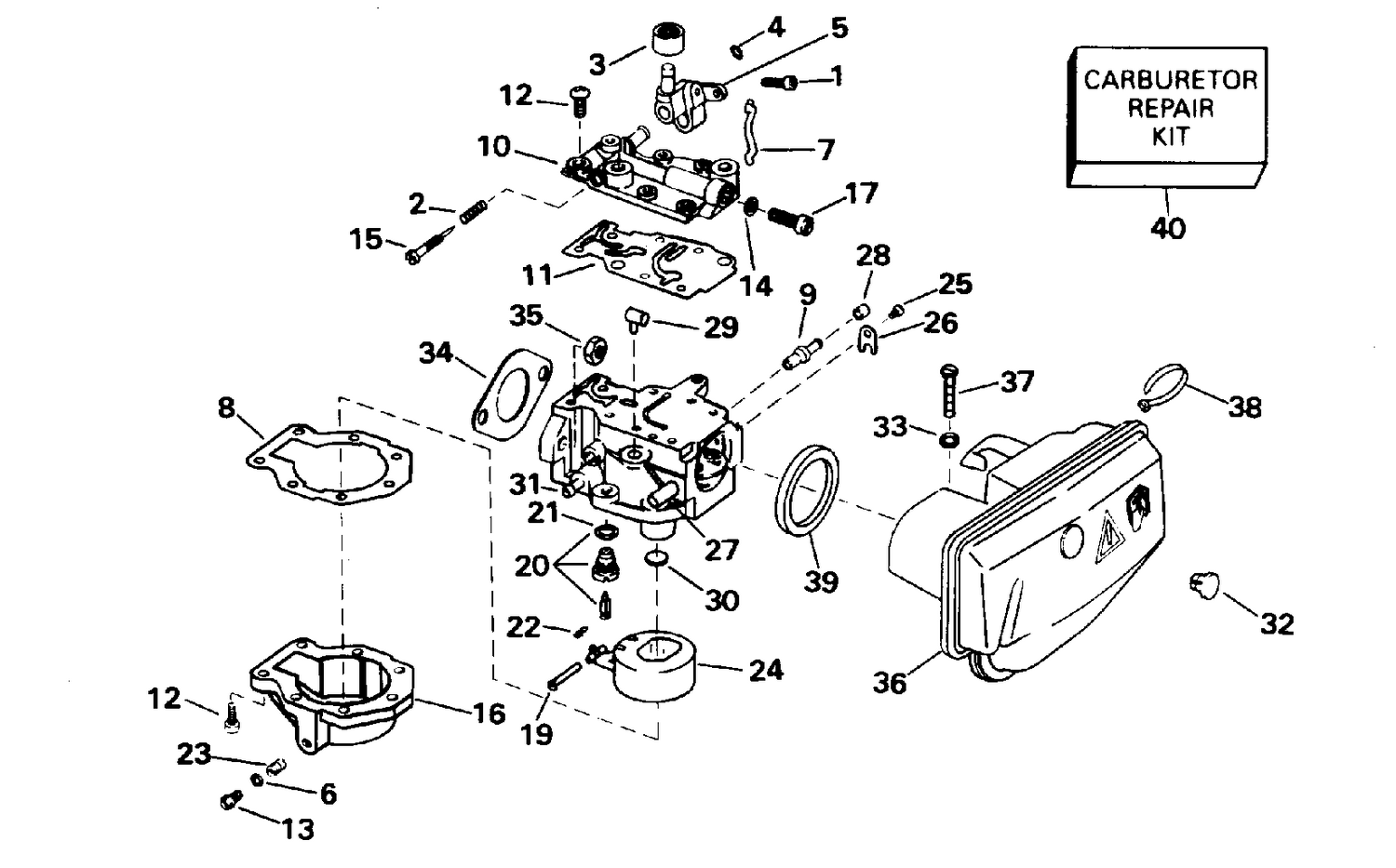

CARBURETOR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 0342724 | GASKET, Cover |
| 22 | 0336842 | CLIP, SPRING |
| 32 | 0316337 | PLUG |
| 35 | 0328742 | NUT |
| 36 | 0436296 | AIR SILENCER |
| 37 | 0331758 | SCREW, Air horn to carburetor |
| 40 | 0439073 | CARBURETOR REPAIR KIT This part replaces 0436359. |
| 0436778 | 0436778 | CARBURETOR Assy |
| 0436779 | 0436779 | CARBURETOR ASSY. |
| 0437267 | 0439129 | CARBURETOR Assy This part replaces 0437267. |
| 0437268 | 0439128 | CARBURETOR ASSY This part replaces 0437268. |
| 0437979 | 0437979 | CARBURETOR ASSY. |
| 0438026 | 0438026 | CARBURETOR ASSY. |
