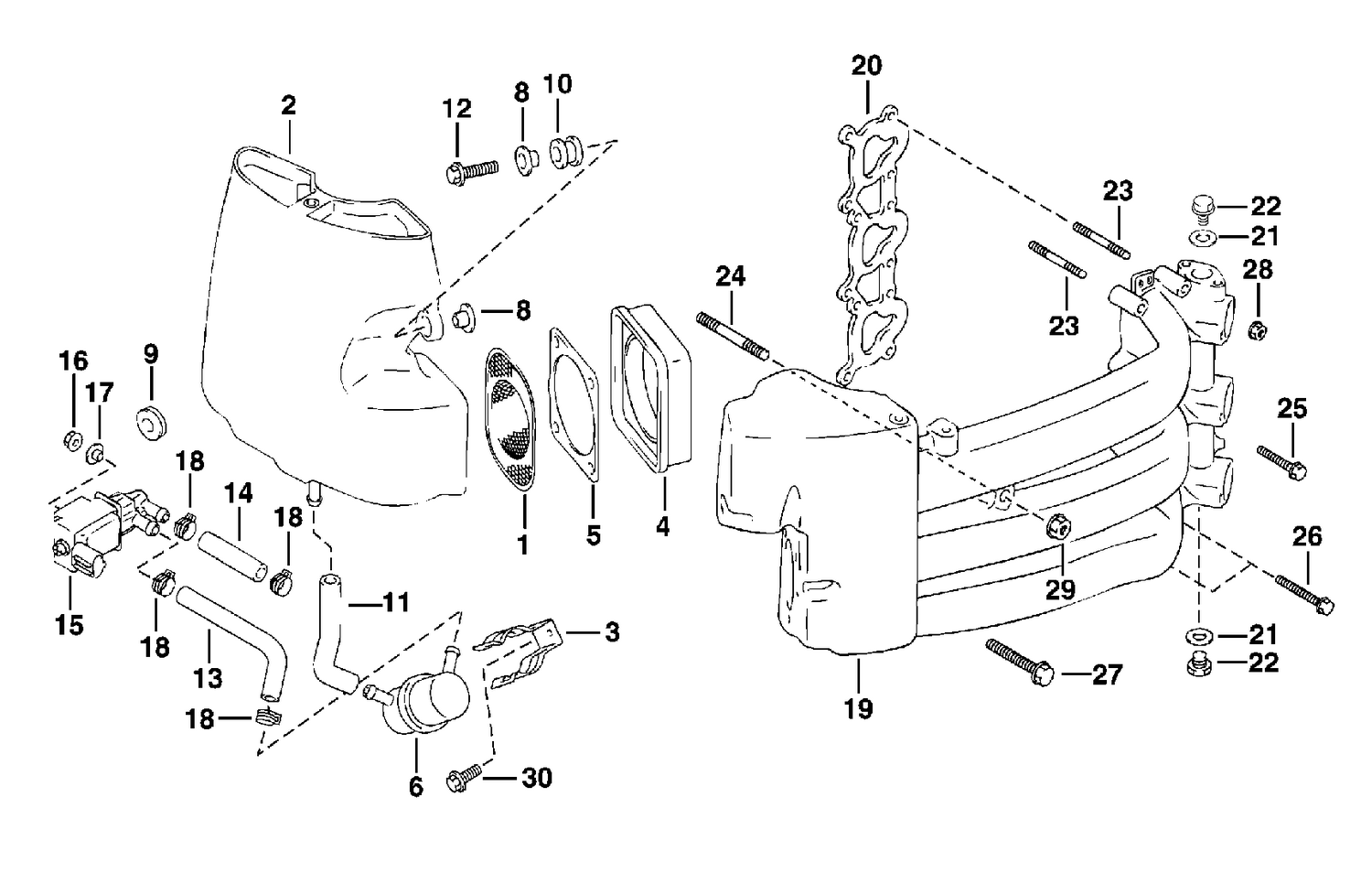

INTAKE MANIFOLD
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5031394 | ARRESTER, FLAME |
| 2 | 5031395 | SILENCER |
| 3 | 5030751 | CLAMP, ISC SILENCER |
| 4 | 5031396 | SEAL, SILENCER |
| 5 | 5031397 | PLATE, Seal silencer |
| 6 | 5030750 | SILENCER, IAC Valve |
| 8 | 5030472 | GROMMET |
| 10 | 5030556 | CUSHION |
| 15 | 5031431 | VALVE, IAC |
| 16 | 5030018 | NUT |
| 17 | 5031235 | WASHER |
| 19 | 5036472 | MANIFOLD, INTAKE This part replaces 5031387. |
| 20 | 5031388 | GASKET, Intake manifold |
| 21 | 5030466 | GASKET |
| 22 | 5031253 | PLUG |
| 23 | 5031640 | BOLT, STUD |
| 24 | 5030980 | BOLT, STUD |
| 25 | 5031079 | BOLT |
| 26 | 5031644 | BOLT |
| 27 | 5031642 | BOLT |
| 28 | 5030018 | NUT |
