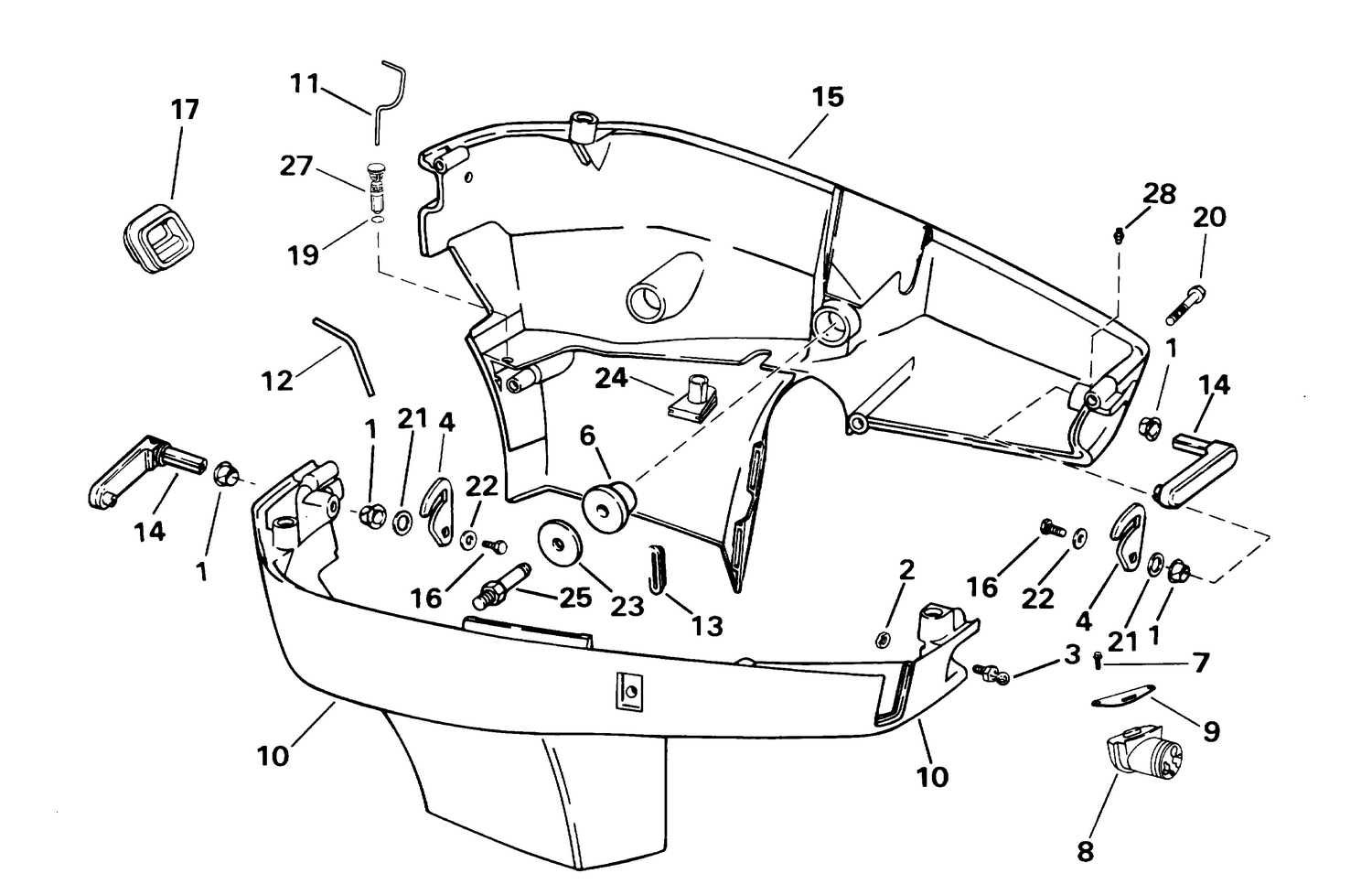

LOWER ENGINE COVER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0349557 | MOUNT This part replaces 0328584. |
| 8 | 0342290 | GROMMET, Control cable entry |
| 9 | 0341099 | BRACKET, Grommet |
| 10 | 5004581 | Lmc Ay This part replaces 0348749. |
| 15 | 5004580 | Lmc Ay This part replaces 0344806. |
| 17 | 0348748 | GROMMET, Adaptor to cover |
| 20 | 0325115 | SCREW, Oil tank/EMM mount |
| 23 | 0349556 | Washer This part replaces 0329749. |
| 25 | 0329743 | STUD, Cover mount |
