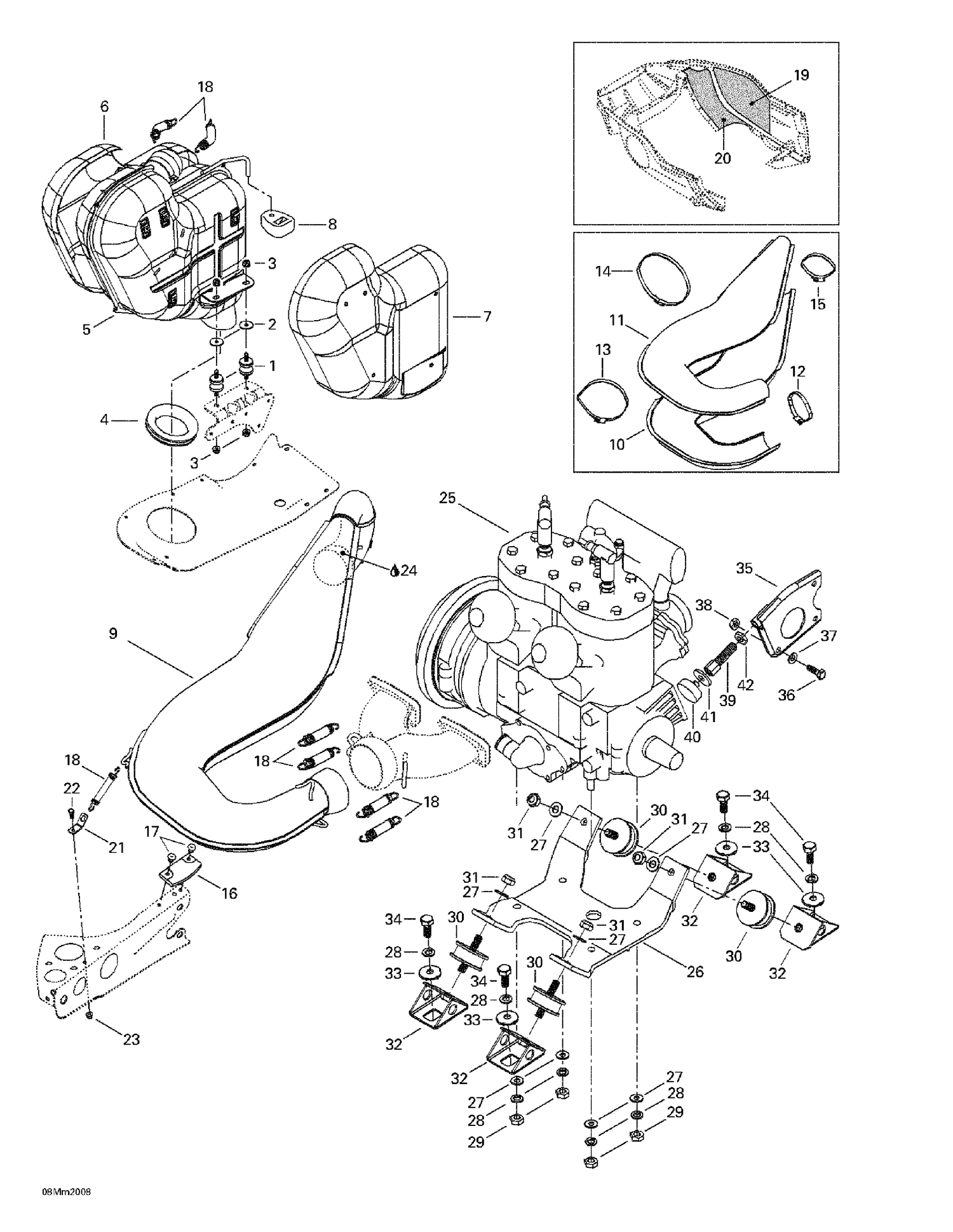

01- Engine Support And Muffler
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514052994 | Rubber Mount |
| 2 | 514052891 | Insulated Washer |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 6 | 514052732 | RH Heat Shield |
| 7 | 514052733 | LH Heat Shield |
| 8 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 10 | 514052984 | Lower Enveloppe |
| 11 | 514052714 | Upper Enveloppe |
| 12 | 514053074 | Norma Gear Clamp |
| 13 | 514052962 | Norma Gear Clamp |
| 14 | 514052735 | Norma Gear Clamp |
| 15 | 293650118 | Norma Gear Clamp This part replaces 514052859. |
| 16 | 570044100 | Rubber Pad |
| 17 | 390406500 | Pop Rivet 3/16" This part replaces 390409500. |
| 18 | 415107100 | Spring |
| 19 | 514052718 | Reflective Sheet |
| 20 | 514052719 | Reflective Sheet |
| 21 | 514053026 | Spring Bracket |
| 22 | 207151244 | Hex. Screw M5 X 12 |
| 23 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 24 | 293800090 | Sealant, Loctite, 80 ml This part replaces 413710300. |
| 25 | 400509717 | Moteur «593» |
| 26 | 512058000 | Engine Support |
| 27 | 234001410 | Flat Washer 10 mm |
| 28 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 29 | 232006414 | Hex. Nut M10 X 1.5 |
| 30 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 31 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 32 | 512050900 | Engine Support |
| 33 | 512056700 | Lock Washer |
| 34 | 207102544 | Hex. Screw M10 X 25 |
| 35 | 512058500 | Support Plate |
| 36 | 207182044 | Hex. Screw M8 X 20 |
| 37 | 234081410 | Flat Washer 8 mm |
| 38 | 232581414 | Hex. Elastic Stop Nut M8 |
| 39 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 40 | 512059056 | Stopper |
| 41 | 512059057 | WASHER - Call your local BRP dealership |
