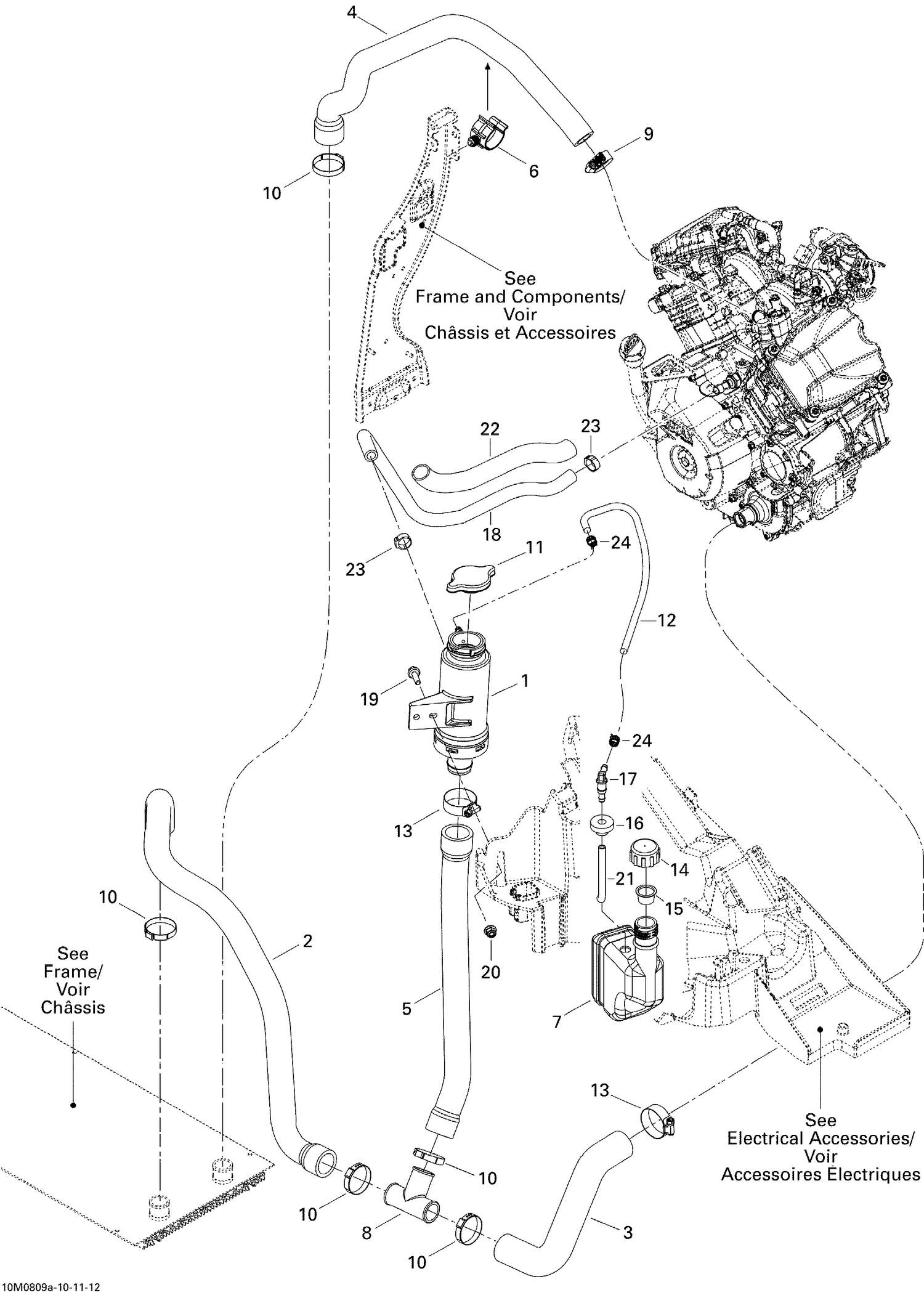

01- Cooling System Adventure
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000176 | FILLER NECK ASS'Y - Call your local BRP dealership |
| 2 | 509000364 | T-FITTING HOSE - Call your local BRP dealership |
| 3 | 509000365 | PUMP INLET HOSE - Call your local BRP dealership |
| 4 | 509000366 | REAR RADIATOR HOSE - Call your local BRP dealership |
| 5 | 509000367 | COOLANT TANK HOSE - Call your local BRP dealership |
| 6 | 275500526 | Retainer |
| 7 | 709200099 | COOLANT TANK - Call your local BRP dealership |
| 8 | 509000219 | T-Fitting |
| 9 | 293650019 | Tridon Clamp |
| 10 | 509000045 | Oetiker Gear Clamp |
| 11 | 509000187 | Pressure Cap |
| 12 | 415110000 | Polyurethane Hose 5.2 mm |
| 13 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 | 709200009 | TANK CAP - Call your local BRP dealership |
| 15 | 709200205 | PROTECTION CAP - Call your local BRP dealership |
| 16 | 709200285 | Grommet This part replaces 570135100. |
| 17 | 414580600 | Male Connector |
| 18 | 509000407 | Hose 8 mm |
| 19 | 207662044 | Hex. Flange Screw M6 X 20 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 415110000 | Polyurethane Hose 5.2 mm |
| 22 | 415080000 | Tubing 16 mm |
| 23 | 293650140 | Oetiker Clamp |
