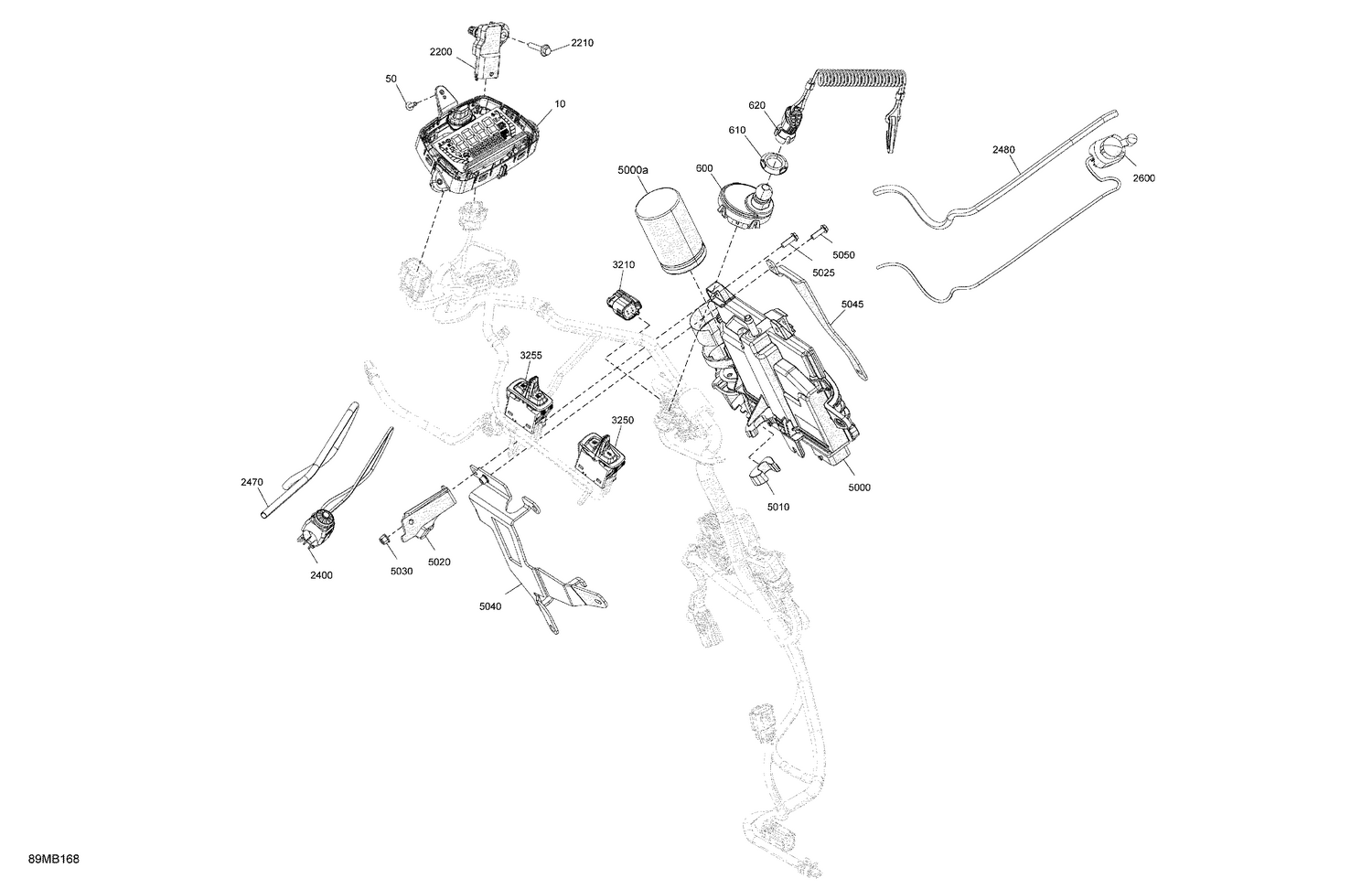

08- Electric - Upper Section
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178810 | Multifunction Gauge Compact Mono |
| 50 | 250001131 | Torx Truss PT K40 x 12 |
| 600 | 515178840 | Terminal Dess One-Wire |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 207552544 | Hex. Flange Screw M5 X 25 |
| 2400 | 515178657 | Control Button |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515178300 | Emergency Stop Switch |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178801 | Module Support |
| 5025 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 5030 | 233251434 | Flange Elastic Nut M5 |
| 5040 | 515178951 | Module Support |
| 5045 | 515178952 | Module Support |
