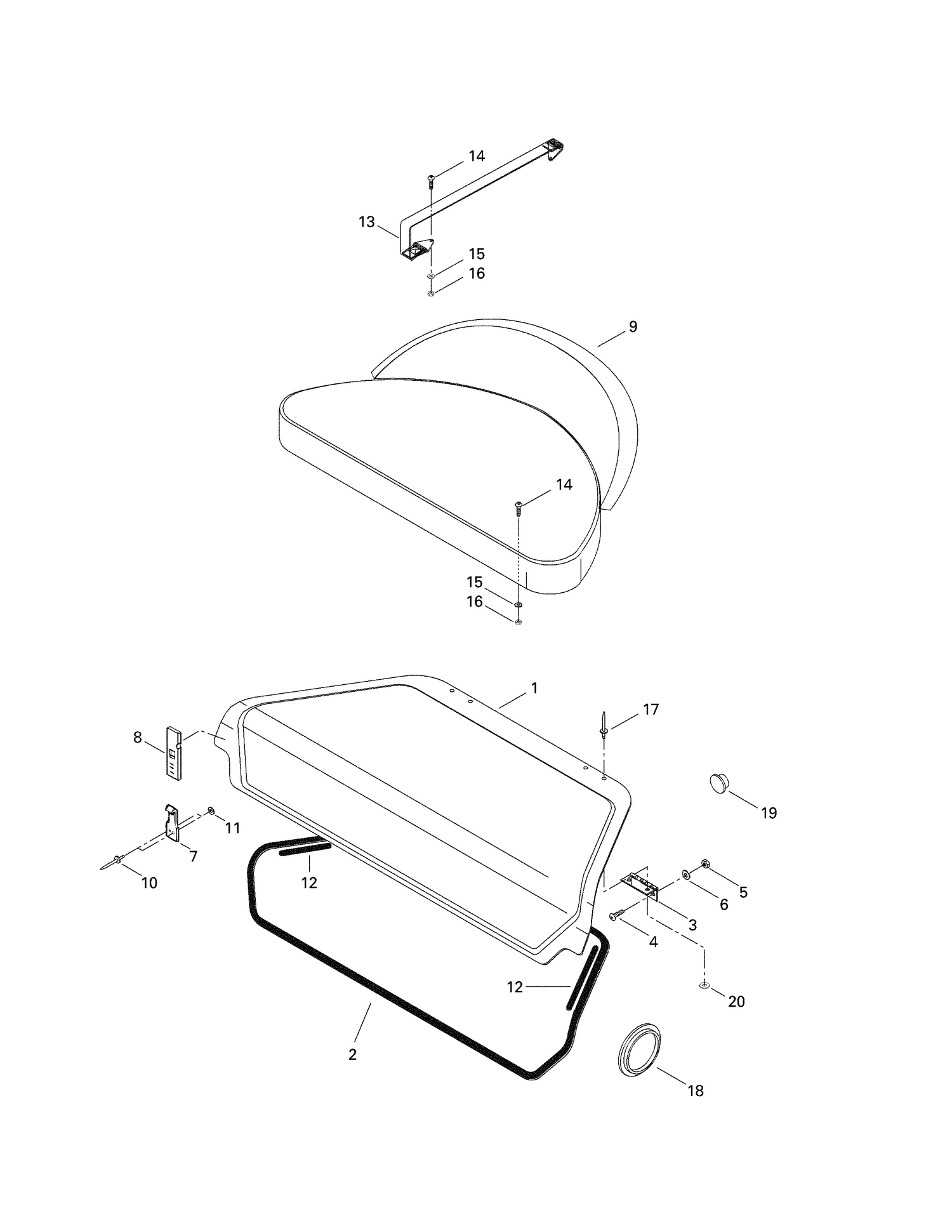

| Ref | Part Number | Description |
|---|
| 1 |
269500189 |
Front Storage Cover |
| 2 |
219704365 |
Was 293200017 Neoprene Seal |
| 3 |
204072601 |
HINGE - Call your local BRP dealership This part replaces 291000538. |
| 4 |
216141660 |
Screw M4 x 16 |
| 5 |
232541600 |
Elastic Stop Nut M4 This part replaces 218041600. |
| 6 |
234040600 |
Flat Washer 4 mm This part replaces 213200010. |
| 7 |
291000166 |
LATCH SUPPORT - Call your local BRP dealership |
| 8 |
291000165 |
Latch (Female) |
| 9 |
269000182 |
Front Seat Assembly (Incl. It. 13) |
| 10 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 11 |
234032600 |
Flat Washer M3, Stainless This part replaces 213200018. |
| 12 |
204000094 |
Neoprene 1/4 x 3/8 (Meter) |
| 13 |
269000201 |
Strap |
| 14 |
216151660 |
Screw M5 x 16 |
| 15 |
234052600 |
Flat Washer 5 mm, Stainless This part replaces 213200015. |
| 16 |
232551600 |
Hex. Elastic Nut M5 This part replaces 212000004. |
| 17 |
204000081 |
Pop Rivet 3/16" |
| 18 |
570277400 |
Bottom Pan Cap |
| 19 |
293000030 |
Hunky Cap |
| 269000107 |
Front |
Seat Foam 269000107 |
| 269000108 |
Front |
Backrest Foam 269000108 |
| 269000200 |
Seat |
Cover 269000200 |
