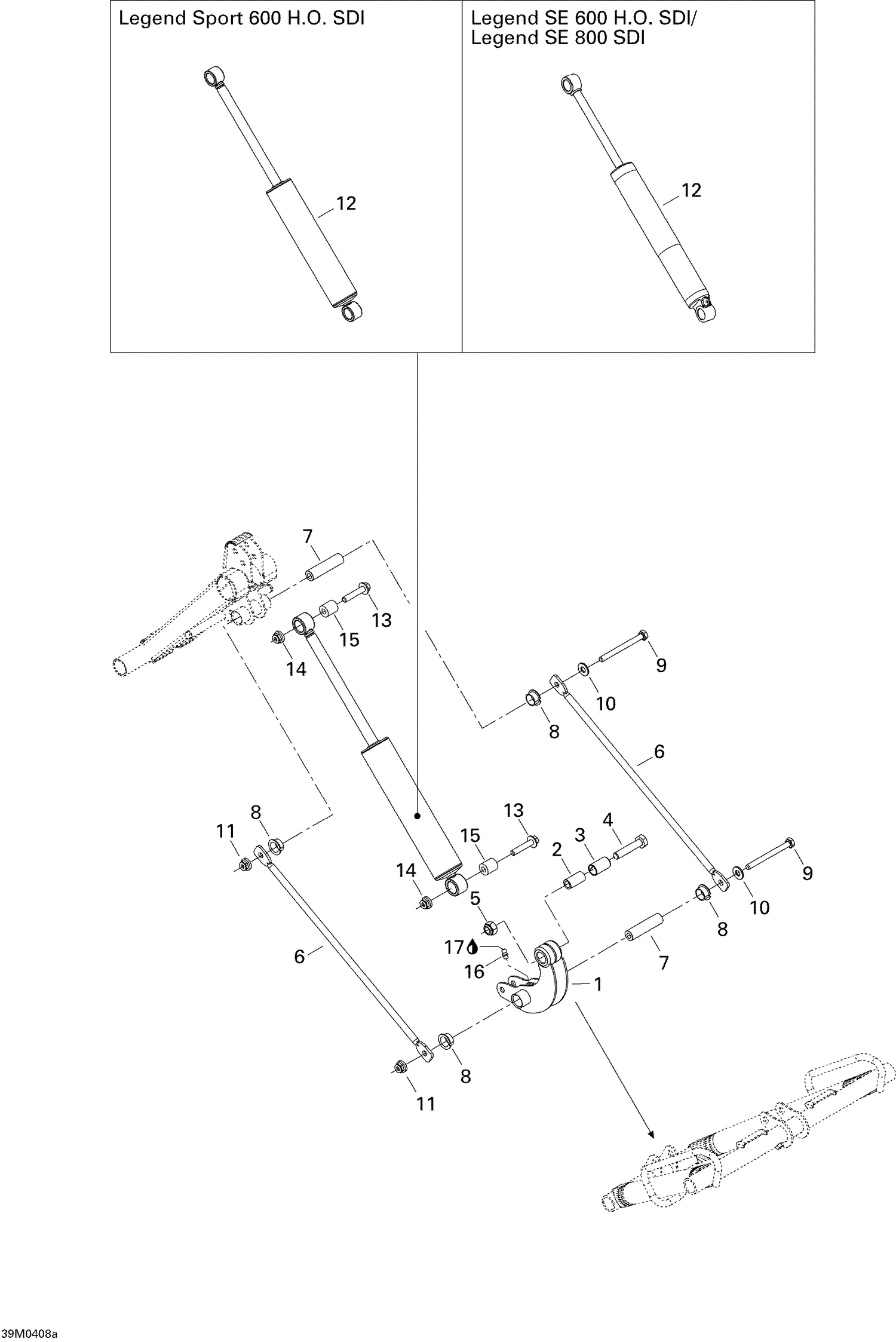

08- Rear Suspension Shock
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503189845 | Rocker |
| 2 | 503189388 | Rocker Axle |
| 3 | 503189626 | CUSHION - Call your local BRP dealership |
| 4 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 6 | 503189726 | THROTTLE ROD - Call your local BRP dealership |
| 7 | 503189815 | AXLE ROD - Call your local BRP dealership |
| 8 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 9 | 207088544 | HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 10 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 207684044 | Hex. Flange Screw M8 X 40 |
| 14 | 233281414 | Hex. Flange Elastic Nut M8 |
| 15 | 414936000 | Bushing |
| 16 | 408200700 | Grease Fitting |
