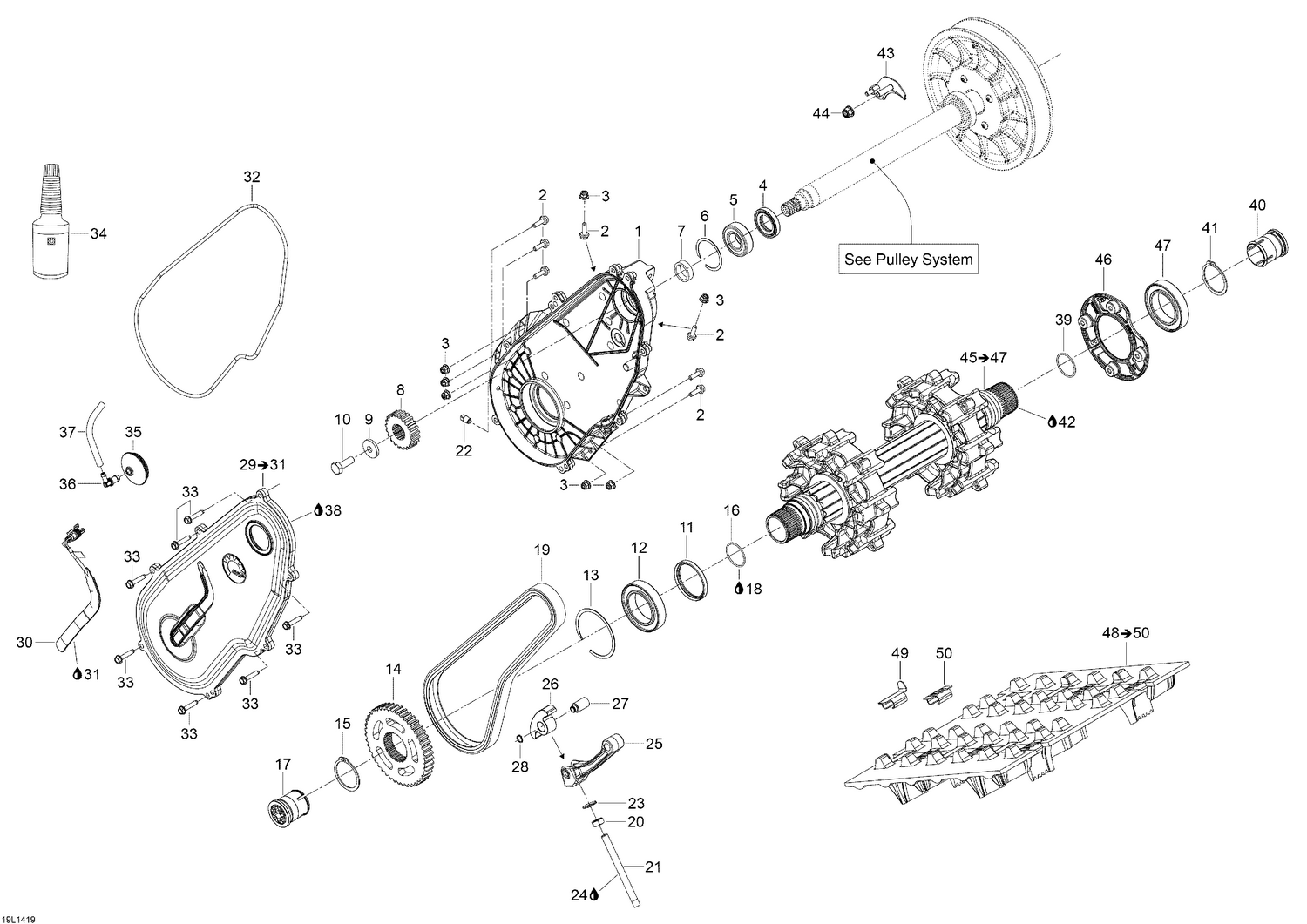

05- Drive System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504153181 | Chaincase |
| 2 | 207662034 | Hex. Flange Screw M6 x 20 |
| 3 | 233261434 | Flanged Elastic Nut M6 |
| 4 | 293200158 | Oil Seal This part replaces 415049300. |
| 5 | 293350115 | Ball Bearing This part replaces 293350055. |
| 6 | 504152576 | Circlip |
| 7 | 504152628 | Shim |
| 8 | 504153783 | Sprocket, 19 Teeth This part replaces 504152030. |
| 9 | 504152784 | Spring Washer M10 |
| 10 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 11 | 293200159 | Oil Seal This part replaces 504152571. |
| 12 | 293350059 | Ball Bearing |
| 13 | 504152582 | Circlip |
| 14 | 861805539 | Kit Sprocket This part replaces 504152581. |
| 15 | 504152572 | Circlip |
| 16 | 293300122 | O Ring |
| 17 | 504152619 | Magnetic Cap |
| 18 | Not | Available As Spare Part - Synthetic Grease |
| 19 | 504152629 | Drive Chain |
| 20 | 232006414 | Nut |
| 21 | 504152602 | Adjusting Screw |
| 22 | 504152854 | Magnetic Plug |
| 23 | 293200128 | Seal Ring |
| 24 | 619590098 | Chaincase Oil |
| 25 | 504153429 | Chain Tensioner This part replaces 504152685. |
| 26 | 504152739 | Chain Slider |
| 27 | 504152841 | Axle Tensioner |
| 28 | 504152282 | Circlip |
| 30 | 504152896 | Sensor |
| 31 | 293800066 | SEALANT LOCTITE SI 5900 - Call your local BRP dealership |
| 32 | 293300130 | O Ring |
| 33 | 250000360 | Hex. HD. Forming Screw M6 x 30 |
| 34 | 619590098 | Chaincase Oil |
| 35 | 504152860 | Cap |
| 36 | 414580700 | Male Connector |
| 37 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 38 | 619590098 | Chaincase Oil |
| 39 | 293300122 | O Ring |
| 40 | 504152619 | Magnetic Cap |
| 41 | 504152572 | Circlip |
| 42 | Not | Available As Spare Part - Synthetic Grease |
| 43 | 504153418 | Bearing Housing This part replaces 504152974. |
| 44 | 233281414 | Hex. Flange Elastic Nut M8 |
| 46 | 504153886 | Retaining Ring This part replaces 504152949. |
| 47 | 293350059 | Ball Bearing |
| 49 | 415129528 | Track Guide |
