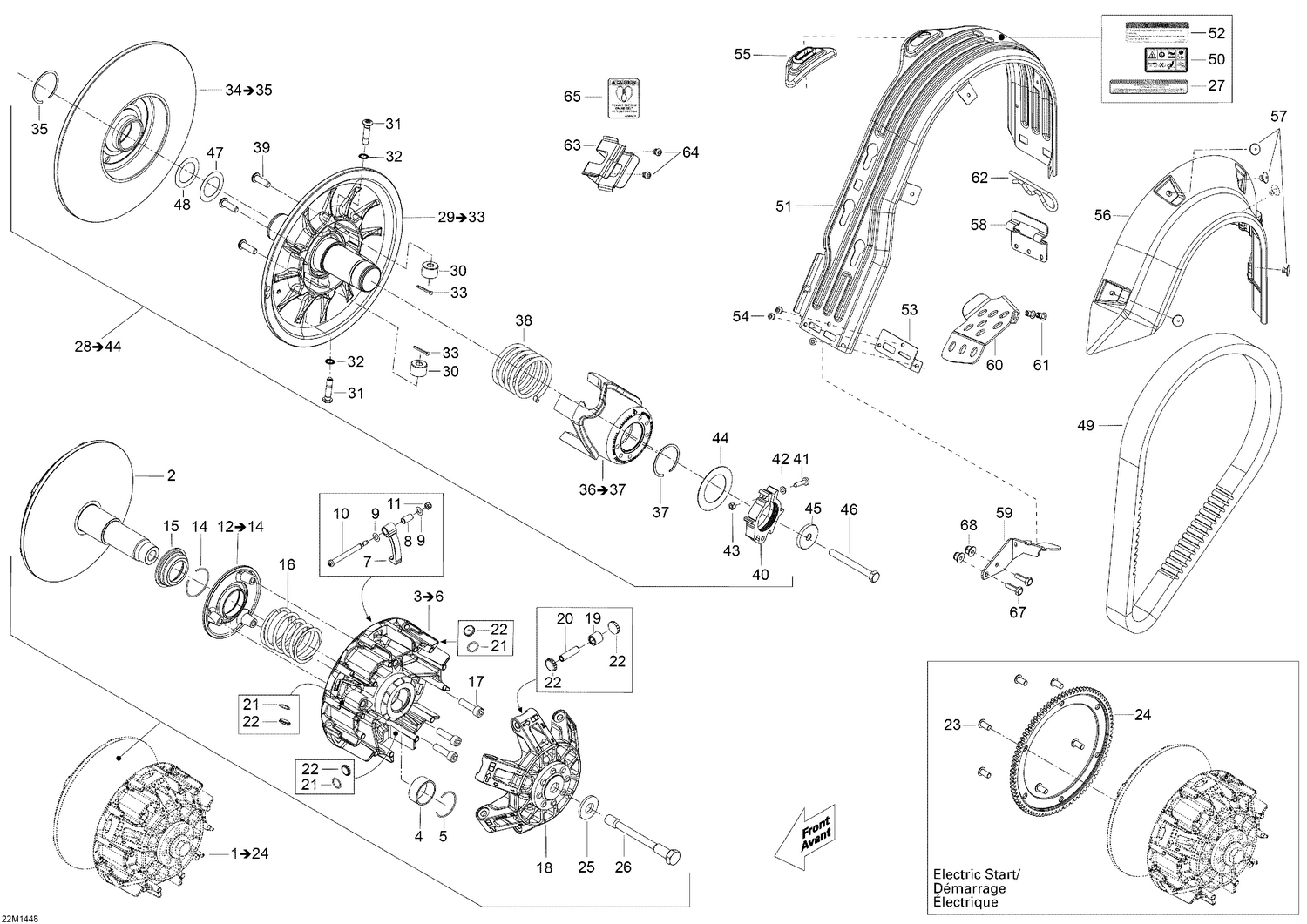

05- Pulley System
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Drive Pulley Ass'y |
| 2 | 417223534 | Fixe Flange Ass'y |
| 3 | 417223606 | Slider Flange Ass'y |
| 5 | 293370065 | Circlip |
| 7 | 417223604 | Ramp 700 Ass'y |
| 9 | 417223255 | Thrust Washer |
| 10 | 417223694 | Ramp Axle |
| 11 | 232551414 | Elastic Stop Nut M5 |
| 12 | 417223615 | Slider Adaptor Ass'y |
| 14 | 293370063 | CIRCLIP - Call your local BRP dealership |
| 15 | 417223155 | SPRING SEAT - Call your local BRP dealership |
| 16 | 417223315 | Spring Clutch |
| 17 | 250000473 | SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership |
| 18 | 417223778 | GOVERNOR CUP ASS'Y - Call your local BRP dealership |
| 19 | 417223767 | Roller |
| 21 | 293300185 | O-Ring This part replaces 293300169. |
| 22 | 417223919 | Slider Shoe |
| 23 | 250000751 | Torx Screw M8 X 16 This part replaces 250000243. |
| 24 | 417223476 | Crown Gear Launch |
| 25 | 250200144 | Conical Spring Washer M14 |
| 26 | 417300407 | DRIVE BOLT PULLEY - Call your local BRP dealership |
| 27 | 516005503 | Decal English |
| 28 | Not | Available As Spare Part - Driven Pulley Ass'y |
| 29 | 417127410 | Fixed Flange Ass'y |
| 30 | 417127189 | Roller |
| 31 | 417127294 | Pivot Stud |
| 32 | 250200009 | Lock Washer 8 mm |
| 33 | 250400063 | Spring Pin M3 X 30 |
| 34 | 417127366 | Slider Flange Ass'y |
| 35 | 293370049 | Circlip |
| 36 | 417127385 | CAM ASS'Y - Call your local BRP dealership |
| 38 | 417127243 | Spring, White |
| 39 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 40 | 415129604 | Calibration Ass'y |
| 41 | 205052544 | Socket Screw M5 X 25 |
| 42 | 234051410 | Flat Washer M5 |
| 45 | 517302322 | Strength Washer |
| 46 | 207287544 | Hex. Cap Screw M8 X 75 |
| 47 | 417300265 | Spacer |
| 48 | 504112000 | Shim |
| 49 | 414860700 | Drive Belt |
| 50 | 516003919 | Warning Decal |
| 51 | 417300382 | Belt Guard |
| 52 | 516004649 | Security label, Belt Guard |
| 53 | 417300380 | Reinforcement |
| 54 | 390909200 | Avex Rivet |
| 55 | 417300381 | Guide |
| 56 | 417300356 | Side Protector |
| 57 | 293150103 | Pop Rivet 3/16" |
| 58 | 417300413 | Belt Guard Bracket |
| 59 | 417300451 | BELT GUARD BRACKET - Call your local BRP dealership |
| 60 | 518327035 | Brake Hose Cover |
| 61 | 293150163 | Rivet Hucklok |
| 62 | 114045200 | Hair Pin |
| 63 | 517281905 | Bracket |
| 64 | 390909100 | Avex Rivet |
| 65 | 516007493 | Belt Gard Decal This part replaces 516005511. |
| 67 | 207162044 | Hex. Screw M6 X 20 |
