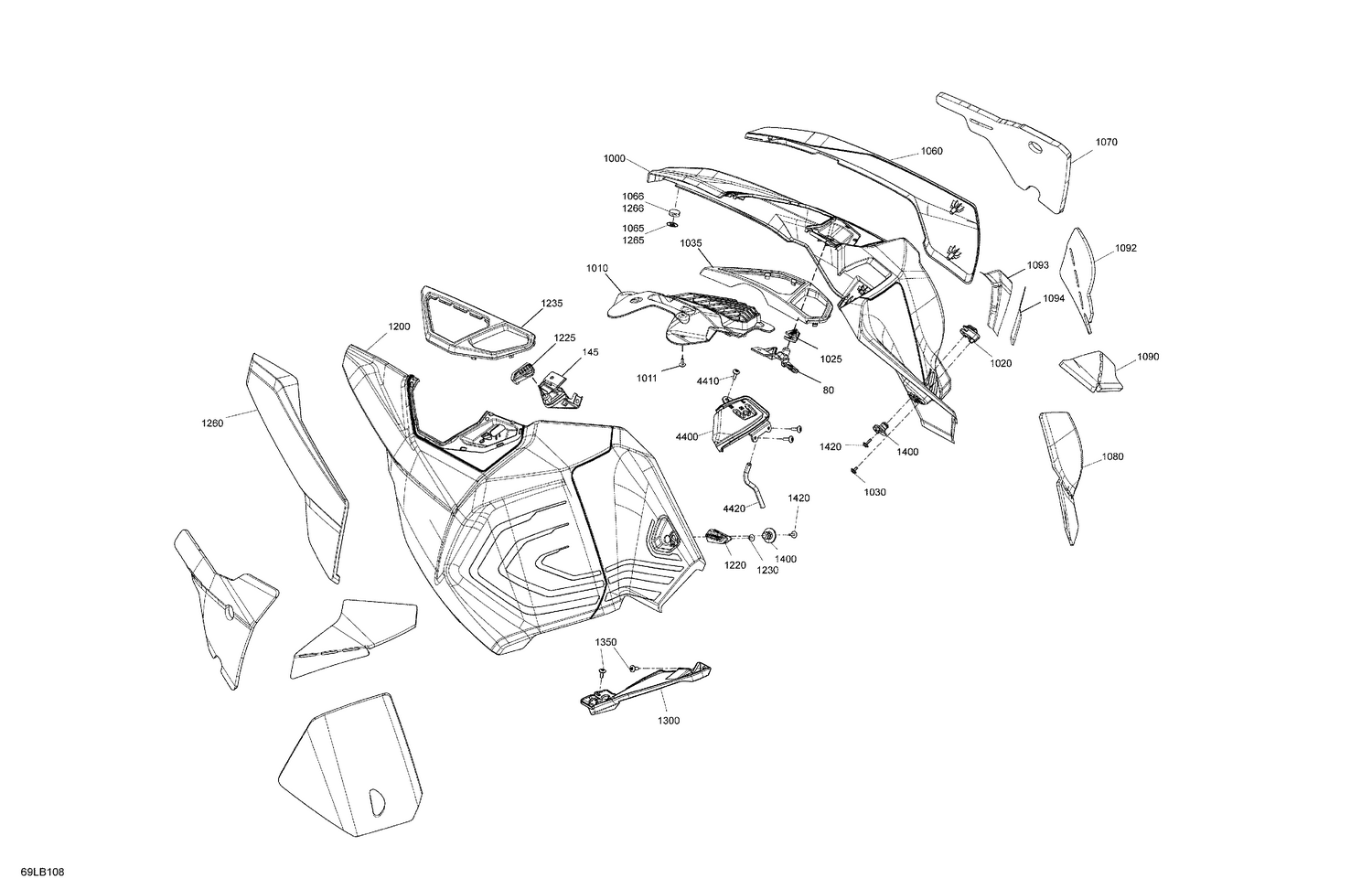

07- Body - Side Panels
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 517306450 | RH Knob Part |
| 145 | 517306451 | LH Knob Part |
| 1000 | 517307004 | RH Side Panel 20" With Wing Hole |
| 1010 | 517306706 | RH Grille |
| 1011 | 250000725 | Screw M4 X 16 |
| 1020 | 517305773 | RH Rear Latch |
| 1025 | 517305773 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1035 | 517308027 | LH Large Trim |
| 1060 | 517308063 | RH Air Deflector |
| 1065 | 508000853 | Push Nut |
| 1066 | 517306809 | Rubber Damper |
| 1070 | XXX | Not Available As Spare Parts |
| 1080 | XXX | Not Available As Spare Parts |
| 1090 | XXX | Not Available As Spare Parts |
| 1092 | XXX | Not Available As Spare Parts |
| 1093 | 517307537 | Heat Shield |
| 1094 | 517307538 | Heat Shield |
| 1200 | 517307003 | LH Side Panel 20" With Wing Hole |
| 1220 | 517305774 | LH Rear Latch |
| 1225 | 517305774 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1235 | 517308028 | LH Large Trim |
| 1260 | 517308064 | LH Air Deflector |
| 1265 | 508000853 | Push Nut |
| 1266 | 517306809 | Rubber Damper |
| 1300 | 517307359 | LH Snow Deflector |
| 1350 | 250000721 | Torx Truss Screw M6 X 16 |
| 1400 | 517305985 | Rear Stud |
| 1420 | 250000725 | Screw M4 X 16 |
| 4400 | 517306818 | Shift Lever Grille |
| 4410 | 250000528 | Torx Screw M5 X 20 |
