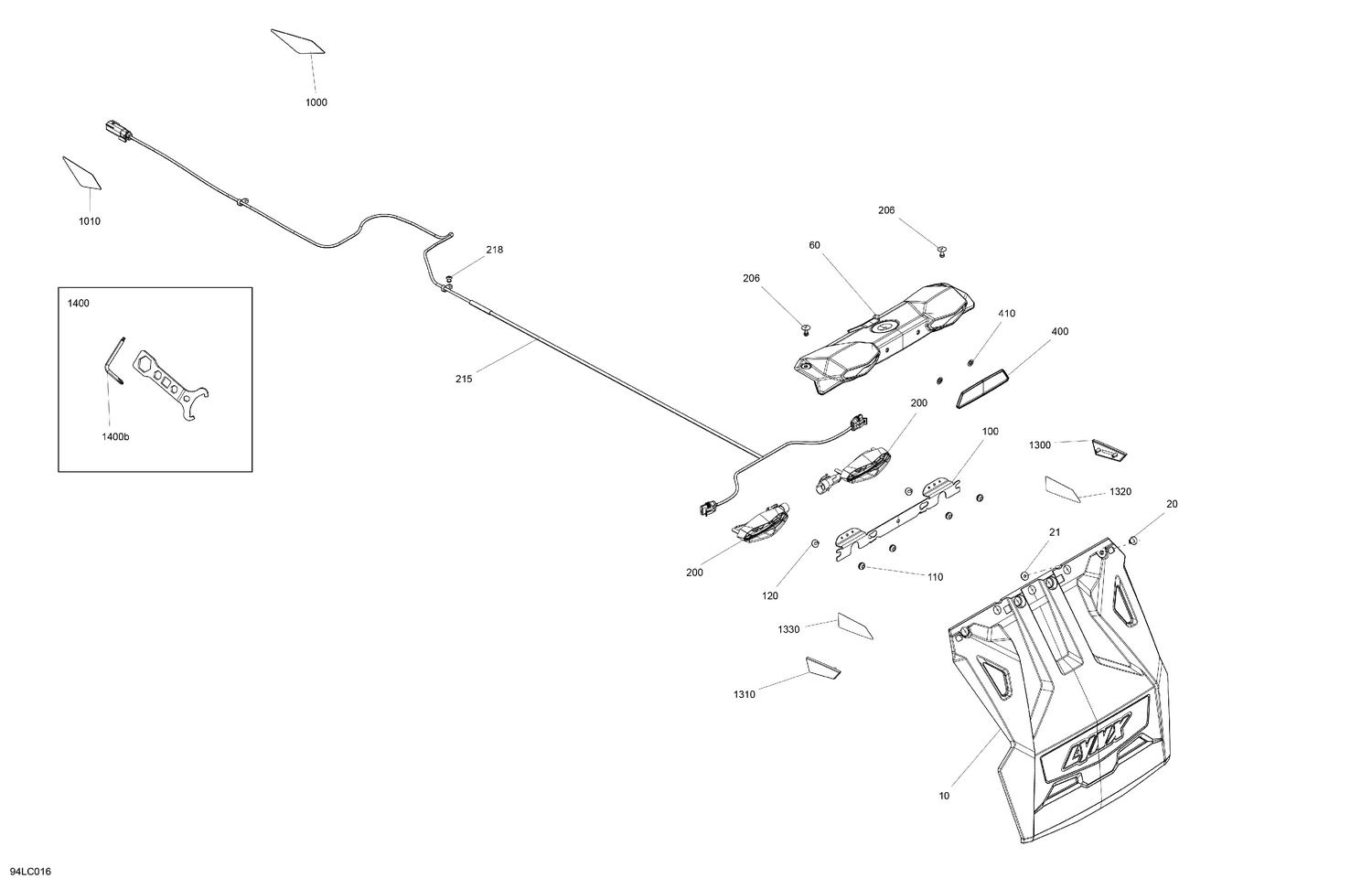

09- Miscellaneous - Utilities
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001886 | Snow Guard |
| 20 | 293150104 | Pop Rivet 3/16 |
| 21 | 517124300 | Washer |
| 60 | 520001701 | Light Fairing |
| 100 | 520001773 | Rear Light Support Plate |
| 110 | 293720101 | Grommet |
| 120 | 250000805 | Plastite Screw M4 X 10 |
| 200 | 520002636 | Tail Light |
| 206 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 215 | 515179338 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16 |
| 400 | 705015952 | Rear Reflector |
| 410 | 732610072 | Push Nut |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1300 | 705016308 | Réflecteur DR |
| 1310 | 705016309 | Réflecteur GA |
| 1320 | 520002649 | RH Support Tape |
| 1330 | 520002650 | LH Support Tape |
