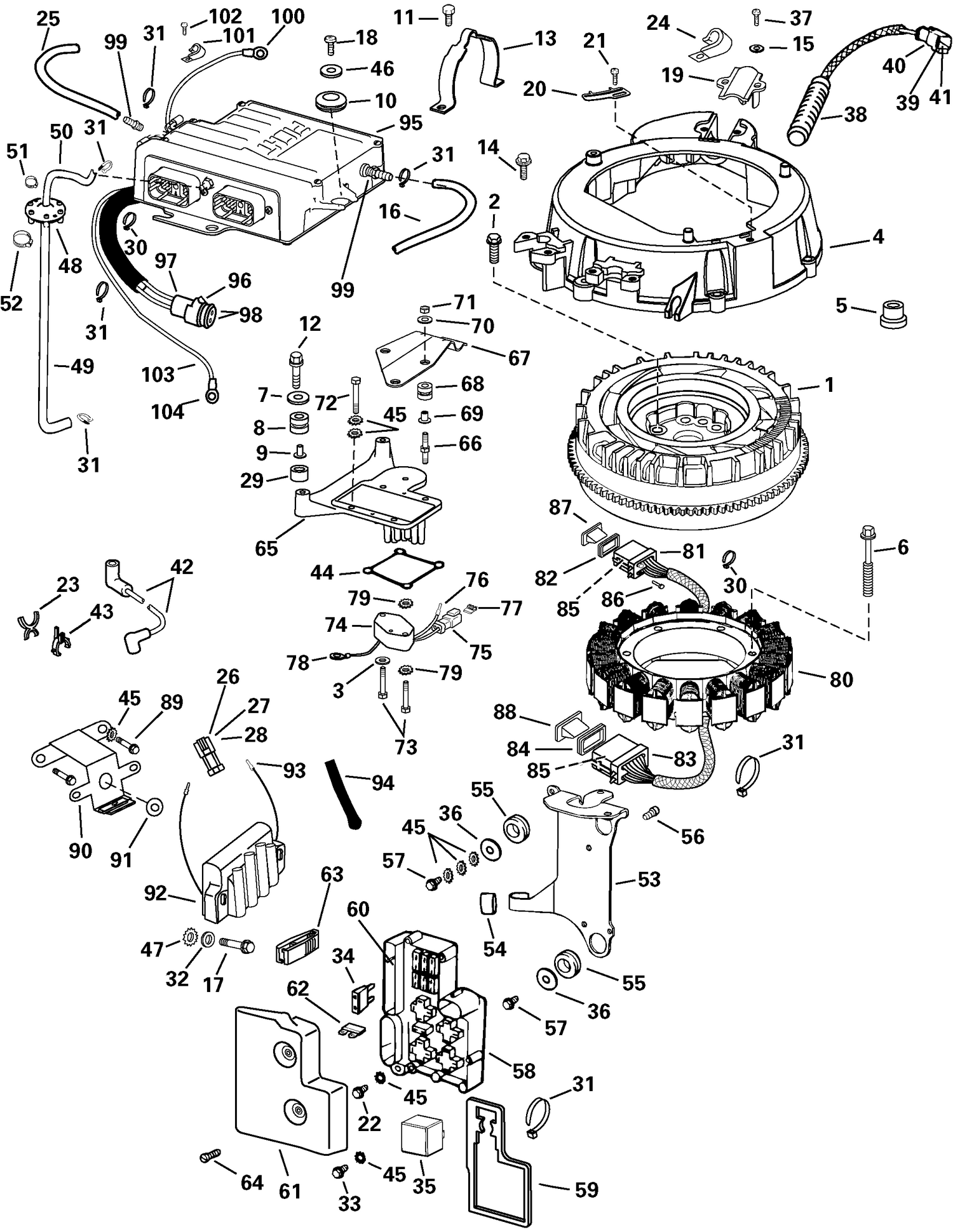

| Ref | Part Number | Description |
|---|
| 1 |
0586526 |
FLYWHEEL Assy |
| 2 |
0336135 |
SCREW, Flywheel |
| 4 |
5004519 |
COVER Assy, Flywheel |
| 6 |
0343525 |
SCREW, Stator |
| 12 |
0324814 |
ECREW,Exhaust cover,1-1/2"long |
| 13 |
0514891 |
CLAMP, Capacitor |
| 14 |
0909533 |
SCREW, Pressure relief valve cover |
| 16 |
0344789 |
HOSE, ECU to 30ø fitting |
| 19 |
0343468 |
COVER, Sensor |
| 23 |
0350056 |
RETAINER, High Tension Lead |
| 24 |
0330151 |
CLAMP, Harness to oil tank boss |
| 25 |
0344794 |
HOSE, Water to EMM from vapor sep |
| 26 |
0176509 |
CONNECTEUR, 4 broches |
| 28 |
0127468 |
CALE VERROUILLAGE, connecteur 4 broches |
| 29 |
0335328 |
SCREW, Connector |
| 31 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 38 |
0586523 |
SENSOR Assy, Crank position |
| 42 |
5005810 |
LEAD Assy, Ignition coil This part replaces 5004960. |
| 43 |
0350071 |
RETAINER, High Tension leads (Clip to injector 1 and 2 screw sleeves) |
| 46 |
0336316 |
WASHER, screw, bracket to hood |
| 48 |
5001301 |
DIAPHRAGM & HOSE Assy, Exhaust |
| 53 |
0514867 |
BRACKET, Fuse assy. |
| 54 |
0343598 |
BUMPER, Bracket to block |
| 58 |
0586754 |
POWER DISTRIBUTION PANEL |
| 65 |
3010815 |
BASE PLATE |
| 66 |
0346547 |
BOLT, Double-ended |
| 67 |
0346538 |
BRACKET, Capacitor mounting |
| 72 |
0328695 |
CLAMP, Engine cable |
| 73 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter |
| 74 |
0586546 |
FILTER Assy |
| 80 |
0586514 |
STATOR Assy |
| 90 |
5004964 |
COIL, Bracket |
| 92 |
0586738 |
COIL ASSY, Dual |
